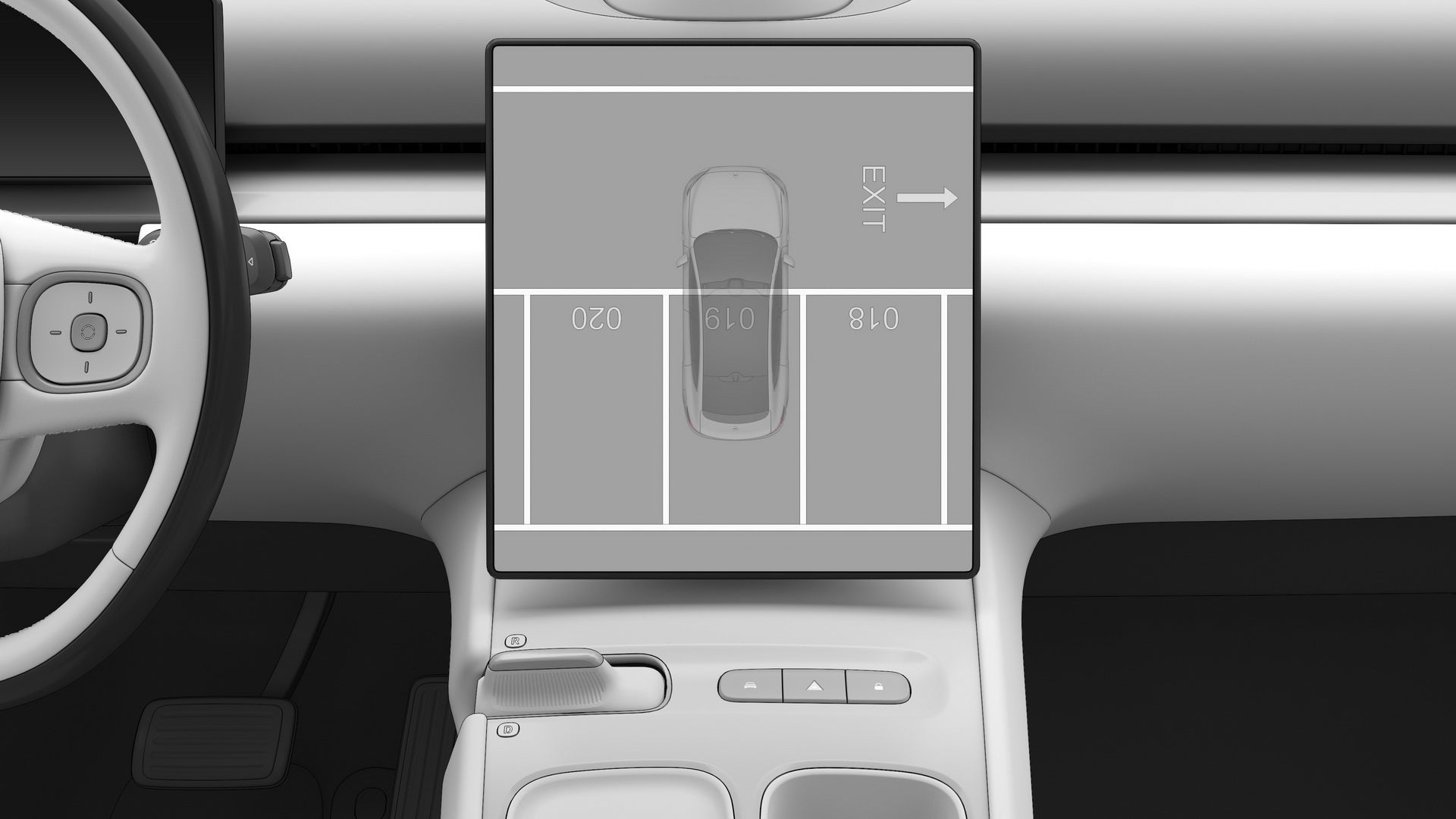

To find the vehicle when it is far away

You, or the authorized user, can check the parking location information of the vehicle in the mobile app to experience the convenience of finding the vehicle. When the vehicle is connected to the network, you can check the current location where the vehicle is parked in the upper left corner of the “My Vehicle” page in the mobile app. Tap this location information to view the current location of the vehicle on the map page.

To find the vehicle when it is nearby

When the vehicle is not driving and the valid key is within 70 meters of the vehicle, press the lock button on the smart key twice within a span of 3 seconds, and the vehicle horn will emit a sound and the turn lights will flash to alert you of the precise location of the vehicle. Pressing this button again after 5 seconds will cancel the Find My Car prompting, otherwise the vehicle-finding feature will be automatically turned off after 10 seconds.

When the Bluetooth key feature of the mobile phone is turned on or the vehicle is connected to the network, you can also tap the “Find My Car” button on the “My Vehicle” page in the mobile app to search for the vehicle, which will trigger the vehicle’s horn to emit a sound and the turn light to flash. Press this button again to cancel the Find My Car prompting.

Before entering the vehicle, you can unlock it with the smart key fob. The maximum effective range of the smart key fob is 30-70 meters away from the vehicle and may vary with the status of the smart key fob.

The smart key fob has the following buttons:

1. Unlock

   When the vehicle is in PARK, press the button to unlock the vehicle. If successful, the turn signals will flash three times, and the exterior door handles will extend automatically.

   When all four doors are unlocked with the smart key fob, the tailgate can be opened from the outside without a key.

   To open all windows, press and hold the lock button. The windows will stop moving after you release the button.

   You can set the unlocking mode for your smart key fob on the center display. Enter Settings from the bottom of the center display, and tap Doors & Windows > Vehicle Unlock Mode. Choose "All" to unlock all doors at once by pressing the smart key fob. Choose "Driver" to unlock the driver's door first by pressing the smart key fob once, and then the remaining three doors by pressing the smart key fob again.

2. Lock

   When the vehicle is in PARK and all doors (including the hood and the tailgate) are closed, short press the button to lock the vehicle. If successful, the turn signals will flash once, and the vehicle's horn will honk once. Meanwhile, the exterior door handles will retract, and the side mirrors will fold automatically (to turn on the side mirror auto-fold, enter Settings from the bottom of the center display, and tap Driving > Side Mirrors > Auto Fold On Lock).

   After locking, the tailgate can only be opened from the outside using the smart key fob.

   To enable/disable the lock confirmation sound, enter Settings from the control bar at the bottom of the center display, and tap Sound > Ringer & Alerts > Lock Sound.

   To close all windows, press and hold the lock button. The windows will stop moving after you release the button.

   When the vehicle is not being driven and the authenticated key fob is within 70 meters of the vehicle, press the button twice in a row within three seconds. The vehicle's horn will honk, and the turn signals will flash to indicate the vehicle's location. Press the button again after 5 seconds to clear the location prompt. Otherwise, the location prompt will turn off automatically after 10 seconds.

   When all the doors are closed, you can press the lock button on the smart key fob outside the vehicle to lock the vehicle. The turn signals will flash once, and the horn will honk once to indicate that the vehicle is locked. If there are doors left open, you are not able to lock the vehicle by pressing the lock button. You will receive a message reminding you that your vehicle was not successfully locked.

3. Tailgate

   When the tailgate is closed, press and hold the button to open the tailgate. After the tailgate is opened, press and hold the button again to close the tailgate.

When the vehicle is in PARK, you can enter Settings from the bottom of the center display, and tap Doors & Windows > Auto Window Closing to set auto window closing upon vehicle lock. When you lock the vehicle from the outside (with a smart key fob, NFC, NIO app, keyless locking, or Walk-Away Lock), all the windows will close automatically with anti-pinch protection engaged. When the windows are closing, if you press the lock button on the key fob or mobile app, the windows will stop closing.

The smart key fob uses a CR2477 coin cell battery. To replace the battery, please pinch the sides of the key fob firmly between fingers, and slide your fingernail or a thin plastic sheet from the bottom gap along the side slit of the key fob until the rear cover can be opened.

Dispose of used batteries according to instructions and local laws. Please see the NIO website for details.

Install the coin cell battery with the positive terminal facing down. After installing, align the battery's contacts, and then close the rear cover properly to ensure proper use of the key fob.

You can unlock or lock the vehicle with the lock button on the center console.

When the vehicle is fully unlocked and all doors are closed, press the lock button on the center console to lock the vehicle. The center display will display the locked status of the vehicle, and the LED on the button will light up green.

When the vehicle is fully locked (not from the outside) or only the driver’s door is unlocked, press the lock button on the center console to unlock the vehicle. The center display will display the unlocked status of the vehicle, and the LED on the button will go off.

To Unlock/Lock the Vehicle from Outside in an Emergency

When the vehicle cannot be unlocked or locked using the above conventional methods from the outside, you can use the physical emergency key to unlock or lock the driver’s door.

When the battery of the vehicle is depleted, the physical emergency key can only lock the driver’s door. If you want to lock the other doors, toggle down the door lock hole, and simply close the door to lock it. However, in such a situation, the door cannot be opened from the outside.

Emergency Unlocking from Inside

When the whole vehicle is locked, if you need to open the door in an emergency (such as when the door handle electronic switch fails, or the vehicle is soaked in water), pull the mechanical switch off the inner door handles once to open the corresponding side door.

Easy Entry and Exit for the Driver

You can set the most convenient exit position on the center display: when the vehicle is stationary and put in Park, and when you open the driver’s door intending to get out of the vehicle, the driver’s seat will automatically move to the exit position you set (including the vertical and horizontal position of the seat cushion, and the angle of the backrest), and the steering wheel will automatically move to the topmost position to provide you with convenient access for you to get out, and to get in next time.

You can turn this feature on/off on the center display: enter the Settings page from the control bar at the bottom of the center display, and tap Position Adjustment > Driver’s Seat > Easy Entry and Exit. You and the authorized users can set up exit positions under your respective accounts. After manually adjusting the exit position for the driver’s seat, tap Position Adjustment > Driver’s Seat > Position Memory > Exit Position, and the current position setting will be saved under this account. Every time the driver’s door is opened or the seat belt is released (can be set up on the center display), the driver's seat will automatically move to the exit position saved under this account.

Easy Entry and Exit for the Front Passenger

When the vehicle is stationary and put in Park, and when you open the front passenger door, the front passenger seat will automatically move to the default position (where the seat cushion and the angle of the backrest are in a relatively rearward location, and the leg support automatically moves to the lowest position) to provide the front passenger with an easy exit and entry.

You can turn this feature on/off on the center display: enter the Settings page from the control bar at the bottom of the center display, and tap Position Adjustment > Front Passenger Seat > Easy Entry and Exit. There are two settings for Easy Entry and Exit:

• Exit only: by unfastening the seat belt or opening the front passenger door (which can be set up on the center display), the seat will automatically move to the default position; while the passenger gets in the vehicle and closes the front passenger door, the seat will not change and will remain in the position it was in when the passenger got out the last time.

• Exit + Entry: by unfastening the seat belt or opening the front passenger door, the seat will automatically move to the default position; when the passenger gets in the vehicle and closes the front passenger door, the seat will automatically move to the usual position set under the corresponding account (to be set up on the center display under Front Passenger Seat > Position Memory).

Automatic Lowering of Ride Height

After locking, the vehicle suspension can automatically be lowered to the lowest body height, making it convenient for you to enter the vehicle and take a seat or luggage next time. When driving, the suspension will automatically rise to the height corresponding to the drive mode.

You may go to the Settings page on the leftmost side of the control bar at the bottom of the center display, and tap Driving > Suspension Easy Entry to turn this feature on/off.

Opening and Closing the Tailgate by Pressing the Button

When you carry the smart key, lightly press the pressure plate on the handle of the tailgate to open the tailgate.

During the opening of the tailgate, press and hold the tailgate button for a few seconds, and the height of the tailgate at that moment can be automatically memorized.

Your vehicle is equipped with a one-button tailgate closing feature.

Press the button on the tailgate to automatically close and lock the tailgate, and you will hear a “click” to confirm the closure.

Opening and Closing the Tailgate with the Center Display

Swipe right on the left edge of the center display to enter the Quick Settings page, then touch Rear Trunk to open the rear trunk.

Opening the tailgate: press and hold Press and Hold to Open, and the tailgate will open automatically.

Closing the tailgate: press and hold Press and Hold to Close, and the tailgate will close automatically.

During the opening or closing of the tailgate, tap the tailgate opening or closing button, and the movement will stop.

Opening and Closing the Tailgate with the Smart Key

Opening the tailgate: press and hold the tailgate button on the smart key, and the tailgate will open automatically.

Closing the tailgate: press and hold the tailgate button on the smart key, and the tailgate will close automatically.

Opening and Closing the Tailgate in the Mobile APP

When the vehicle is put in Park and the doors are closed, you can open the My Vehicle interface in the NIO mobile app, and tap the Rear Trunk button to open the tailgate. It will prompt you that rear trunk has been opened. Tap the highlighted Rear Trunk button again to close the rear trunk. If it is blocked during the closing process, it will prompt you that the rear trunk has failed to close.

Opening and Closing the Tailgate by a Kicking Action

When your hands are occupied or it is inconvenient for you to take out the key, you can open the tailgate by kicking under the rear bumper.

In the middle of the rear bumper, lift a foot up close to the rear bumper and kick the forefoot into the rear bumper at least 10 cm deep, then retract quickly to open the tailgate; or sweep your forefoot sideways from one side to the other at least 10 cm below the rear bumper to open the tailgate.

You must have your Bluetooth mobile key or smart key with you to open the tailgate with a kicking action.

This feature may be temporarily disabled in situations that include but are not limited to the following:

• Frequent opening and closing

• A lingering leg

• When the kicking is not within the valid detection range

If the tailgate does not respond, wait a few seconds and try again, or use other methods to open or close the tailgate.

Opening and Closing the Tailgate Manually

In the event of an electrical failure, if the tailgate is not opened/closed properly, you need to manually open/close the tailgate in a slow and smooth motion.

Anti-pinch Protection of the Tailgate

Your vehicle is equipped with tailgate anti-pinch protection.

If an obstacle restricts the movement of the tailgate during automatic opening or closing, the opening or closing motion will stop and the anti-pinch feature will be activated.

• The opening process is interrupted, the tailgate stops and you will hear a long warning tone.

• The closing process is interrupted, the tailgate stops, a long warning tone sounds, and the tailgate rises again for a certain distance.

Charging Process

1. Put the vehicle in Park, press the charge port cover to open it, or swipe right on the main page of the center display to enter Quick Setting and tap Charge Port, and the charge port cover will automatically open. The indicator of the charge port will light up white.



   Caution 充电口饰板旋转运动过程中请勿用力拨动，以免损坏充电口饰板。打开充电口盖时请确保已关闭车辆高压电源。

   Do not forcefully adjust the charge port cover when it is active or open. Doing so may damage the cover.

2. Check whether the charging connector and charging equipment are in good condition, align the charger to the charge port of the vehicle, then the charger and the charge port will start matching: if the indicator of the charge port flashes and then lights up blue, the charge port is working properly; if the matching fails or times out, the blue light of the charge port will flash blue and then go out, and you will need to connect the charger again.



3. Turn the charging equipment on and start charging. You can check the current charging status by tapping My EL7 > Battery on the main page of the center display, or via mobile app. The indicator light of the charge port should be blue during charging to indicate that it is charging.

4. If you are to manually stop charging midway, tap My EL7 > Battery on the main page of the center display after the vehicle is fully unlocked to stop charging, and wait for the indicator of the charge port to light up green to unplug the charger.

   When the charging is complete, press the unlock button of the charger before unplugging the charger.



   Caution In the process of DC fast charging, you can unlock the vehicle first, and then press and hold the OFF button at the charging port to manually stop charging.

   • In the process of DC fast charging, you can unlock the vehicle first, and then press and hold the OFF button at the charging port to manually stop charging.

   • When inserting and removing the charger, please face the charging socket. If the charger is stuck, try to lift it slightly. Do not forcibly shake the charger while inserting or removing it to prevent the charger or charging socket from being damaged.

5. If the indicator of the charge port flashes red during charging, switch to another charge post and try again. If the indicator light is still flashing red, stop charging immediately and contact the NIO Service Center.



6. After unplugging and putting away the charger, press down on the charge port cover, press the charge port close button, or tap Charge Port on the center display, and the charge port cover will be automatically closed.



   Note 使用蔚来家充桩充电时，充电口饰板将在充电枪从桩上拔下时自动打开，在充电枪从车辆拔下后自动关闭。如充电口饰板自动旋转关闭过程中卡滞在充电枪上，可长按5秒钟充电口关闭按钮，此时充电口饰板将自动打开。

   When charging the vehicle using NIO Power Home, the charge port cover will automatically open when you take off the charging connector from the charger and will automatically close when you remove the connector from the vehicle. If the charge port cover catches the charging connector while closing automatically, press and hold the Close button for five seconds, after which it will open automatically.

Low-temperature Charging Preconditioning

The Low-temperature Charging Preconditioning function is enabled by default. You can go to the Settings page from the far left side of the control bar at the bottom of the center display, and select to enter the Battery interface to disable the function. After this function is enabled, when the destination or waypoint in the navigation state is the charging station , the vehicle will automatically start the high voltage battery preconditioning on the premise that it can ensure arrival at the destination, so as to improve the charging efficiency. Low-temperature charging preconditioning only advances the battery warming step and does not waste additional charging energy.

In the navigation state, the low-temperature charging preconditioning function will be automatically activated under the following conditions. The current preconditioning status will be displayed on the status bar at the top of the center display:

• The navigation destination or waypoint is a Charging Station , or a service area with a Charging Station .

• The driver is seated.

• The current driving range is more than 120 km.

• The vehicle is not in ECO+ mode.

You can manually disable the low-temperature charging preconditioning function by selecting "Disable This Time" (enabled by default next time) or "Keep Disabled".

This function will automatically deactivate the preconditioning process (the switch remains on) in one of the following conditions:

• Connect a charger.

• Turn off the navigation or stop navigating to the Charging Station .

• The current driving range does not support a preconditioning to the destination with 20 km remaining.

• The vehicle enters ECO+ mode.

Manual Charging Preconditioning

The Manual Charging Preconditioning function is disabled by default. If you are familiar with the charging route and do not need to follow the navigation guide to the charging point, it is recommended to enter the Battery interface on the center display in a low temperature environment and enable the manual charging preconditioning function. The vehicle will enable the high voltage battery preconditioning to improve charging efficiency.

You can enable or disable the manual charging preconditioning function on the center display . The status bar at the top of the center display displays the current preconditioning status.

This function will automatically deactivate the preconditioning process (the switch is off now) in one of the following conditions:

• Connect a charger.

• The low-temperature charging preconditioning function is enabled.

• The battery has been warmed up to the set temperature and maintained for 1 hour.

• The vehicle enters ECO+ mode.

NIO Smart Charging

Feature can be activated in vehicle settings and will be remembered in this location.

Tibber Smart Charging

User needs to subscribe to the Tibber electricity contract and have a smart meter at home. Activation is possible with every AC charging station/ home charging cable.

How does it work:

1. User subscribes to Tibber.

2. User is onboarded by Tibber, opens the App.

3. User activates the Power-Up "Nio" in the Tibber App.

4. User logs in once with the NIO credentials.

5. User sets the departure times per weekday day in Tibber App.

6. Vehicle charging at the Tibber Home location will be controlled by Tibber from now on.

7. User can always control the charging in the Tibber App. To stop Tibber from controlling your vehicle altogether - go to the Power-ups section in the Tibber app and disconnect the Nio Power-up. Or contact the Tibber support.

Specifically for problems (App doesn't work, charging doesn't work, etc...) or general questions (how do I sign up, when will my account be active, etc...), please direct them to the local Tibber.com, which redirects to the local website.

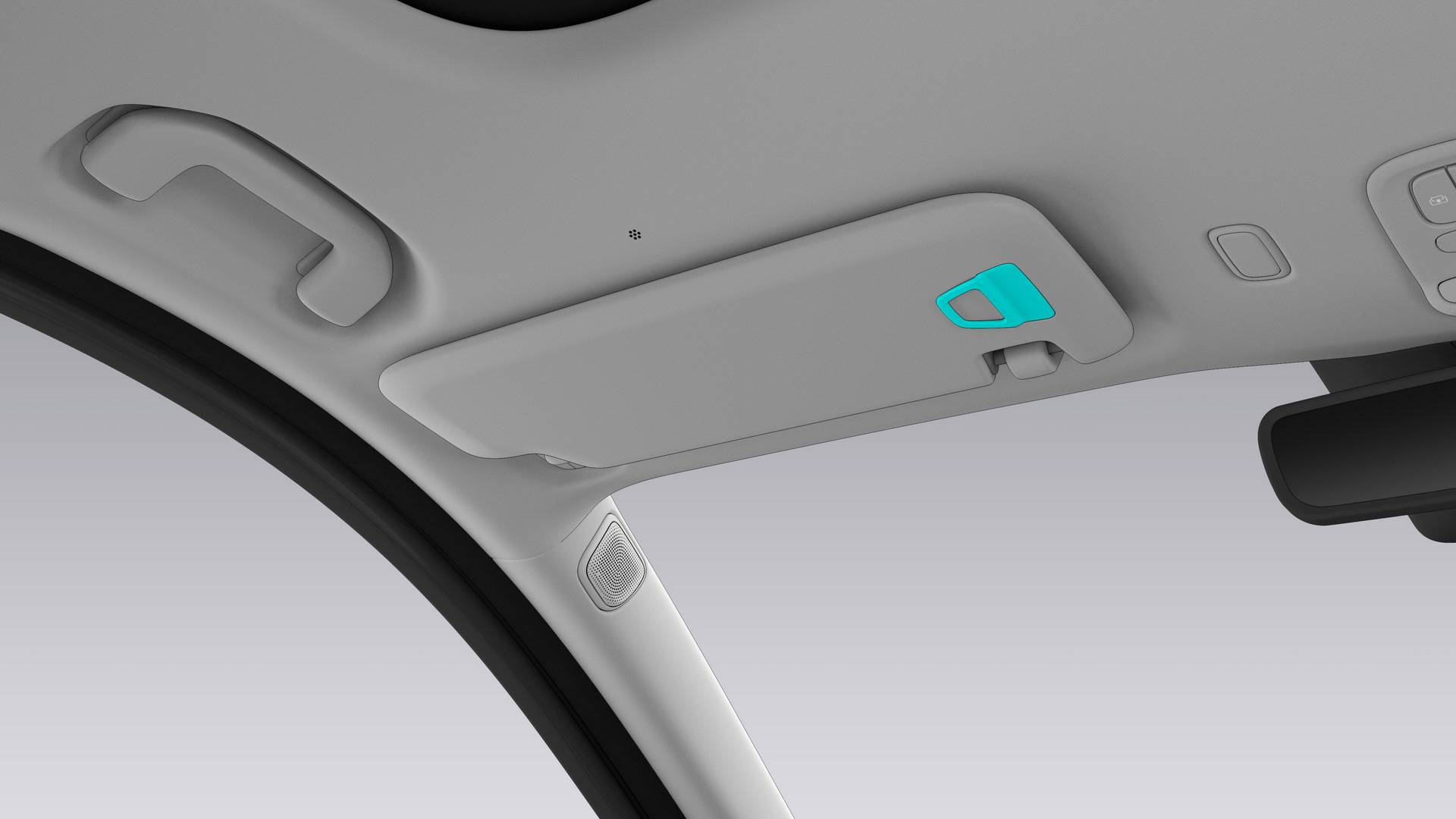

Auto Control of Reading Lights

When you unlock the whole vehicle or open any door (including the tailgate), the interior reading lights will automatically light up to illuminate the inside of the vehicle. The reading lights will automatically turn off in one of the following situations, by then you can manually turn the reading lights on by touching the reading light touch switch on the roof:

• Driving

• Locking the vehicle from the outside

• 10 minutes after the door is opened

• 15 seconds after all doors are closed

Enter the Settings page from the control bar at the bottom of the center display, and tap Lighting > Auto Reading Lights to control the automatic turning on of the reading lights.

Manual Control of Reading Lights

You can turn the interior reading lights on manually to provide lasting illumination for the passenger compartment for you to tidy up, and read maps or documents. There are touch switches to control the reading lights on the roof. By touching the reading light switch, you can control the turning on/off of each reading light separately. There is also a master switch for controlling all the reading lights on the center display. You can enter the Settings page from the control bar at the bottom of the center display, and tap Lighting > Reading Lights to turn all interior reading lights on/off at the same time with this master switch.

When you lock the vehicle from the outside (using the smart key or mobile app feature), all interior reading lights will be turned off at the same time.

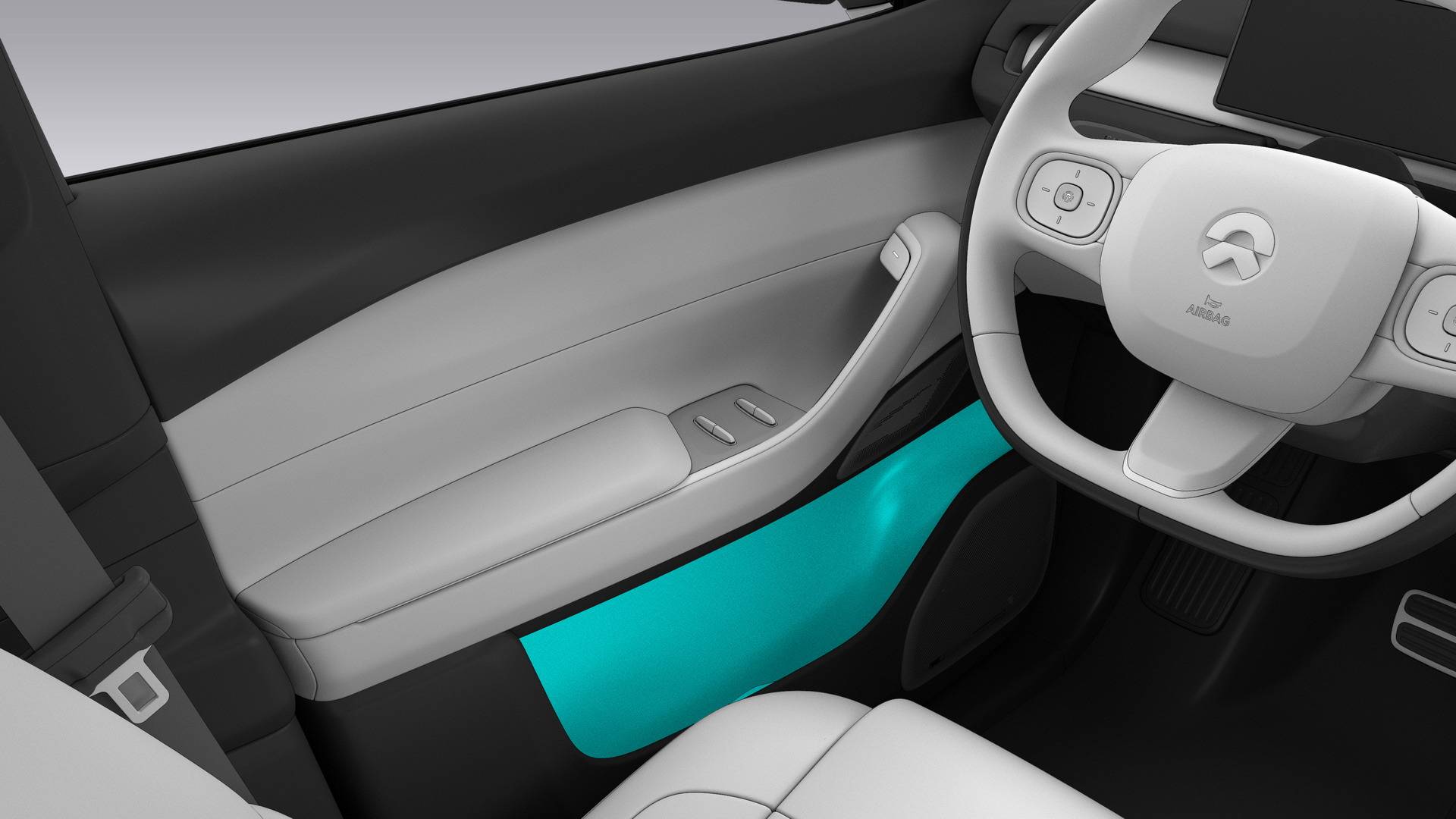

There is a puddle light under each of the four vehicle doors, providing convenience for entry and exit at night; there are also two puddle lights on the tailgate to help you see the ground conditions clearly (such as mud pits, water puddles, etc.) when putting things away.

By opening the door or tailgate, the corresponding puddle light will be turned on. The puddle light will go out 10 minutes after the door is opened, or when the door is closed.

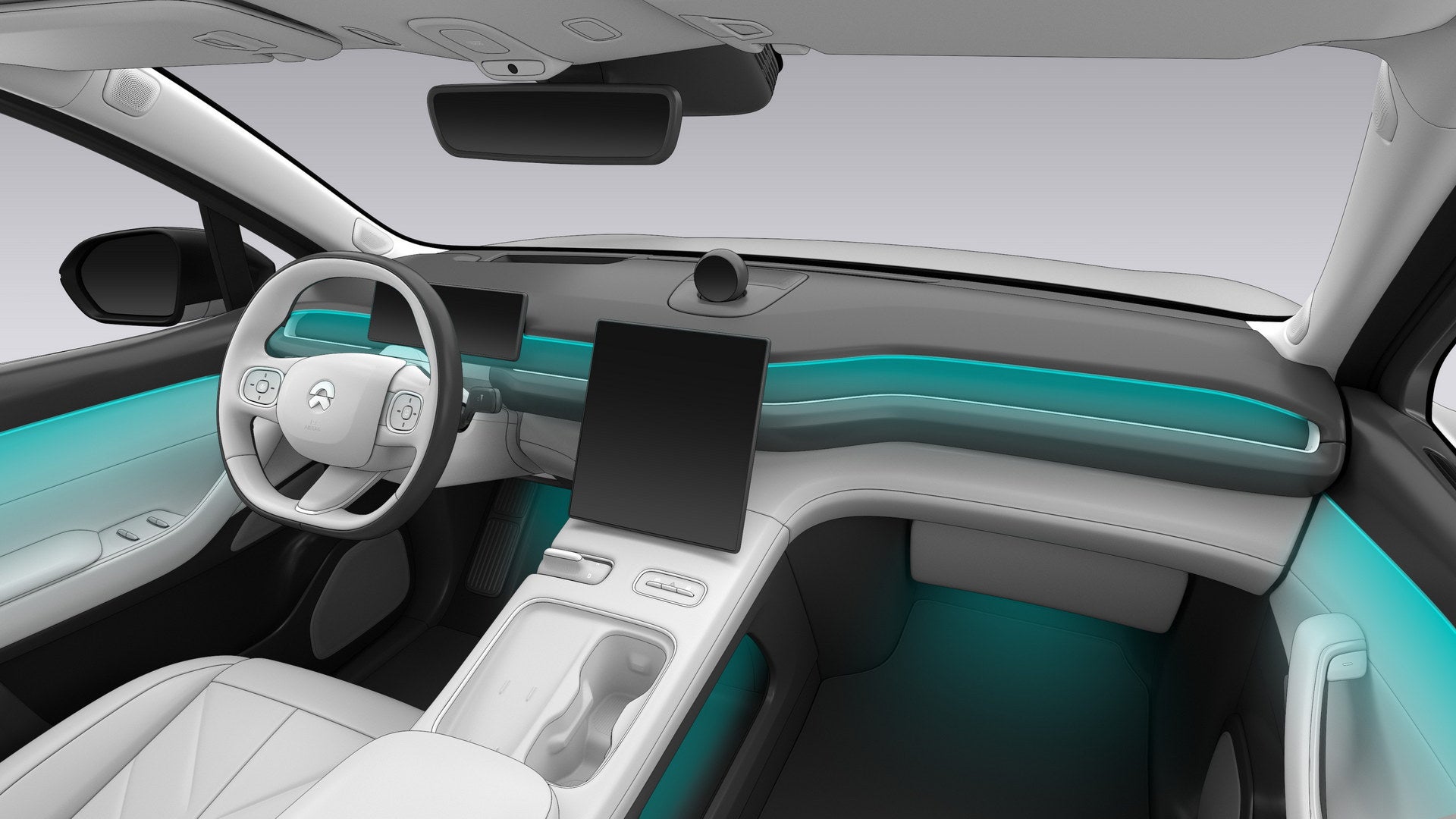

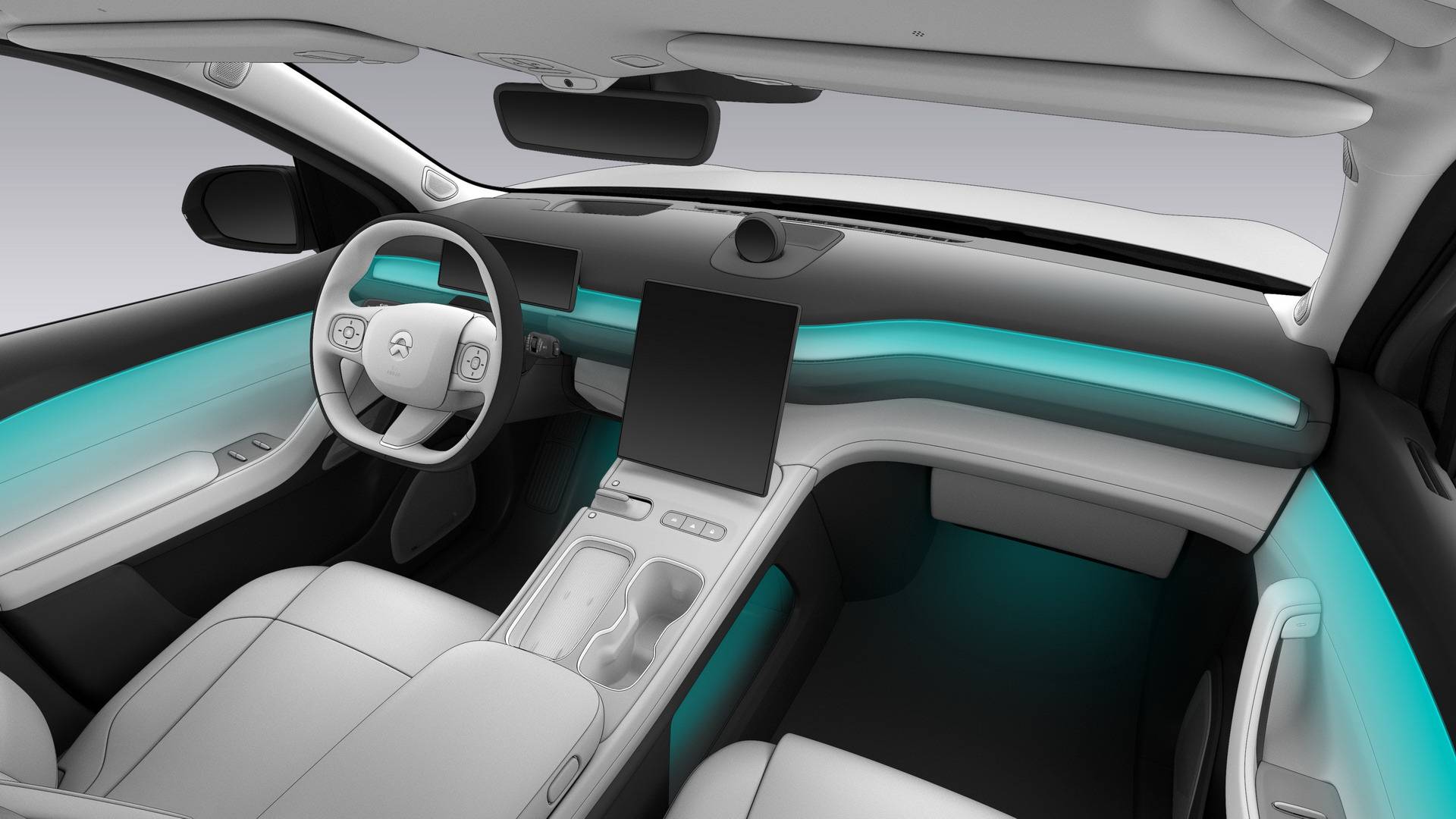

The vehicle is equipped with adjustable smart ambient lighting on the door panels, storage, and floor. You can choose your favorite ambient lighting effect to create a pleasant driving experience.

After you are seated, you can turn on the ambient lighting feature on the center display. The vehicle will be set at the default ambient lighting effect in the current drive mode. You can swipe right on the main page of the center display to enter the Quick Settings page, then tap Ambient Lighting to select the color and brightness for the ambient lighting of different positions (door panels, storage, and floor). This setting will be saved in your personal settings. You can also set different ambient lighting modes, such as Breathing, , etc. This setting will be saved on the center display.

When the vehicle is activated and verified for the first time, the owner’s account will be linked to the key fob by default. When the vehicle is unlocked with one of the key fobs, the vehicle will log into the owner’s account automatically.

Owner can also link an authorized user account to a smart key fob by managing the key fob in the NIO app. When an authorized user unlocks the vehicle using a key fob, the vehicle will log into the linked user’s account automatically. You can view and delete accounts linked to the key fobs on the NIO app. After linking or unlinking a account successfully, the vehicle owner and the account owner will receive a message and an app notification.

Owner Authorization

Go to the Settings page of the NIO app or tap Account > Account Settings in the upper left corner of the center display, and then enter the gesture password of your vehicle to go to the authorization management page.

You can authorize a user and set authorization by entering his/her NIO app user name. Up to nine users can be authorized. After setting the user’s authorization, tap the profile photo or user name to view the user’s information and authorization details (e.g. media, video, safe box). If the current authorization is active, you can also edit the scope of authorized access or disable the user’s authorization. An authorized user can only access authorized features, and cannot manage authorization or set Guest Mode.

If you unlock the vehicle using your smart key fob, the vehicle will automatically log into the owner’s account.

Unlocking by An Authorized User

An authorized user can unlock the vehicle using their NFC key or remote control on the NIO app. To view the account and access of an authorized user, tap his/her profile photo on the center display.

• NFC unlocking: Open the NFC app on your phone and place it close to the B pillar on the driver’s side.

• NIO app remote unlocking: Choose My Vehicle > Doors on the NIO app.

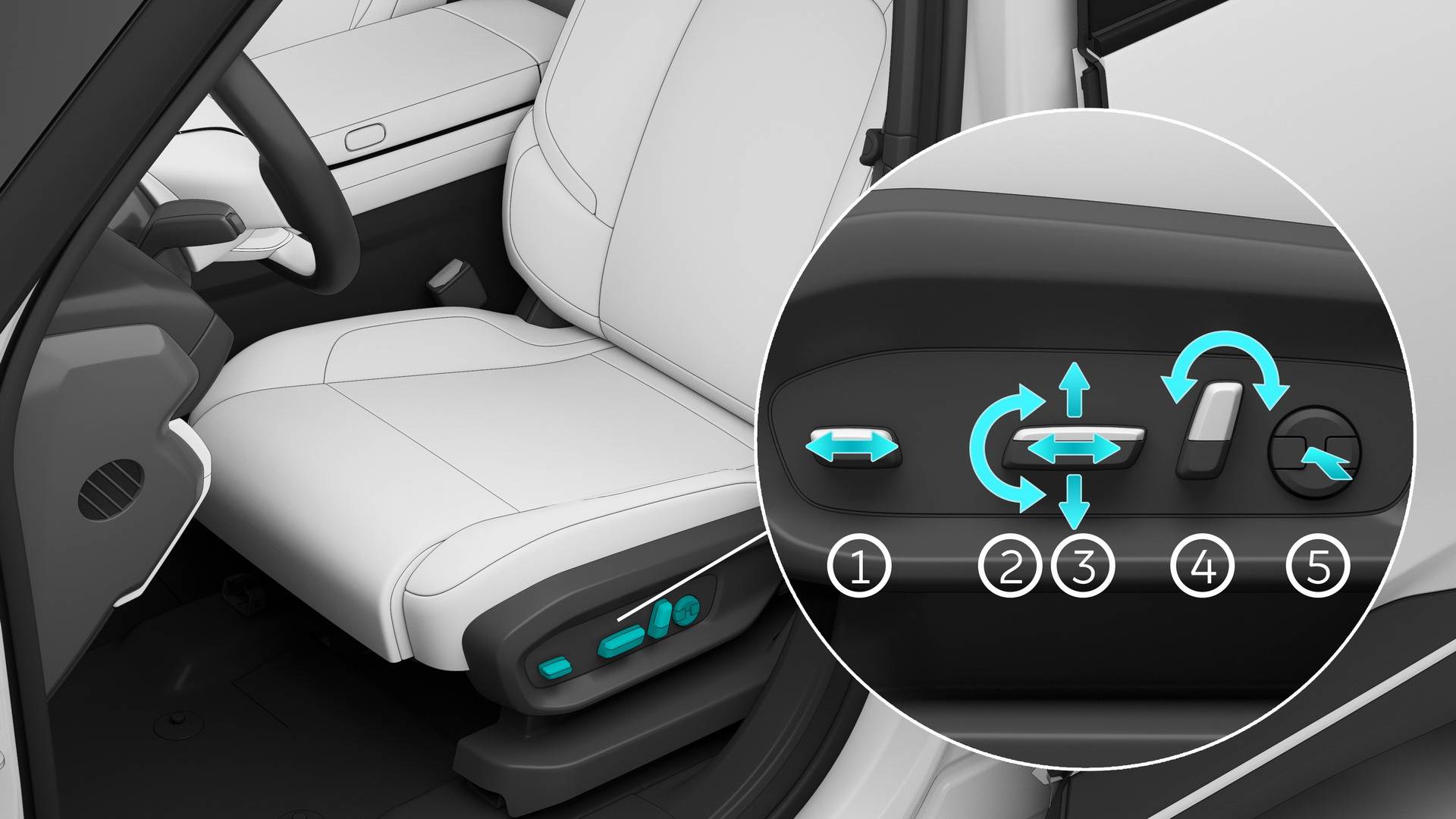

To adjust the seat position via a button

The position of the driver’s seat can be adjusted 14 ways electrically. The lumbar support can be adjusted 4 ways electrically and the headrest can be adjusted 4 ways.

1. Length of seat cushion

   Toggle the button back and forth to adjust the length of the seat cushion.

2. Inclination angle of seat cushion

   Turn this button to adjust the inclination angle of seat cushion.

3. Lateral position of the seat

   Toggle this button back and forth to move the seat forward or backward.

   Height of seat

   Toggle the middle part of this button up or down to move the seat upward or downward.

4. Reclining of the backrest

   Toggle the upper end of this button back and forth to adjust the reclining of the seat backrest.

5. Lumbar support adjustment

   Press and hold the corresponding position button to adjust the lumbar support.

Controlling the movement of the driver's seat on the center display

You can control the movement of the driver's seat on the center display.

On the driver's seat control interface, tap the "Position", "Backrest" and "Cushion" control arrows to adjust the position of the driver's seat, the reclining of the backrest and the position of the seat cushion respectively.

The center display provides five position options: driving position, rest position, walk-away position, and two spare positions. You can set them up as needed.

How to set up a memory position:

Enter the Settings page from the control bar at the bottom of the center display, tap Position Adjustment > Driver’s Seat to set up the position of the driver's seat on this page. The first time you set it up, after adjusting the seat position through the seat buttons or on the center display, you can set up personalized positions in different scenes by tapping the Driving Position/Rest Position/Walk-away Position/Spare Position button on the page, and the setting will be automatically saved under the corresponding user account. When you need to update a position, adjust the seat first, and then press and hold the button corresponding to the position to re-memorize it.

Correct Driving Position

To minimize potential risks and protect your safety, please adjust the seat as follows:

• Move the seat back and forth into a position where you can easily floor the accelerator and brake pedals.

• Adjust the seat backrest to a suitable straight-back sitting posture where your back completely fits the backrest, and the backrest does not recline too much.

• Adjust the height of the seat to an appropriate position where you can comfortably put both hands on the steering wheel.

• Adjust the steering wheel so that there is at least 25cm of distance between your chest and the steering wheel.

• Adjust the headrest so that the center of the headrest is flush with your eyes.

• Lay the middle part of the seat belt between the neck and shoulder. Fit the lap section of the seat belt tightly across your hip joints, not across your belly.

To adjust the seat position via a button

The front passenger seat has 14 electrically adjustable positions, including four for lumbar support and four for headrest.

1. Footrest Control

   To control the footrest's opening degree, toggle this button up and down.



2. Leg Support Control

   To move the leg support upward or downward, toggle this button up or down.



3. Lateral position of the seat

   Toggle this button back and forth to move the seat forward or backward.

   Height of seat

   To move the seat cushion upward or downward, toggle this button up or down.

4. Backrest adjustment

   Toggle the upper end of this button back and forth to adjust the reclining of the seat backrest.

5. Lumbar support adjustment

   Press and hold the corresponding position button to adjust the lumbar support.

Controlling the movement of the driver's seat on the center display

You can control the movement of the front passenger seat on the center display.

On the front passenger seat control interface of the center display, tap the "Position", "Backrest" and "Footrest" control arrows to adjust the position of the front passenger seat, the reclining of the backrest and the position of the seat cushion respectively.

The center display provides four position options: the default position, regular position, rest position and spare position. Among which the default position cannot be changed, but you can set the regular position, rest position and spare position as needed.

How to set up a memory position:

• Enter the Settings page from the control bar at the bottom of the center display, tap Position Adjustment > Front Passenger Seat to set up the position of the front passenger seat on this page. The first time you set it up, after adjusting the seat position through the seat buttons or on the center display, you can set up personalized positions in different scenes by tapping the Regular Position/Rest Position/Spare Position button on the page, and the setting will be automatically saved under the corresponding user account. When you need to update a set position, adjust the seat first, and then press and hold the button corresponding to the position to re-memorize it.

• Swipe right from the left on the main page of the center display to enter the Quick Settings page, and tap Front Passenger Seat Adjustment to directly enter the Front Passenger Seat Adjustment interface. The adjustment method is as described above.

Controlling the seat movement on the rear control display

Rear passengers can control the front passenger seat’s movement on the rear control display.

To access the Quick Settings page on the back control display, swipe down from the top and select "Rear Premium" or "Front Passenger Seat Recovery."

Correct passenger position

To minimize potential risks and protect your safety, please adjust the seat as follows:

• Move the seat back and forth into a position where you can place both feet in the footwell in front of the seat.

• Adjust the seat backrest to a suitable straight-back sitting posture where your back completely fits the backrest, and the backrest does not recline too much.

• Adjust the headrest so that the center of the headrest is flush with your eyes.

• Lay the middle part of the seat belt between the neck and shoulder. Fit the lap section of the seat belt tightly across your hip joints, not across your belly.

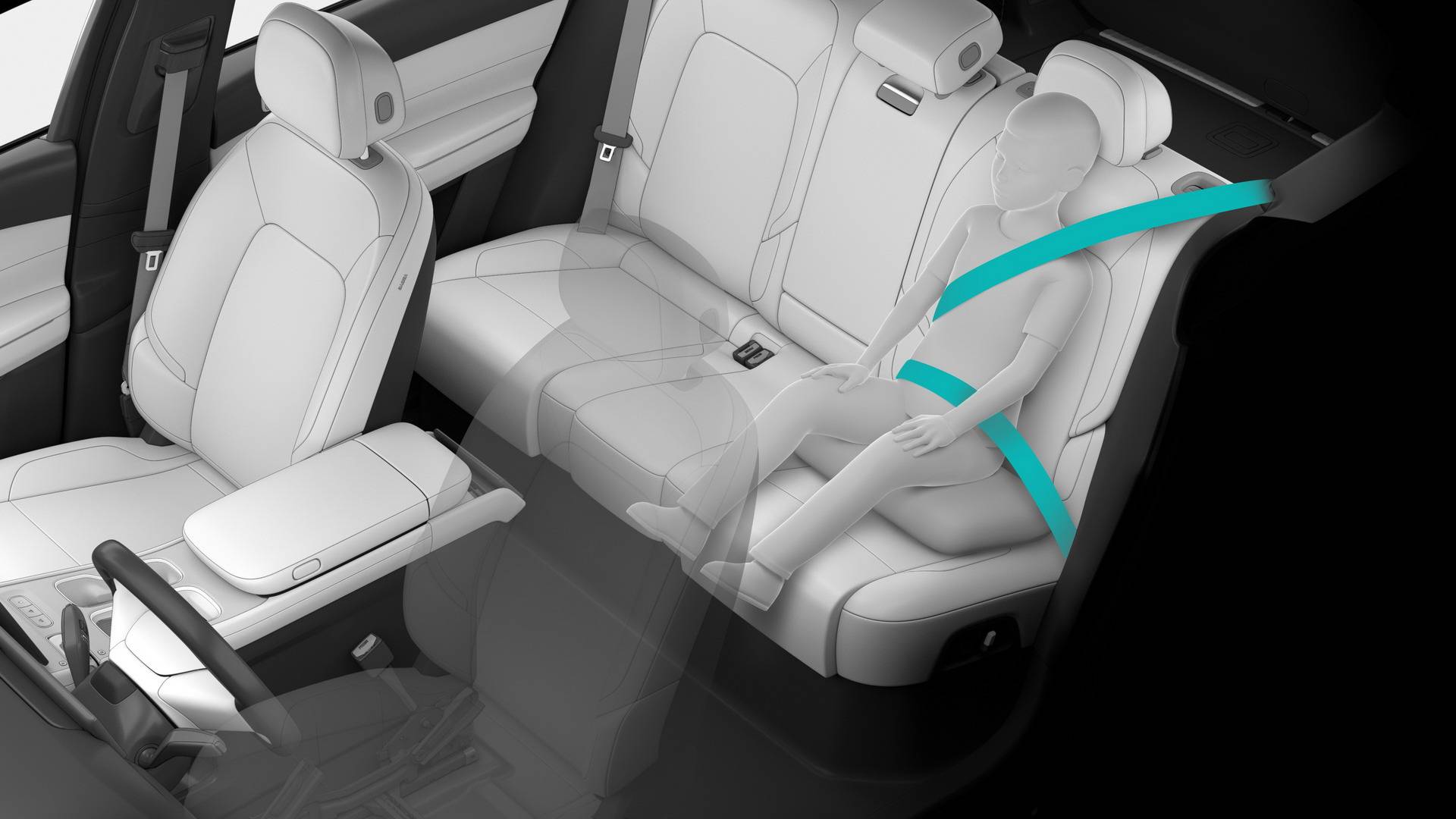

Recommended sitting posture and seat position for the rear passengers

To minimize potential risk and ensure your safety, please adjust the seats as follows before driving:

• Maintain the backrest in an upright position.

• Adjust the headrest so that the center of the headrest is flush with your eyes.

• Adjust the seat backrest to a suitable straight-back sitting posture where your back completely fits the backrest, and the backrest does not recline too much.

• Place your feet in the footstep space in front of the rear seats.

• Place the middle part of the seat belt between your neck and shoulder, and fit the lap section of the seat belt tightly across your hip joints, not across your belly.

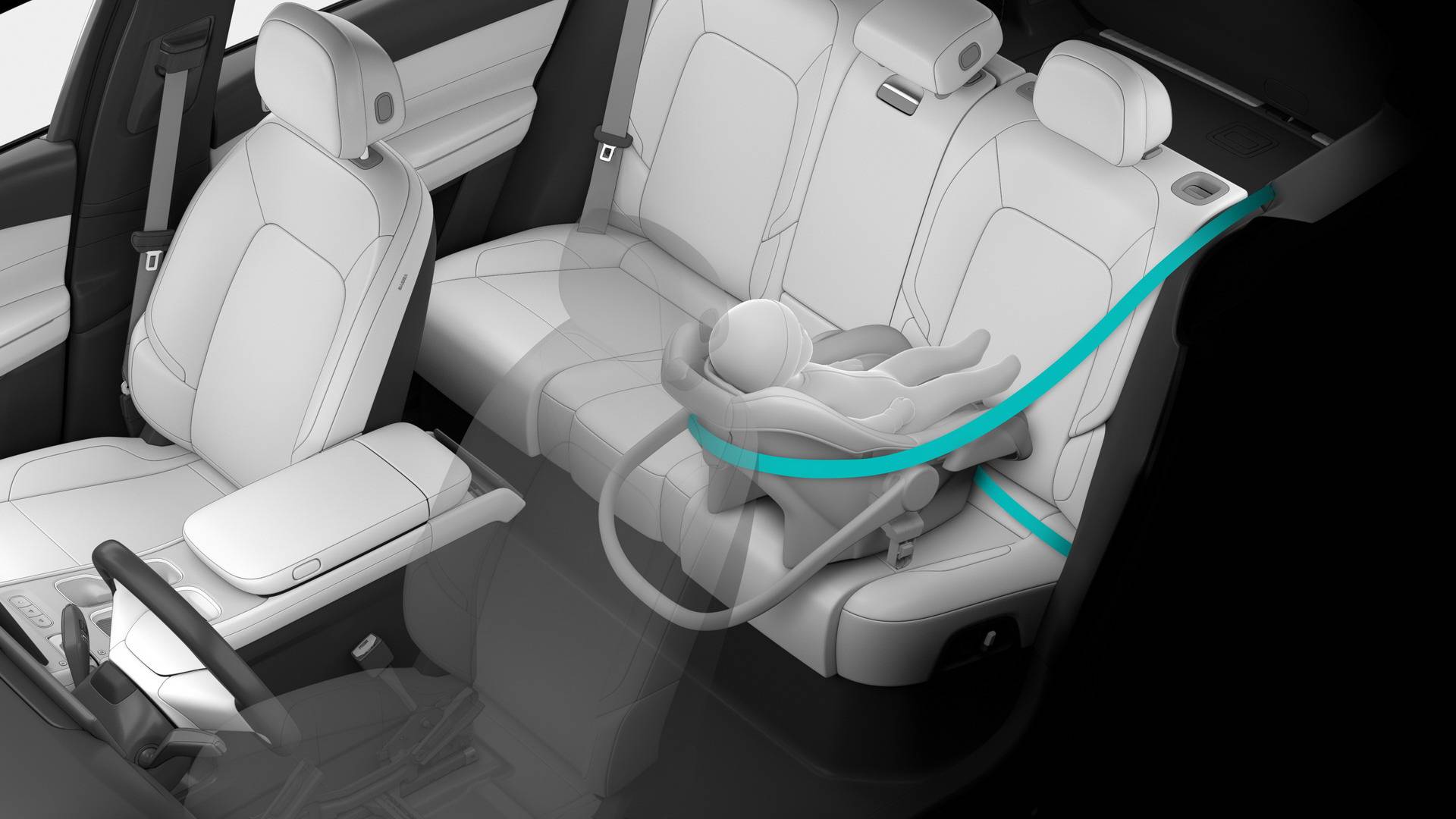

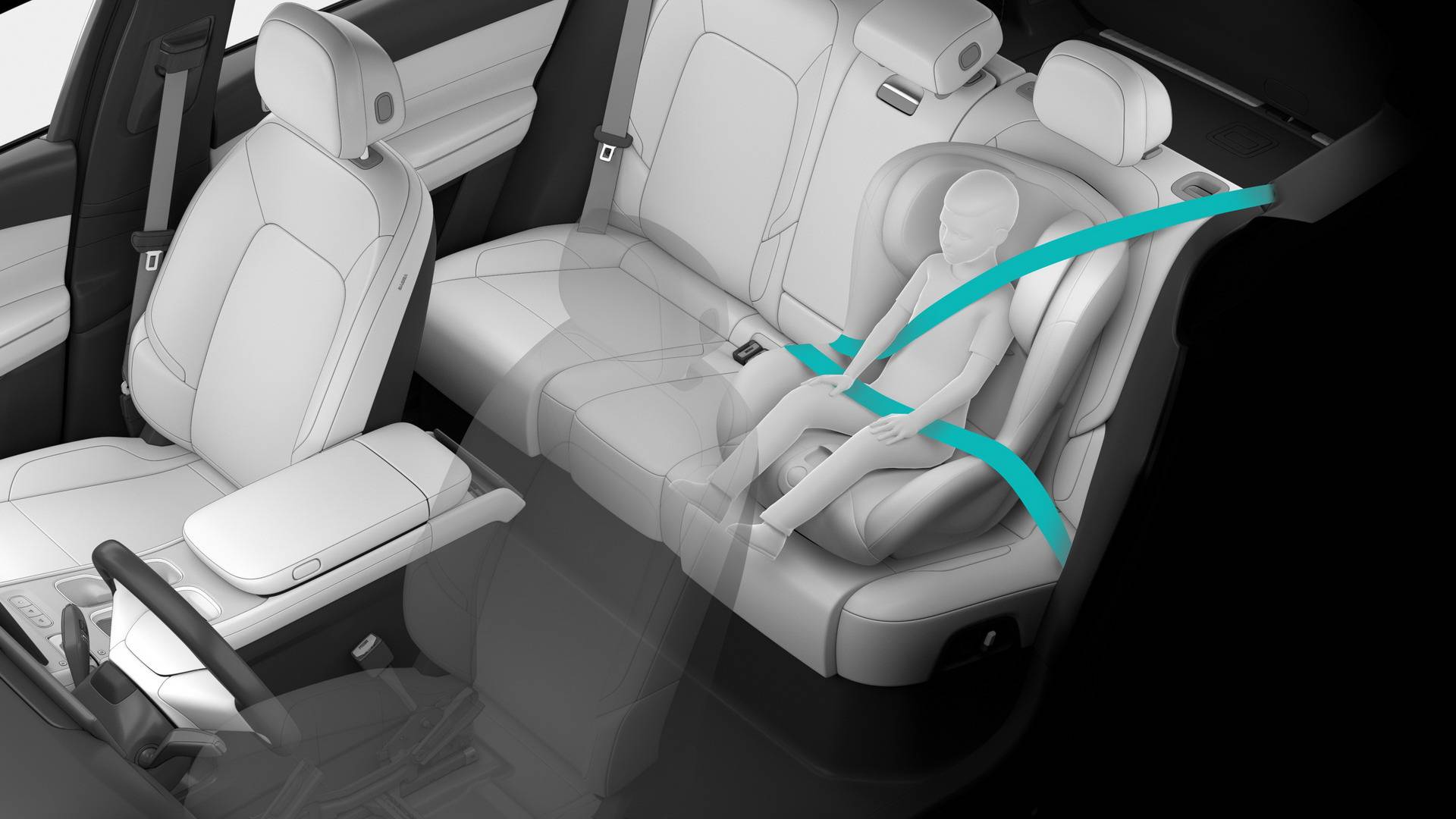

• When driving with children in your vehicle, use appropriate child safety seats to protect children. See the chapter on child safety seats for details.

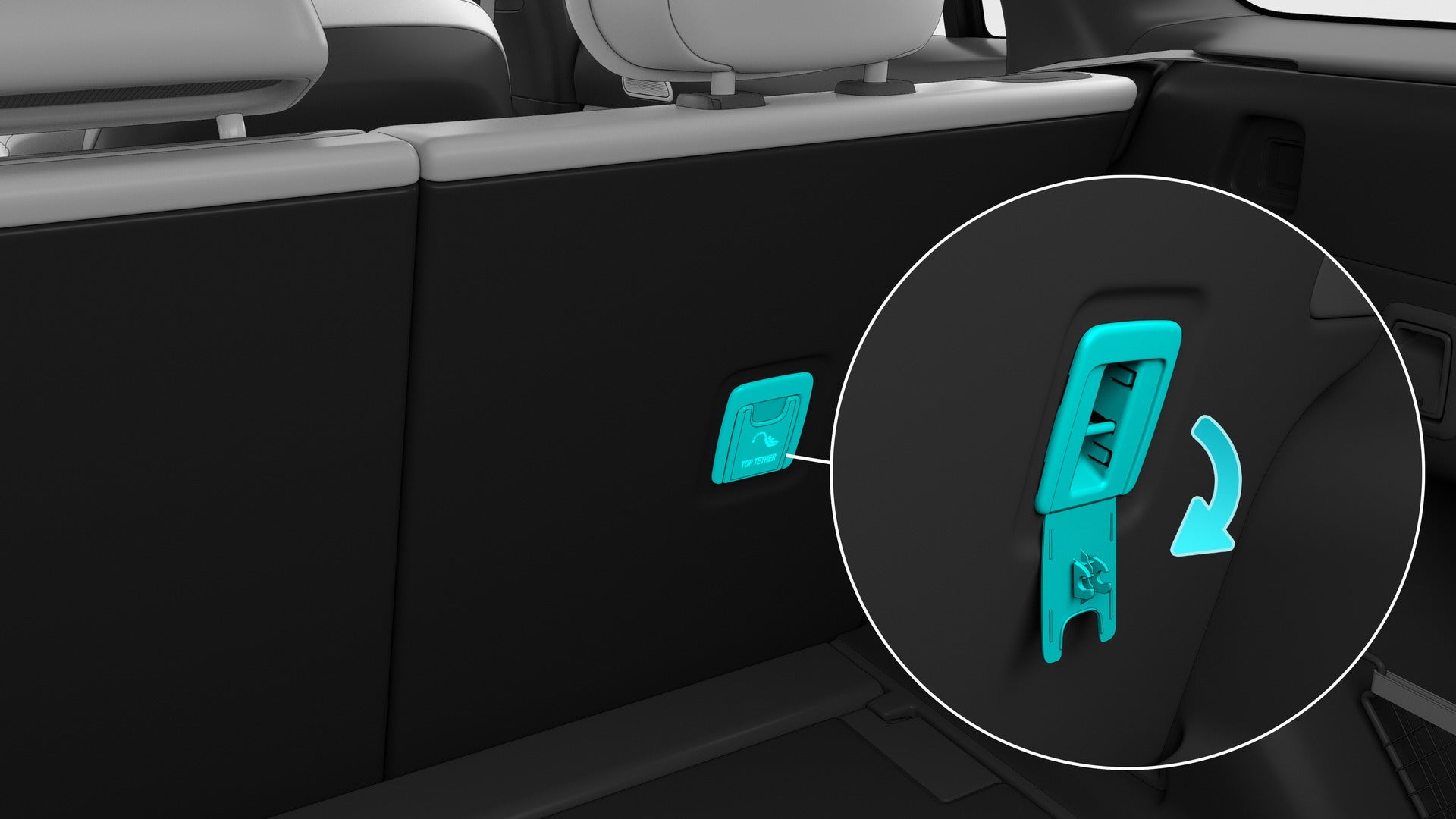

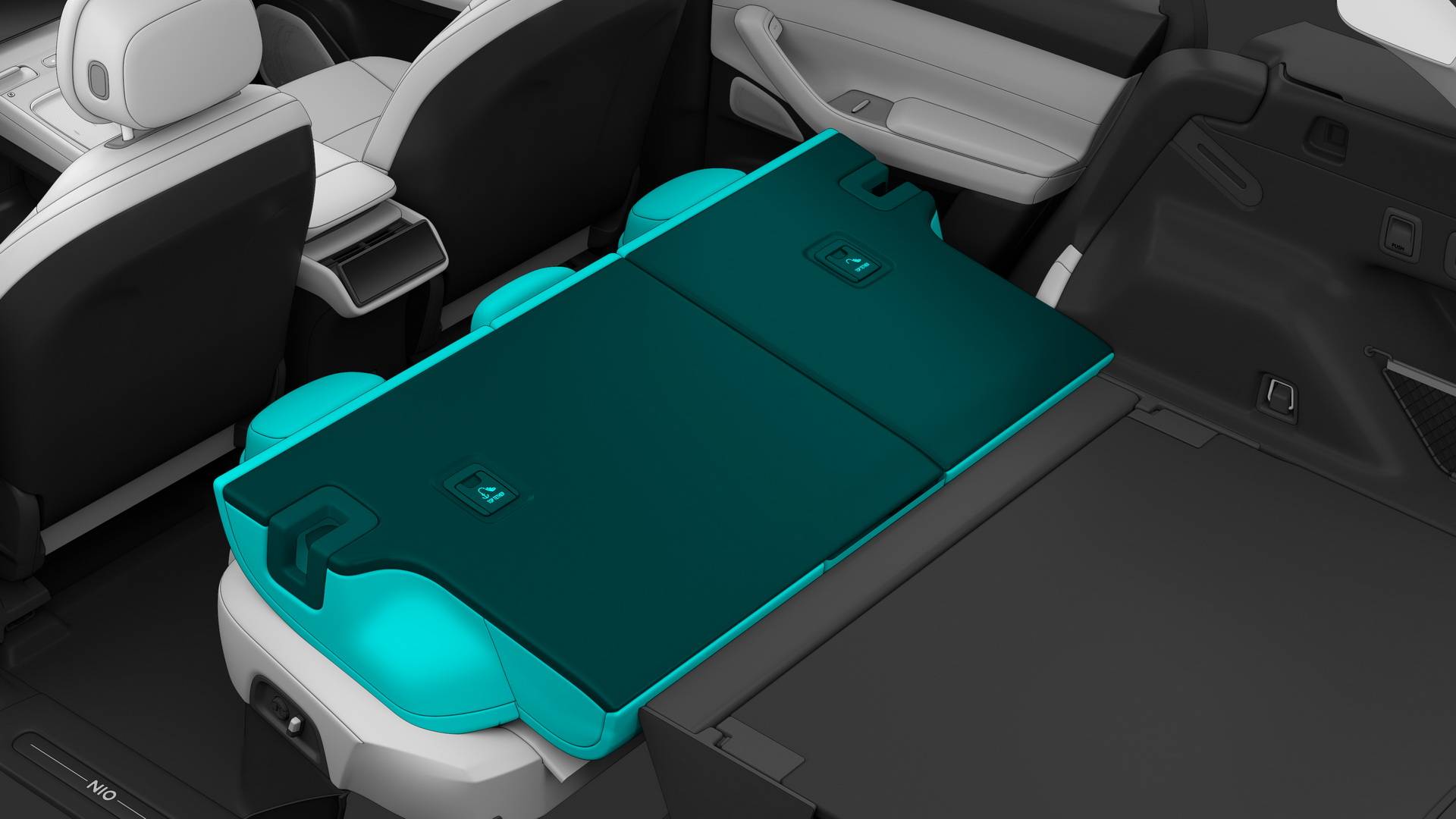

Reclining the Backrest of the Rear Seat

Pull the mechanical handle of the seat backrest to unlock the backrest and then push the backrest forward to recline the seat backrest.

Front Headrest Adjustment

The front headrest is freely adjustable, but moving it backwards, upwards, or downwards requires pressing the lock button.

Rear Headrest Adjustment

Press the button to move the headrest upwards or downwards.

When the seat headrest is in the lowest non-use position, it needs to be raised and locked before use.

Rear Middle Headrest Adjustment

Press the lock button to adjust the rear middle headrest.

When the rear middle headrest is in the lowest non-use position, it needs to be rotated, raised and locked before use.

Door Storage

There is a storage space at the lower part of each door, which can be used for drinks or items, and is equipped with door storage lighting for illumination at night, when the light is dim or when the position lights are turned on.

Card Holder

A card holder is provided on the sun visor, which can be used to store cards such as business cards and highway passes.

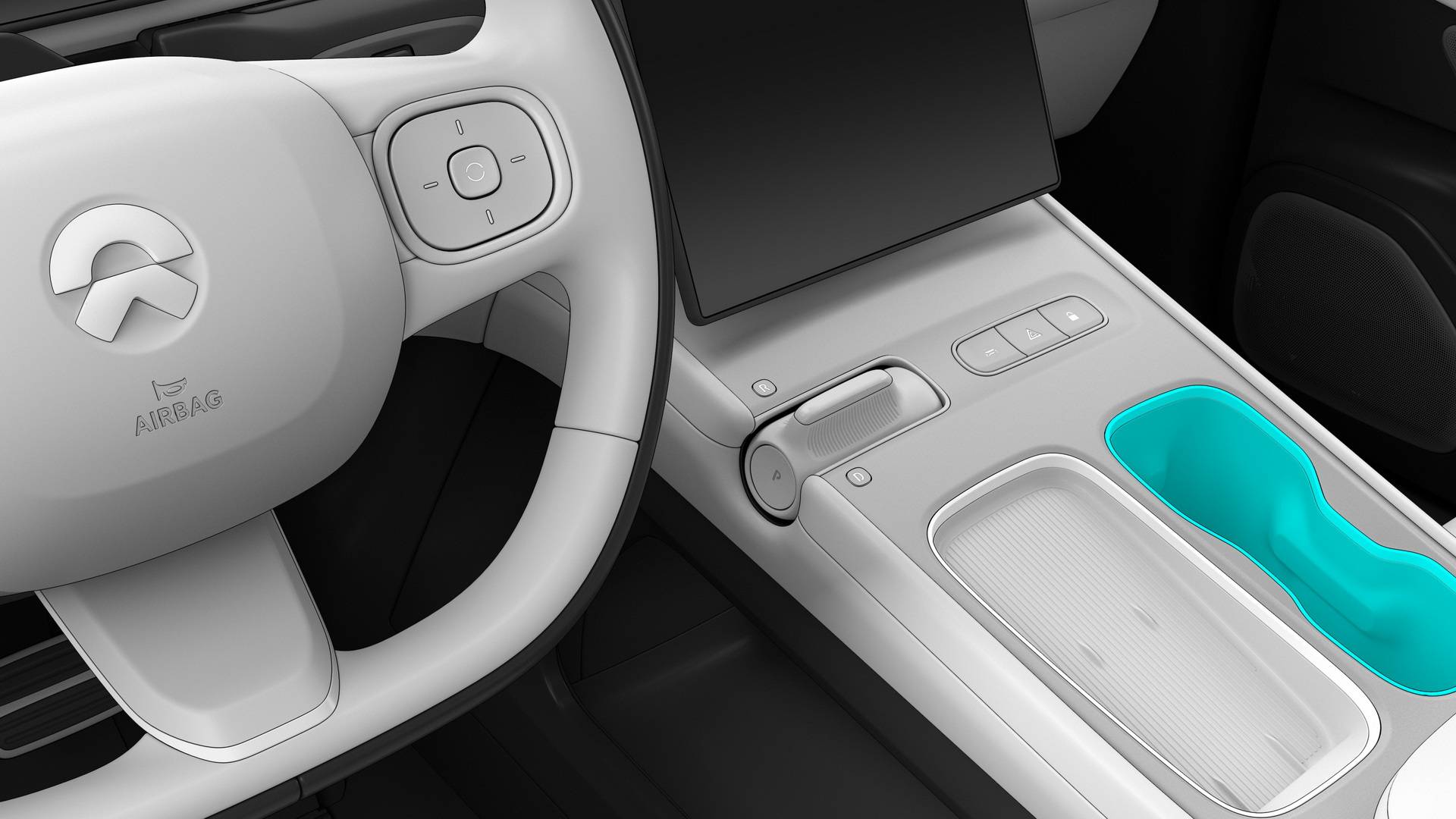

Cup Holder

There are two cup holders on the central armrest, which can be used for drinks.

Center Console Open Storage

The open storage space under the center console can be used for temporary storage of some non-important items, and there is also a 12V power socket at the rear that can be used to charge the passenger's electronic devices.

Rear Doors

There are convenient storage spaces beside the rear seats. There is a storage space on both rear doors, which can be used for drinks or items, and is equipped with door storage lighting for illumination at night, when the light is dim or when the position lights are turned on.

There are also coat hooks besides both doors, which can be used to neatly store clothes.

Rear Central Armrest

When the rear middle seat is not occupied, you can flip open the central armrest on the backrest to expose the cup holders and storage space.

The storage’s USB Type-C port can be used to charge mobile devices.

Storage Box Mode

The safety storage box is in the Storage Box Mode by default. In this mode, the safety storage box is not locked, and its flip cover can be opened through the buttons on the left and right sides of the central armrest:

1. Safety storage box buttons

   Press the button to open the flip cover. It can be used to store mobile phones, tissues and other items (both left and right buttons can open the cover).

2. Safety storage box USB Type C port (60W)

   High-speed transmission port for charging mobile devices, does not support data transmission.

3. Safety storage box USB Type A port (2.5W)

   Ordinary transmission port for data transmission such as USB media audio source, Digital Video Recorder (DVR) video export, microphone access, etc., as well as for charging mobile devices.

Safe Box Mode

Swipe right on the main page of the center display to enter the Quick Settings page, and tap Safe Box. When the Safe Box Mode is turned on for the first time, a pop-up window for setting the password will pop up on the center display, and you need to set a password to finish setting up Safe Box Mode.

Once set, you need to enter the password on the center display to unlock the safety storage box, then you can open the flip cover through the buttons on both sides of the central armrest.

Mode Switch

To switch between the two modes of the safety storage box: enter the Settings page from the control bar at the bottom of the center display, and tap Safety > Armrest Box to switch between Storage Box Mode and Safe Box Mode.

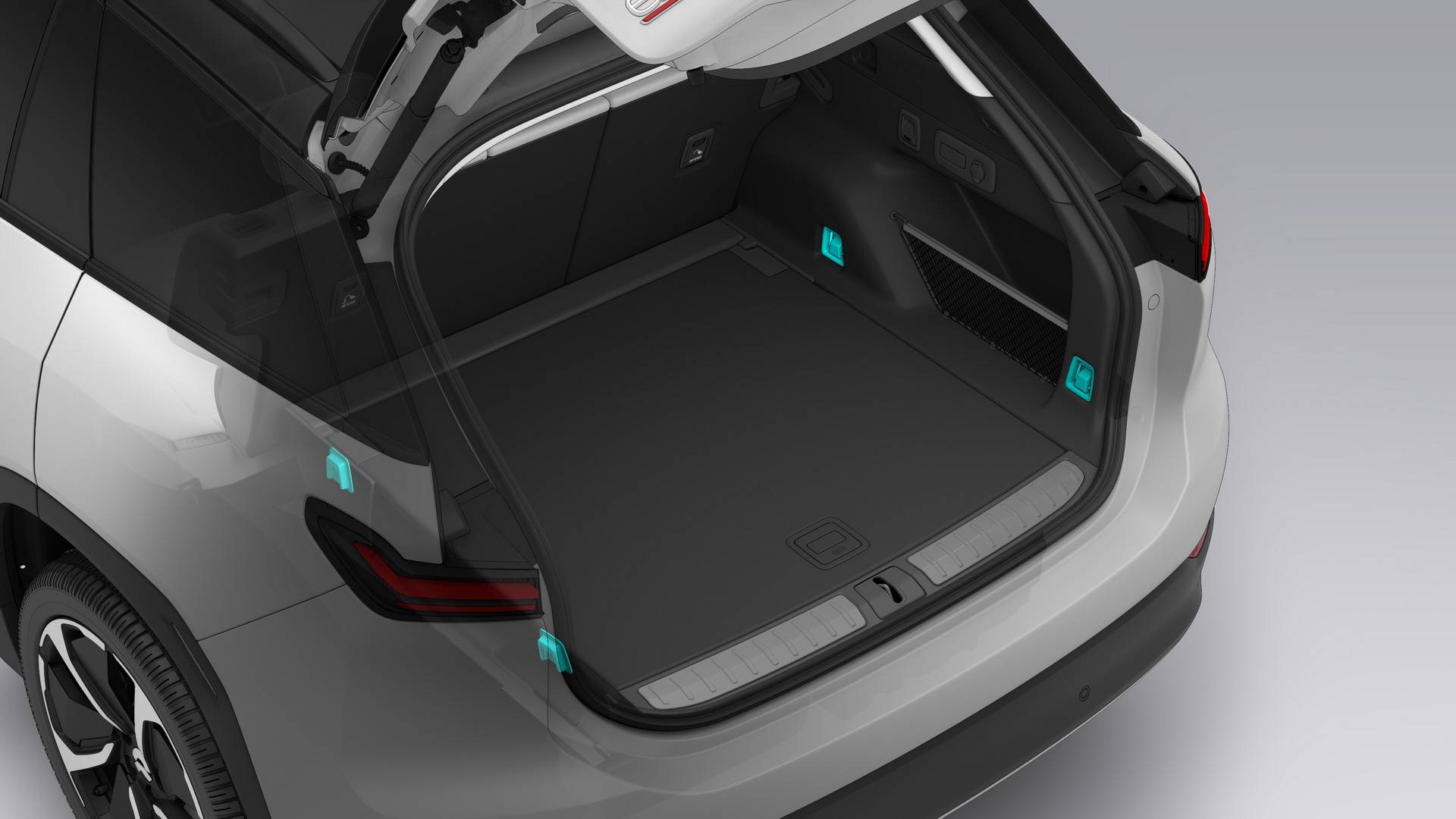

Load Retaining Ring

The Load Retaining Ring is used to tie nets or ropes to secure items. There are two on each side of the rear trunk.

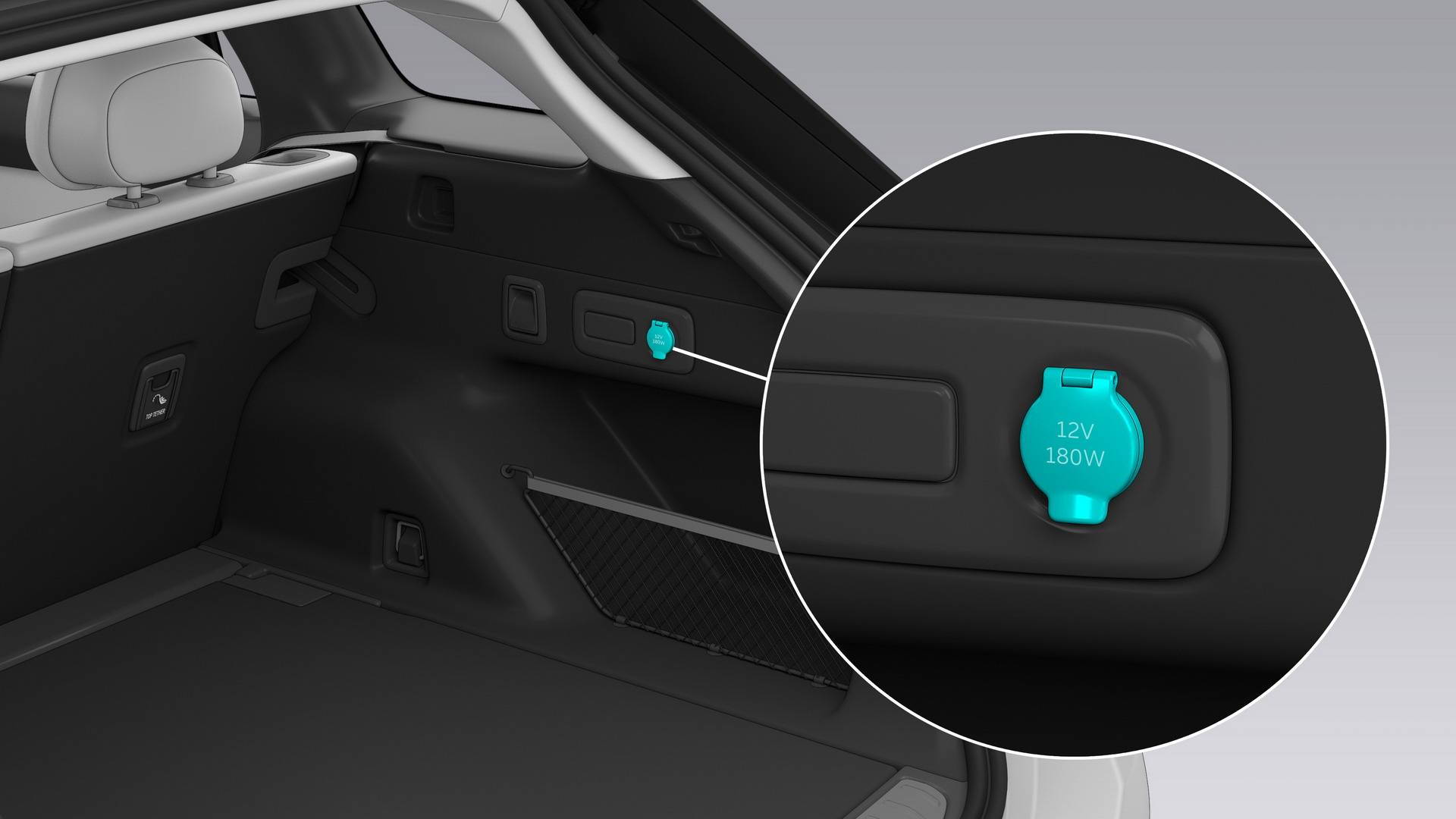

Rear Trunk 12V Power Socket

The 12V power socket is located on the right side of the rear trunk, which can supply power to external devices as needed.

Steering Wheel Position Adjustment

Enter the Settings page from the control bar at the bottom of the center display, tap Position Adjustment > Steering Wheel > Start Adjusting to adjust the position through the buttons on the right side of the steering wheel. See Steering Wheel Position Adjustment.

Adjusting the Right Exterior Rearview Mirror

Enter the Settings page from the control bar at the bottom of the center display, tap Position Adjustment > Adjusting the Exterior Rearview Mirrors > Start Adjusting to adjust the position of the right exterior rearview mirror through the buttons on the right side of the steering wheel. See Exterior Rearview Mirrors Position Adjustment.

Volume Adjustment

In scenarios such as answering calls, talking with NOMI, and playing multimedia, tap the Up or Down button to adjust the volume, and press and hold the Down button to mute the sound.

In other scenarios where there is no need for volume adjusting, holding the Up button has no response, and press and hold the Down button to mute the sound.

In the mute state, tap the Up button to unmute.

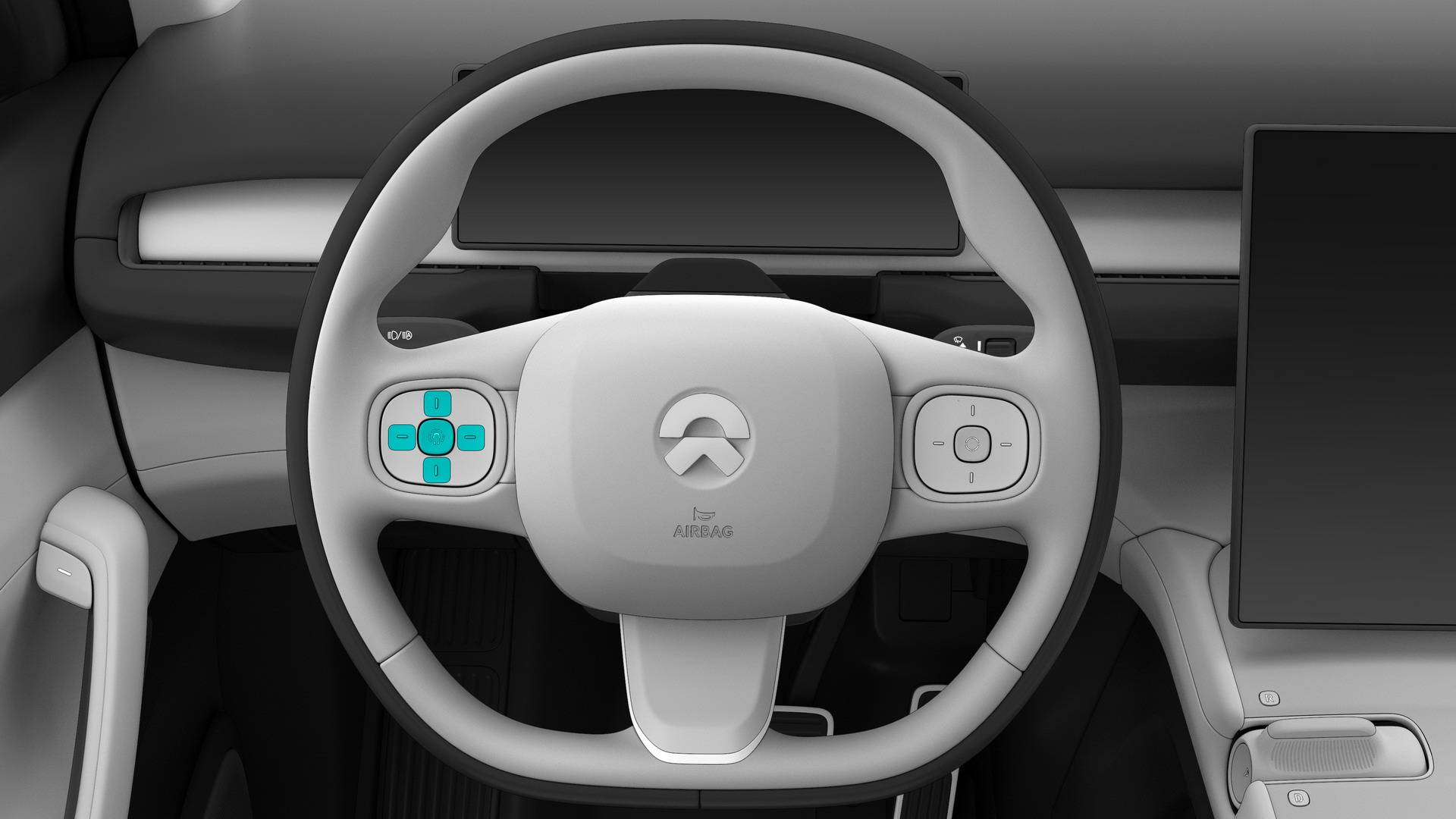

To Trigger the Custom Function

Press and hold the Middle button on the right side of the steering wheel to trigger the custom function. The default triggered function is NOMI, and you can change to a custom function on the Settings page.

Control within an Immediate Task

When the incoming call reminder is displayed, you can answer or reject the call through the Left and Right buttons, and the Middle button is for confirming the selection.

Normal Menu Switching

Press and hold the Left or Right button to enter the “Switching Mode”, in which you can tap the Left or Right button to switch the order of the menus.

Tap the Middle button, or hold the Left or Right button for 3 seconds to select the current menu and exit Switching Mode.

Controls within the Menu

When the instrument panel shows the Media/Third-party Software, Estimated Battery Life, Mileage, and Power Consumption menus, press the Left, Middle and Right buttons on the right side of the steering wheel to globally control the media/third-party software.

When the Media/Third-party Software menu is for Media: Left - previous track; Right - next track; Middle - play/pause

When the Media/Third-party Software menu is for Karaoke: Left - redo; Right - next track; Middle - play/pause

When the instrument panel shows Team menu: Middle - sound record/send

Adjusting the Left Exterior Rearview Mirror

Enter the Settings page from the control bar at the bottom of the center display, tap Position Adjustment > Adjusting the Exterior Rearview Mirrors > Start Adjusting to adjust the position of the left exterior rearview mirror through the buttons on the left side of the steering wheel. See Exterior Rearview Mirrors Position Adjustment.

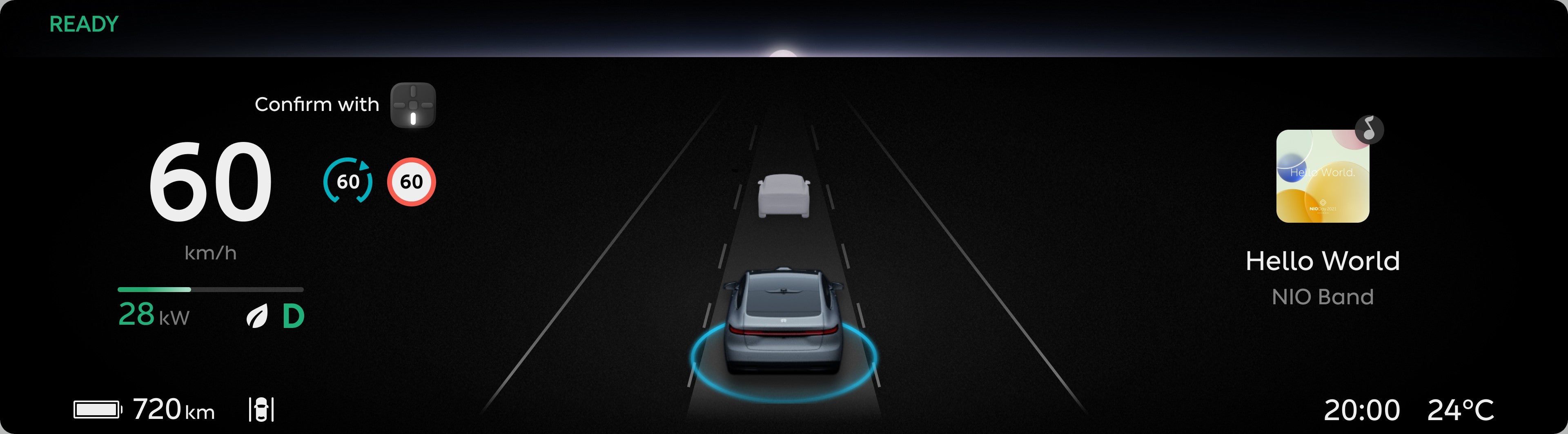

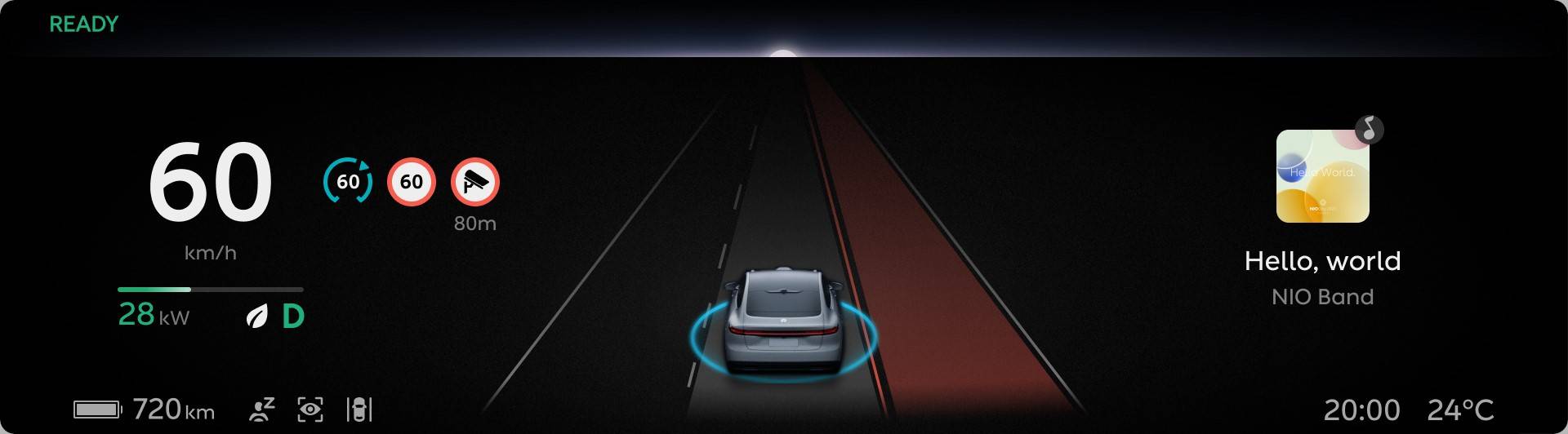

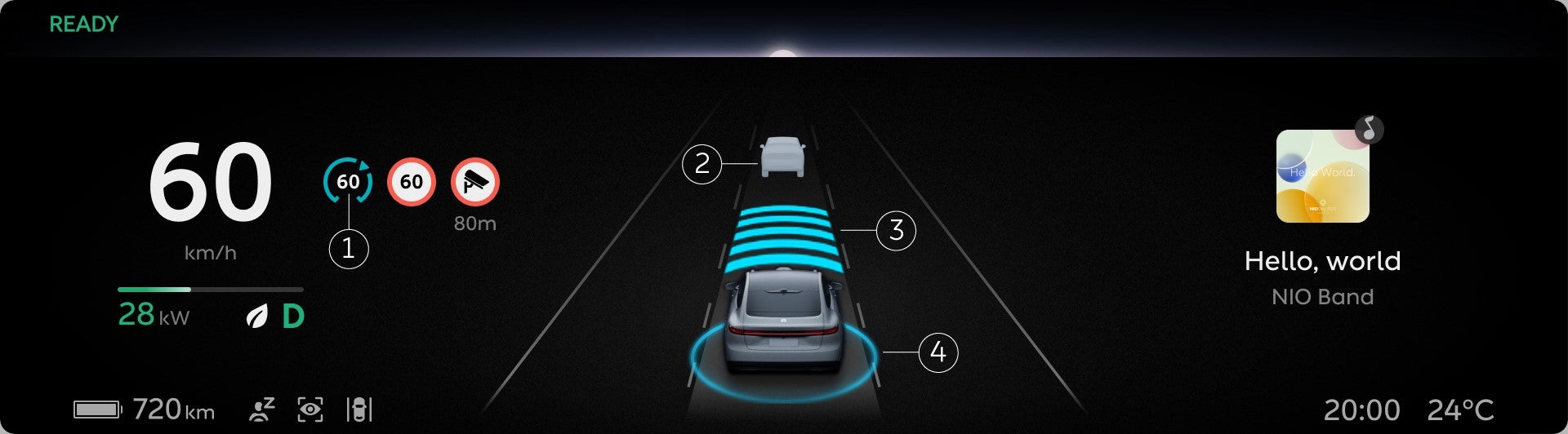

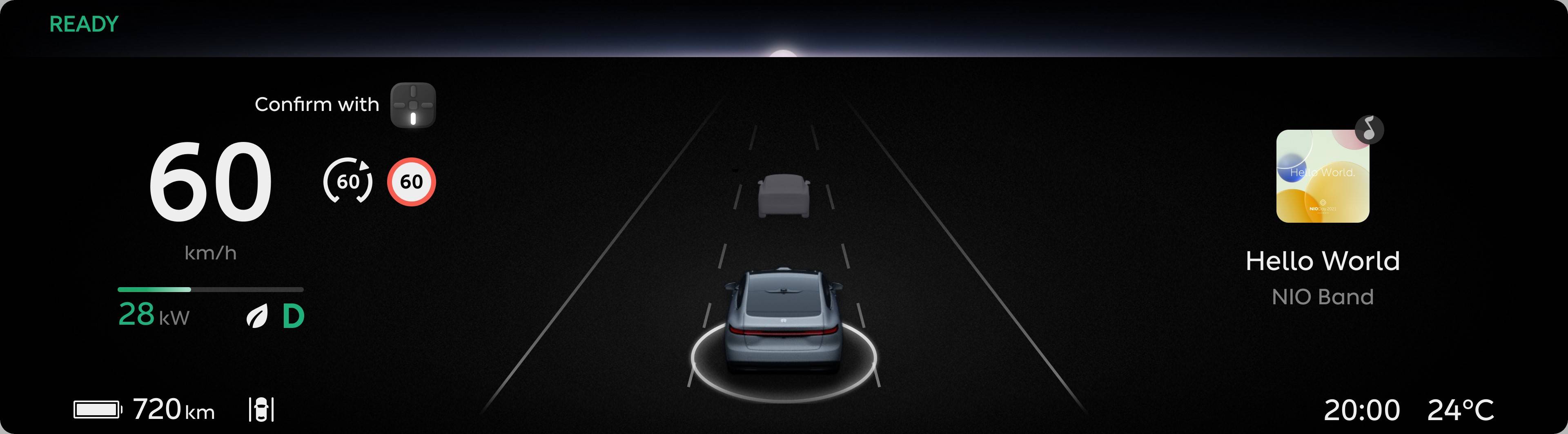

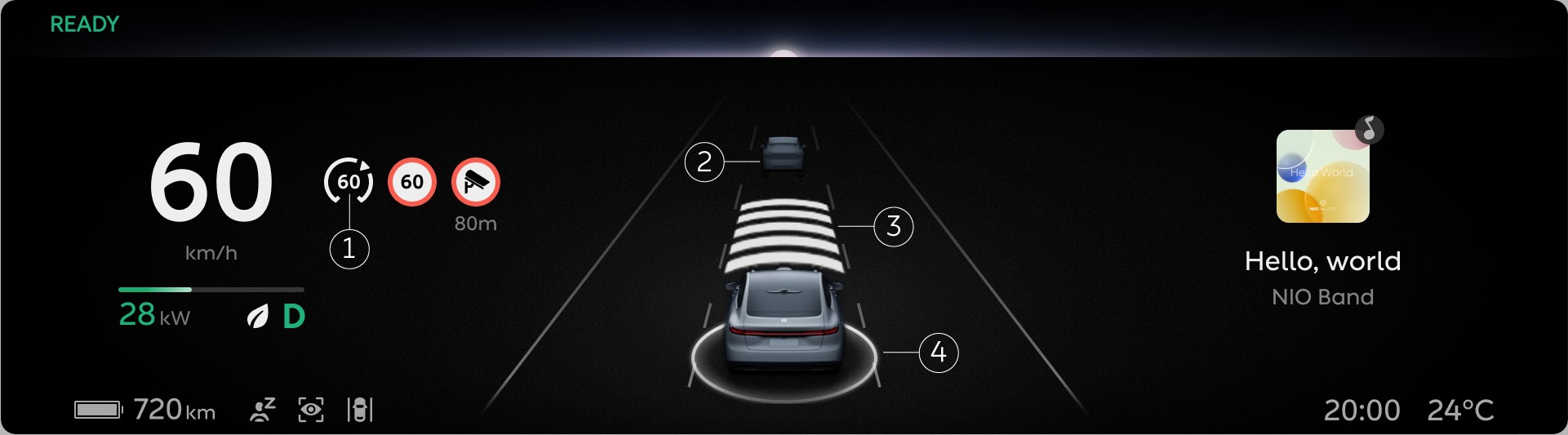

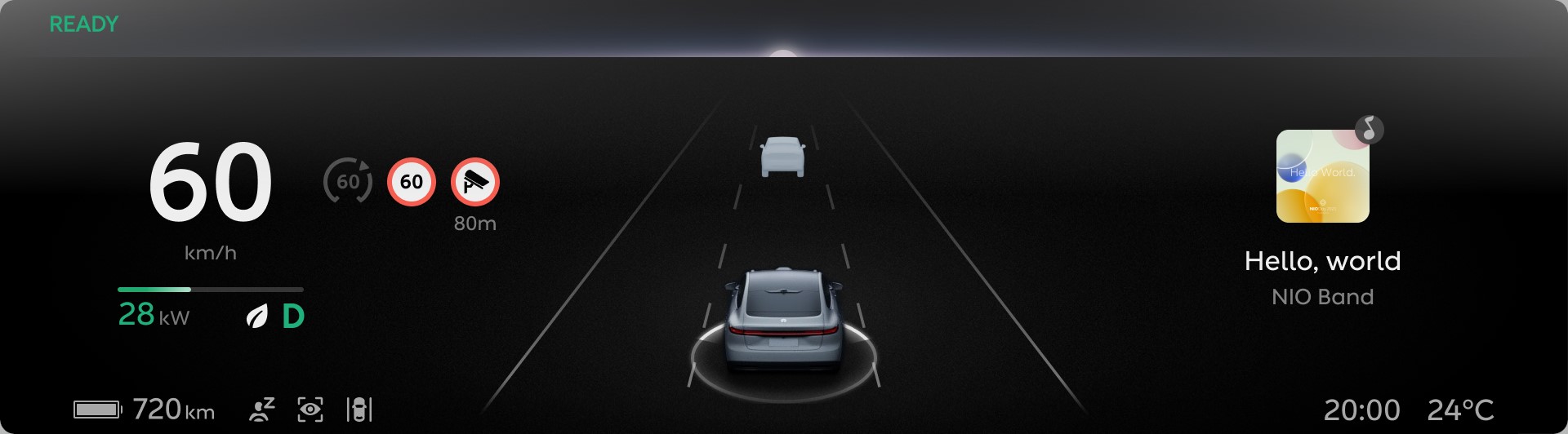

To adjust driver assistance control

Middle button: activate or exit driver assistance

Up button: increase the cruising speed

Down button: decrease the cruising speed

Right button: increase the following distance

Left button: decrease the following distance

Tap the Up or Down button: increase/decrease the cruising speed by 5 km/h; press and hold the Up or Down button: increase/decrease the cruising speed by 1 km/h continuously

Tap the Left or Right button: increase/decrease the following distance by 1 level, where Level 1 is the closest, and Level 5 is the farthest

Auto Front Wiper

Press the Auto Wiper button on the end of the right lever to enable the auto wiper feature. Press this button again or toggle the lever up and down to disable the auto wiper feature.

Go to Settings from the bottom of the center display, and tap Driving > Auto Rear Wiper to enable the feature.

Cleaning the Front Windshield with Wipers

Lift the lever on the right side of the steering wheel towards the driver's face, and select . The nozzles on the wiper arms will spray washer fluid, and the wipers will operate at low speed. Release the lever to stop spraying washer fluid.

Enter Settings from the bottom of the center display, and tap Driving > Enhanced Cleansing to enable this feature. Now the wipers will wipe one more time after spraying washer fluid. It is recommended to turn off this feature in winter in northern areas.

Push the lever forward and select to enable the rear windshield wipers to work at a low speed.

Push the lever further forward and hold it, then select to spray washer fluid on the upper rear windshield with wipers working at a low speed. Release the lever to stop spraying and keep wiping. Pull the lever back to stop wiping.

Rear Windshield Auto Heating

Enter Settings from the bottom of the center display, and tap Driving to enable rear windshield auto heating. When the front wipers are turned on on rainy days, rear windshield heating will be enabled automatically to help remove the water mist.

Enabling/Disabling Wipers in Reverse

When shifting into REVERSE with the front wipers on, the rear wiper will be turned on automatically. When shifting out of REVERSE, the rear wiper will be turned off.

When Auto Rear Wiper is enabled and the front wipers are turned on, the rear wiper operates automatically when reversing.

Side Mirror Auto Heating

Enter Settings from the bottom of the center display, and tap Driving to enable side mirror auto heating. When the front wipers are turned on on rainy days, side mirror auto heating will be enabled automatically to help remove the water mist.

Air Conditioning Control Bar

Control the temperature and airflow distribution in your vehicle through the air conditioning control bar at the bottom of the center display.

1. Home

   Tap to return to the home page.

2. Settings

   Tap to go to the list of settings.

3. Switching Between Recirculating Air and Outside Air

   The current air flow mode is displayed. You can tap to select the following three modes in sequence: recirculation , automatic recirculation or outside air , and outside air .

   With automatic recirculation or outside air mode, if air pollution is serious, outside air will be turned off automatically and switched to recirculation to realize automatic control of air quality in the vehicle.

4. Driver Side Temperature Display

   Displays the target temperature on the driver side. Tapping it goes to the temperature control panel.

   Swiping left or right adjusts the target temperature. The range on the driver side is 15–31 ℃.

   You can also press the arrow to adjust the target temperature. Each time you press the arrow, the temperature can be adjusted by 0.5 ℃.

   Select "Whole Vehicle Sync" to adjust the air conditioning temperature for the front and rear passengers together with the driver side. Manually adjusting the temperature on the front passenger side or in the rear row will exit sync mode.

5. Air Conditioning Inlet and Air Volume Regulation

   Displays the ON/OFF status of the air conditioning. Tap to expand or collapse the air conditioning control panel.

   Long press and slide to adjust the air volume level of the front row. There are eight air volume levels, 0–8, where 0 turns off the air conditioning for the whole vehicle.

6. Front Passenger Side Temperature Display

   Displays the target temperature on the front passenger side. Tapping it goes to the temperature control panel.

   Swiping left or right adjusts the target temperature. The range on the front passenger side is 15–31 ℃.

   You can also press the arrow to adjust the target temperature. Each time you press the arrow, the temperature can be adjusted by 0.5 ℃.

7. Front Windshield Defrosting/Defogging

   When the front windshield defrosting/defogging function is turned on, the manual air conditioning (A/C) mode is turned on at the same time, the air distribution mode is defrosting mode, and the air circulation is switched to the automatic recirculation/outside air mode.

   If the outside of the front windshield is foggy. Turn on the wipers and automatic air conditioning. If the inside of the front windshield is foggy, turn on defogging for the front windshield. After the fog is cleared, switch to automatic air conditioning and turn on auto defogging for the air conditioning.

   Go to the Settings page in the control bar at the bottom of the center display and tap Comfortable Environment > Auto Defogging. Front windshield defogging will automatically turn on when the inside of the front windshield is about to become foggy or slightly foggy.

8. Application Center

   Applications in the center display of the vehicle.

9. Volume Adjustment

   The default volume is 50%. Tap and then slide left or right to adjust the volume.

   Mute by long pressing, and then unmute and return to the volume before the mute state by another long press.

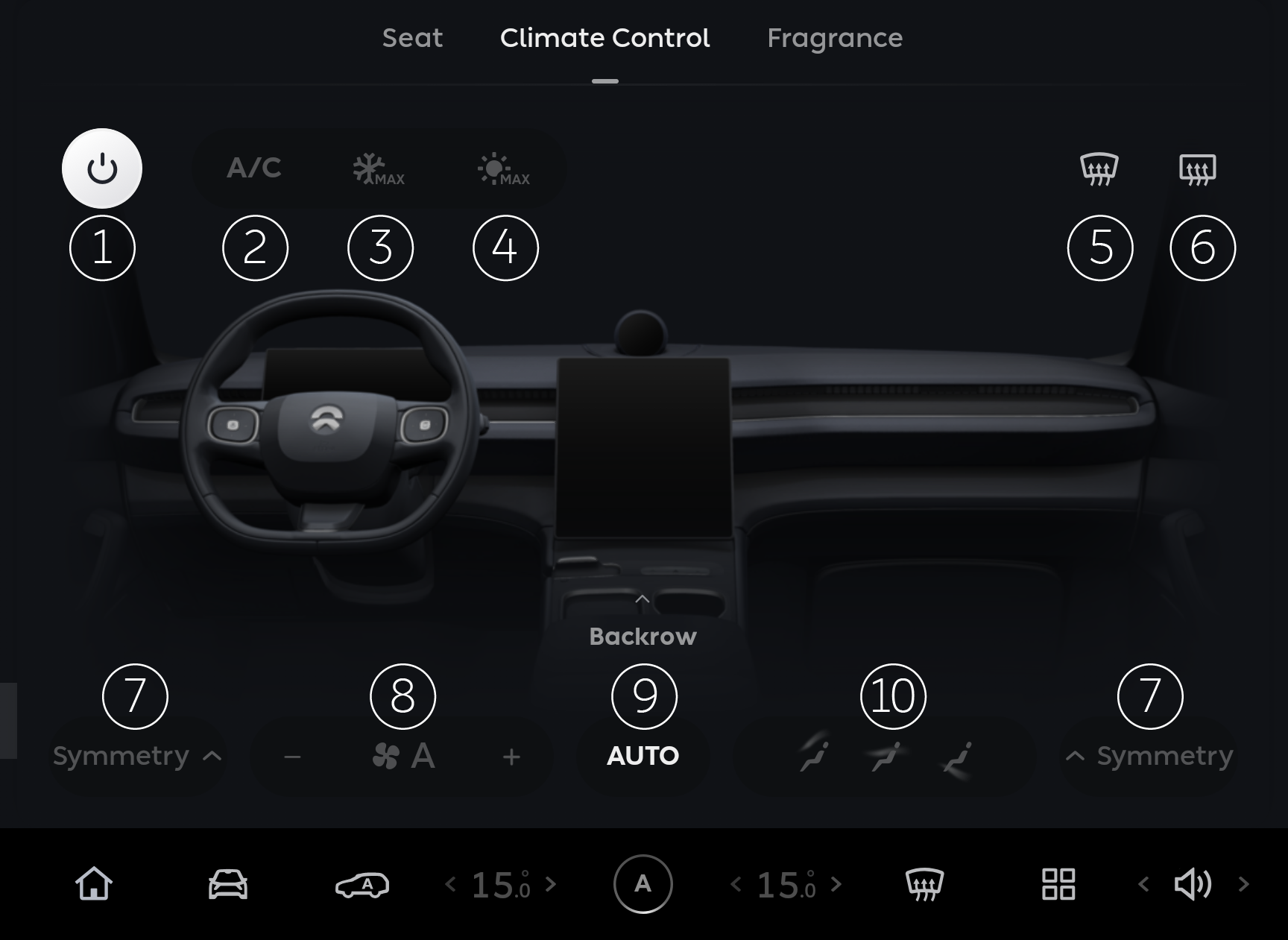

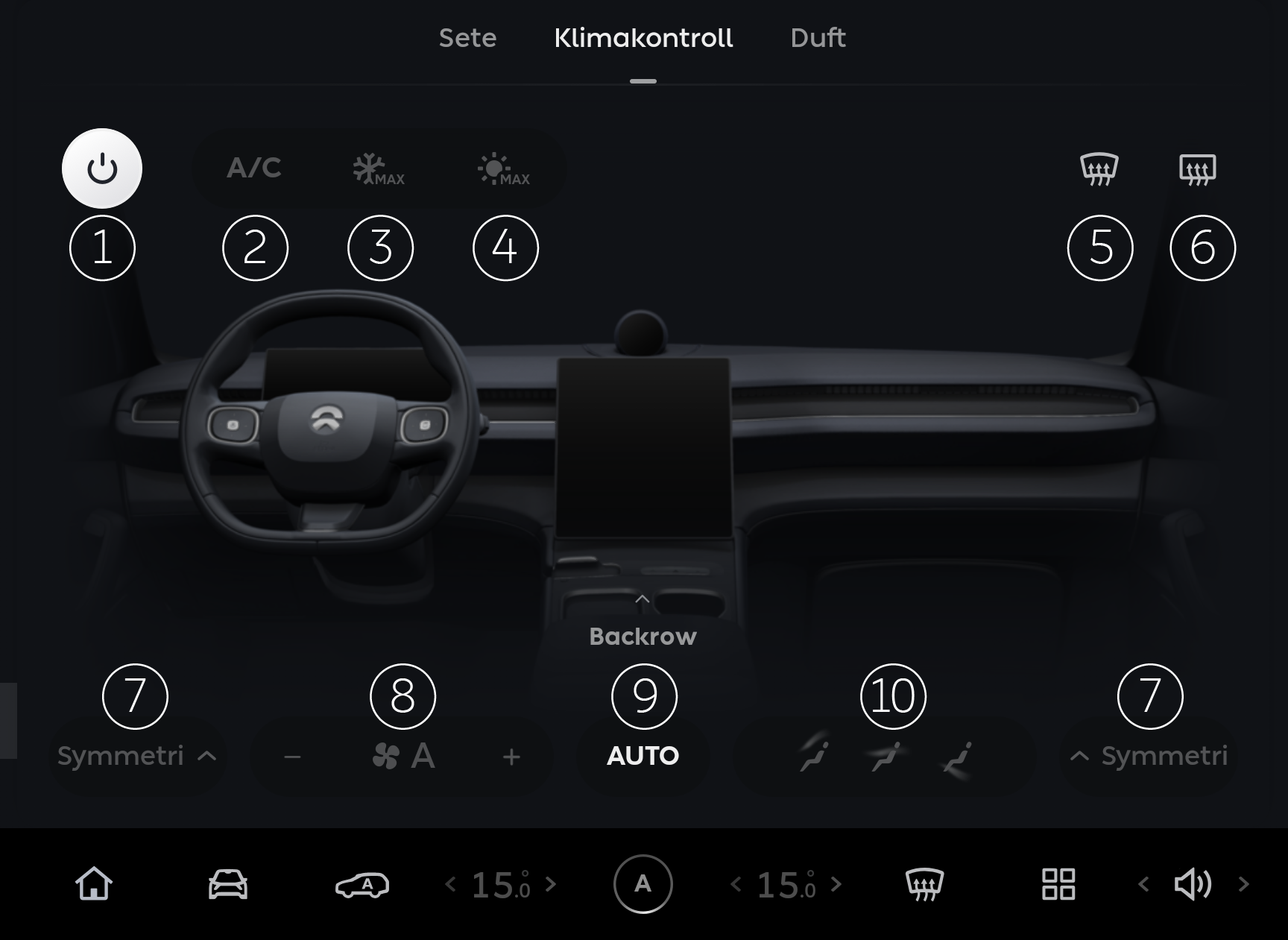

Front Row Air Conditioning Control Panel

When any page is displayed on the current center display, tap the temperature display or the current air conditioning status button at the bottom of the center display to go to the air conditioning control panel to control the temperature of the front and rear row air conditioning.

1. Front Row Air Conditioning Switch

   Tap this button to turn on the front row air conditioning.

   Tap again to turn off the front row air conditioning. At this time, if the rear row air conditioning is on, it will be turned off too.

2. Manual Mode (A/C)

   Tap this button to turn on the manual air conditioning (A/C) function, which allows the air volume and temperature to be set manually.

   If you turn off this button, the passenger compartment will enter the ventilation state.

3. Strong Cooling Mode

   Tap this button to turn on the maximum cooling mode. In this mode, the manual air conditioning (A/C) mode is turned on, recirculation is automatically switched on, the air volume of the air conditioning is set to the highest level, and the air distribution mode is face blowing.

   Tap this button again to exit the maximum cooling mode. Your vehicle will then return to the air conditioning state before the maximum cooling mode was set.

4. Strong Heating Mode

   Tap this button to turn on the maximum heating mode. In this mode, the manual air conditioning (A/C) mode is turned on, recirculation/outside air mode is automatically switched on, the air volume of the air conditioning is set to the highest level, and the air distribution mode is foot blowing.

   Tap this button again to exit the maximum heating mode. Your vehicle will return to the air conditioning state before the maximum heating mode was set.

5. Front Windshield Defrosting/Defogging

   When the front windshield defrosting/defogging function is turned on, the manual air conditioning (A/C) mode is turned on at the same time, the air distribution mode is defrosting mode, and the air circulation is switched to the automatic recirculation/outside air mode.

   If the outside of the front windshield is foggy. Turn on the wipers and automatic air conditioning. If the inside of the front windshield is foggy, turn on defogging for the front windshield. After the fog is cleared, switch to automatic air conditioning and turn on auto defogging for the air conditioning.

   Go to the Settings page in the control bar at the bottom of the center display, tap Comfortable Environment > Auto Defogging, and set the sensitivity. Front windshield defogging will automatically turn on when the inside of the front windshield is about to become foggy or slightly foggy.

6. Rear Windshield Heating

   The rear windshield heating function will be turned off automatically 15 minutes after it was turned on.

7. Ventilation Mode

   Closed: The driver side air vent is closed, but the four air vents in the front row cannot be closed at the same time.

   Free: The air vent angle can be adjusted separately for the two driver air vents.

   Symmetrical: The air vent angles are symmetrical for the two driver vents.

   Sweeping: The air vent angle is set to sweep up and down, left and right.

8. Air volume of front row air conditioning

   The air volume desired for the front row can be controlled with the "+" and "-" icons. Select from eight air volume levels available on this model.

9. Automatic Mode (AUTO)

   Tap this button to turn on the automatic air conditioning mode. In this mode, the temperature, air volume, airflow direction of the front and rear rows, and the air flow mode will be adjusted automatically according to the temperature set by you.

   Tap this button again to exit the automatic air conditioning mode, and your vehicle will remain in the current air conditioning status.

10. Air Distribution Mode

    You can select one of the following seven air distribution modes: defrosting, face blowing, foot blowing, face + foot blowing, foot blowing + defrosting, face blowing + defrosting, face + foot blowing + defrosting.

    Distribution Mode Icon	Air Distribution Mode
    	Defrosting Mode In cold and wet weather, defrosting mode, together with large air volume, can quickly remove fog and frost particles on the front windshield.
    	Face Blowing Mode Provides heating or cooling for the front row passenger compartment.
    	Foot Blowing Mode Provides heating or cooling for the feet of the front row passengers.
    	Face + Foot Blowing Mode Provides good comfort for the whole front row passenger compartment and feet.
    	Foot Blowing + Defrosting Mode Provides heating or cooling for the front row passenger's feet while defrosting the front windshield.
    	Face Blowing + Defrosting Mode Provides heating or cooling for the front row passenger compartment while defrosting the front windshield.
    	Defrosting + Face + Foot Blowing Mode Provides good comfort for the entire front row passenger compartment and feet while defrosting the front windshield.

Front Row Air Vents and Adjustment

The air vents in the front row of the vehicle are located at the front windshield, the instrument panel and the leg space under the instrument panel.

1. Defrosting air vent at front windshield

2. Face blowing air vent at instrument panel

3. Foot blowing air vent under instrument panel

To adjust the air vent at the front row instrument panel, do as follows:

Press and hold the blowing area on the center display and then slide up or down to control the vertical angle, and slide left and right to control the horizontal angle.

In the free mode, double-click the air vent position in the center display to close the corresponding air vent. However, at least one air vent must be left open.

Tips for Using Air Conditioning

• Make sure that the vent grille of the air conditioning is not blocked by foreign objects (leaves, snow, etc.).

• If the vehicle has been parked in the hot sun, opening the windows while running the air conditioning can create convection, which helps the vehicle to cool down faster.

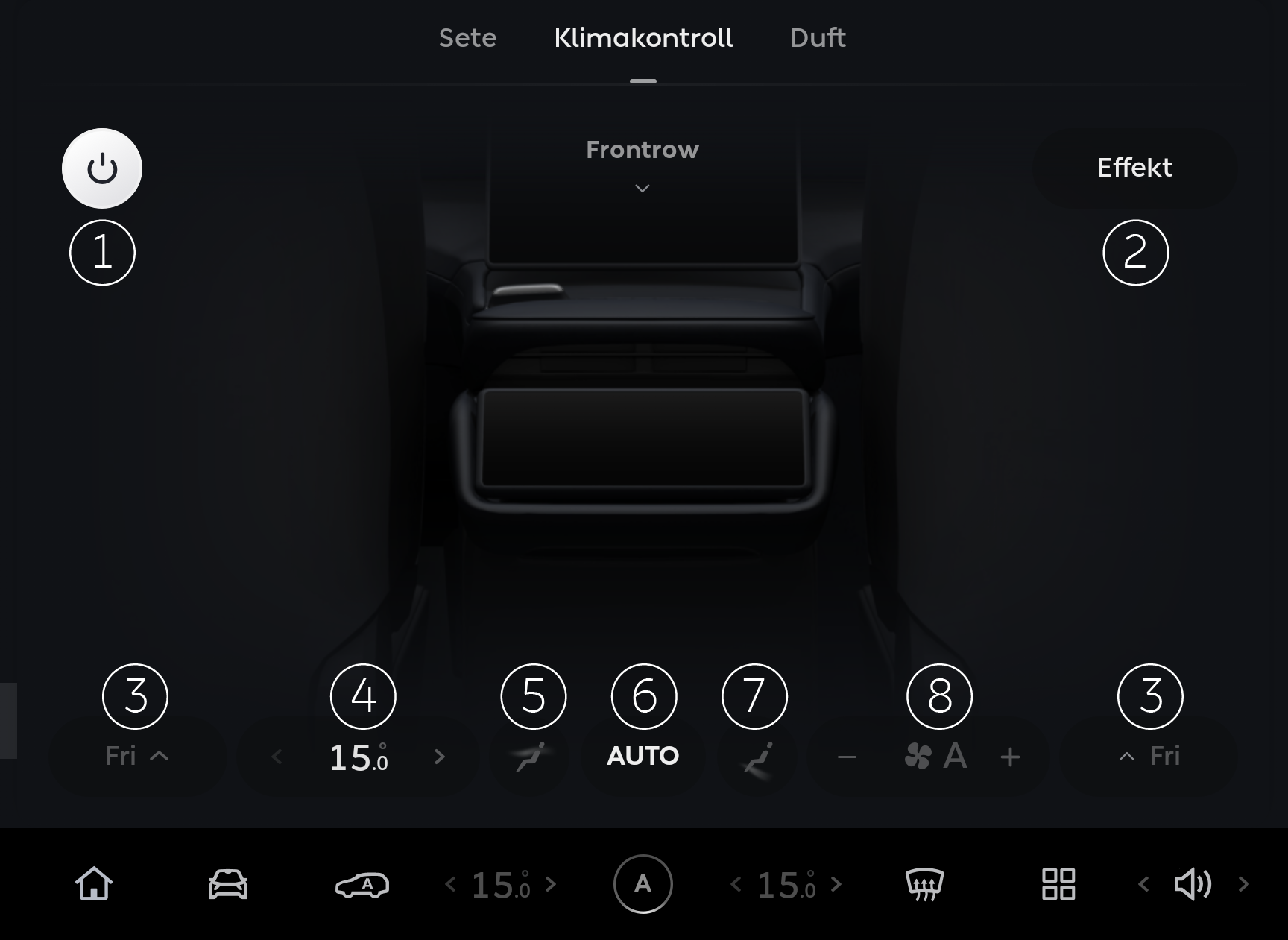

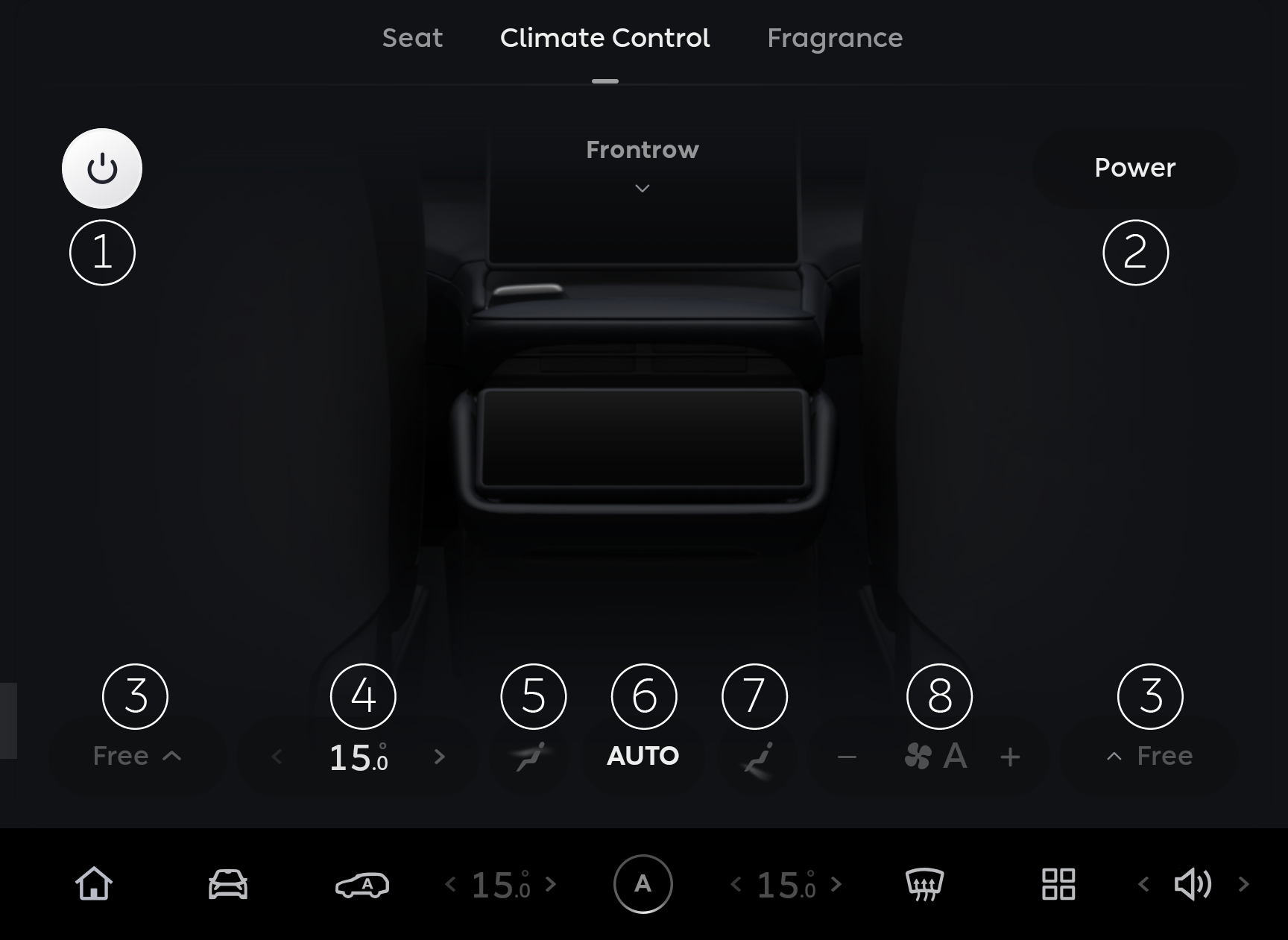

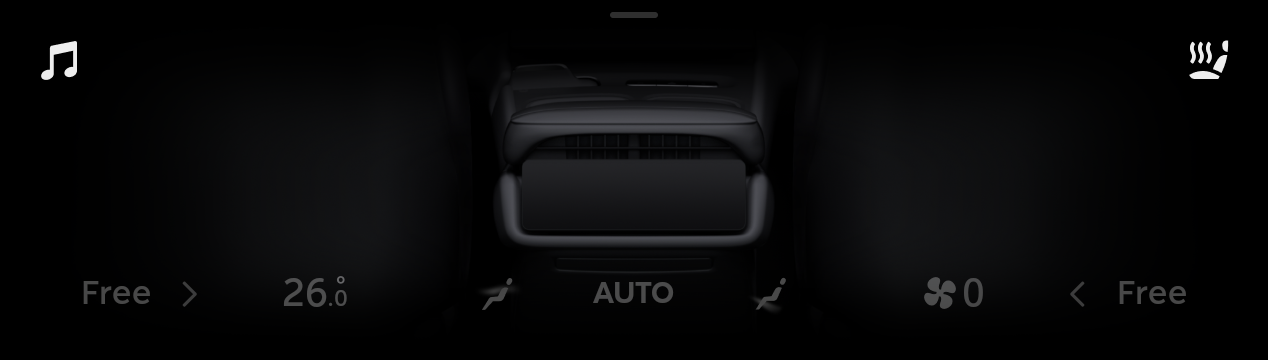

Rear Row Air Conditioning Center Display Control Panel

The vehicle includes a center display control panel for the rear air conditioning, allowing rear passengers to easily adjust the temperature and air volume.

1. Air Conditioning Main Switch

   It turns on or off the front and rear air conditioners.

2. Rear Switch

   Tap this button to turn on or off the rear air conditioner.

3. Rear Ventilation Mode

   Closed: To close the rear air vent, but the two air vents in the rear row cannot be closed at the same time.

   Free: The rear air vent angle can be adjusted separately.

   Sweep: The rear air vent angle is set to sweep up and down, left and right.

4. Rear Temperature Display

   Displays the target temperature of the rear seats, and tap to enter the temperature control panel.

   Hold and slide the temperature value left and right to adjust temperature. The temperature adjustment range is from 15 to 31 degrees Celsius.

5. Face Blowing Mode

   Provides heating or cooling for the rear passenger compartment.

6. Automatic Mode (AUTO)

   Tap this button to turn on the automatic air conditioning mode for the rear row. In this mode, the temperature, air volume, airflow direction of the rear rows will be adjusted automatically based on the temperature you set.

   Tap this button again to exit the automatic air conditioning mode, and your vehicle will remain in the current air conditioning status.

7. Foot Blowing Mode

   Provides heating or cooling for the feet of the rear passengers.

8. Air volume of rear row air conditioning

   The air volume desired for the rear row can be controlled with the "+" and "-" icons. Select from six air volume levels available on this model.

Rear passengers can use the rear control display to control the rear air conditioner.

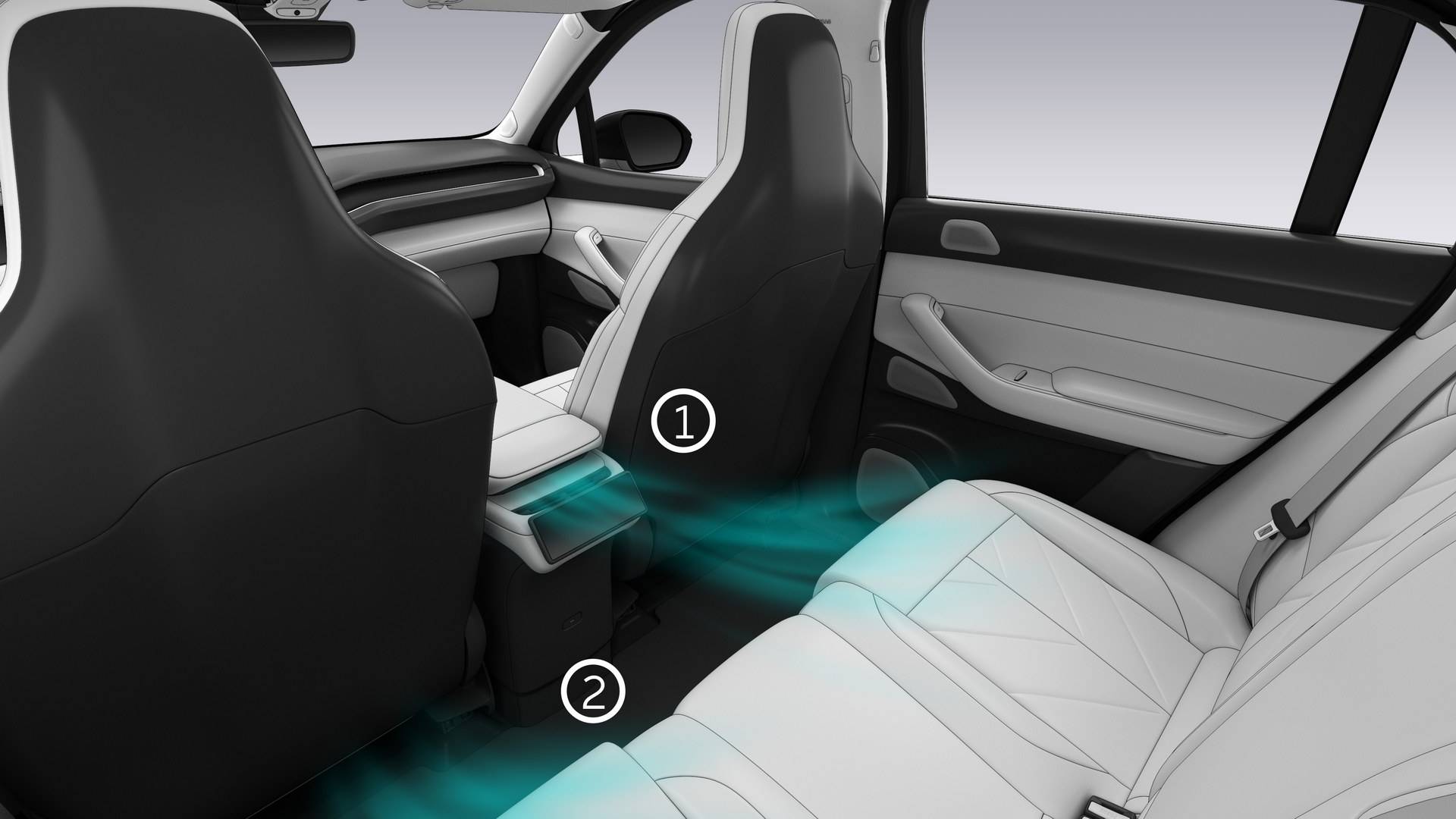

Rear Row Air Conditioning Vents and Their Adjustment

The rear row air conditioning vents are located at the bottom of the rear control display and the front passenger and driver’s seats.

1. Rear row face blowing air vents

2. Rear row foot blowing air vents

To adjust the rear row air vent do as follows:

Press and hold the vent on the center display or the rear control display, and then slide up or down to control the vertical angle, and slide left and right to control the horizontal angle.

In the free mode, double-click an air vent on the screen to close the corresponding air vent. However, at least one air vent must be left open.

PM2.5 Air Purification

View the current air quality in your vehicle at the upper right corner of the center display, and tap to switch to the corresponding air purification mode.

Negative Ion Sync On

Go to the Settings page in the control bar at the bottom of the center display, and tap Comfortable Environment > Negative Ion Sync On to generate negative ions while purifying the air, thereby further improving the air comfort in the vehicle.

Continuous Deodorization of Air Conditioning

If the air conditioning cooling is turned on in hot weather, some condensate may remain in the climate control system when parking. Go to the Settings page in the control bar at the bottom of the center display and select Comfortable Environment > Continuous Deodorization of Air Conditioning. When you leave and lock your vehicle, if the system detects the residual condensate in the climate control system, it will turn on the fan and run it at the maximum air volume to keep the evaporator and air pipe dry, thereby reducing the risk of bacteria breeding in the humid environment.

You can select one of the two drying levels: Standard (the fan works for about 3 minutes continuously) and Strong (the fan works for about 20 minutes continuously).

This function increases energy consumption in certain circumstances, so make sure that you plan your trip accordingly and turn the function off if necessary.

Remaining Life of Air Conditioning Filter Element

After replacing the filter element, go to the Settings page in the control bar at the bottom of the center display and select Comfortable Environment > Air Conditioning Purifier Filter Element Life Timer to reset the filter service life timer.

You can go to the Media interface from the main screen of the center display to select the program for listening to music:

• Select "Tidal" to discover and listen to your favorite music. You can also use it to build a library of your preferred songs or albums.

• Insert a USB flash disk into the USB port in your vehicle to play the music in the USB flash disk.

• After a mobile device is connected to your vehicle's Bluetooth, you can select "Bluetooth Music" to play the music in the mobile device.

You can go to the Settings page on the leftmost side of the control bar at the bottom of the center display, and tap Sound to set the volume for media music. Select "Sound Field" to set the sound field effect in passenger compartment. If necessary (for example, when a child is sleeping in the rear row), the rear mute function can be turned on.

Dolby Atmos provides a finely tuned, balanced audio experience with an optimal music listening configuration for inside of the vehicle. As a result, the vehicle becomes an ideal immersive space for enjoying music, which sounds more stereosonic and richer than ever before. This product is manufactured under the license of Dolby Laboratories. Dolby, 杜比, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. This is an unpublished product. © 2012-2021 Dolby Laboratories, Inc. All rights reserved.

You can select your navigation route on the navigation interface from the main page of the center display. If you have previously sent a navigation route through your mobile app, the selected navigation route will be displayed automatically when the center display is turned on.

Tap to set navigation options, such as route preference, navigation voice broadcast, and map display mode.


NOMI can capture your selfies inside the car upon request. The center display's Photos application is where videos or photos are stored. To transfer them, use a USB cable.

Nap Mode

You and your family can fall asleep to the sounds of nature in the vehicle and wake up to a soft alarm to embrace a beautiful world.

You or your authorized users can enter the application launcher to open the Tide > Nap page where sound scenarios and alarm time for the nap can be set and memorized for the specific account.

• Nap by Time: You can set a nap countdown to wake you up at the set time. You can also choose to continue or end the nap upon the alarm.

• Nap by Charge: If the vehicle is in the DC charging process, you can set a battery level within the charging limit to have a nap until the set level is reached.

• More settings are provided, including volumes and timed playback of sleep aid sounds, alarm clock sounds and volumes, and seat position restoration switch upon the end of nap.

• Set sleep aid sound scenarios.

After the vehicle enters the Nap Mode, the in-vehicle lighting will be turned off, with windows and doors closed and locked, the climate control will be automatically set to the temperature comfortable for a nap, and the air purifier will be automatically turned on. If you sit in a front seat, the seat will automatically move to the relax position (if set previously) or the default position. NOMI will enter the Do Not Disturb Mode to create a relaxing atmosphere for you. After the nap ends, the vehicle will restore the settings before the nap.

Meditation Mode

The Meditation Mode provides an immersive experience to give your brain break, so that you can feel your inner self and your surroundings and reduce your physical and mental exhaustion.

You or your authorized users can enter the application launcher to open the Tide > Meditation page where sound scenarios and sound volumes for the meditation can be set and memorized for the specific account.

After the vehicle enters the Meditation Mode, the in-vehicle lighting will be turned off, with windows and doors closed and locked, the climate control will be automatically set to the temperature comfortable for meditation, and the air purifier will be automatically turned on. NOMI will enter the Do Not Disturb Mode to create an immersive and quiet atmosphere for you. After the meditation ends, the vehicle will restore the settings before the meditation.

Breathing Mode

The Breathing Mode helps you learn how to breathe properly, calm yourself down, and relieve stress.

You or your authorized users can enter the application launcher to open the Tide > Breathing page where breathing scenarios and background sound scenarios and volumes can be set and memorized for the specific account.

Controls on Front Center Display

After you or authorized users log in, the vehicle's center display can help you easily access rich personal resources such as music, navigation, and radio stations. You can also customize your favorite content and store it in your personal account. The personalized content saved in your account can be displayed the next time you login in to your account. You can switch different accounts freely in your vehicle, and the customized content for different accounts will be presented to you.

You can select different functions (media, navigation, etc.) on the main page of the center display. The functions are as follows:

1. Prompt Bar

   Displays prompt messages, warning messages, warning icons, etc.

2. Tile Function Menu

   Press and hold to switch to different function tile, such as music, weather, etc.

3. Main Page

   To return to the main page, tap this button or five-finger pinch anywhere on the center display.

4. Vehicle Settings

   Configure the settings for common functions.

   You can also swipe right from the left edge of the center display to enter the Quick Settings page. On this page, you can access frequently used functions quickly and customize quick access functions.

5. Air Conditioning and Comfort Function Panel

   Quickly set the air conditioning, seats, and comfort functions here.

6. Application Center

   Select different applications, such as weather and photos.

7. Volume Settings

   Quickly set the system and media volume.

Controls on Rear Center Display

The rear center display can control the functions of the rear seats, media, etc. The functions are as follows:

• Swipe left or right horizontally, or swipe left or right from the edge of the other side to switch different vehicle functions, such as air conditioning, seat comfort, ambient lighting, fragrance, etc.

• Swipe down from the top edge to enter Quick Control Center, where you can adjust screen brightness, volume, and screen saver.

• Swipe up from the bottom edge to enter Media Control Center, where you can control the currently playing media.

Starting the Vehicle

The vehicle can get ready to drive when the following conditions are met:

1. The driver is seated.

2. Close the driver's side door or press the brake pedal.

The driver can start the vehicle in many ways such as with the smart key, NFC card, and mobile phone NFC.

If the mobile phone NFC or NFC card is used, place the mobile phone with the NFC key or NFC card on the wireless charging board, keep the mobile phone unlocked and fit it into the wireless charging board, and then try to engage the gear and start the vehicle.

Gear Shift

After pressing the brake pedal and toggling the gear shifter into the D or R gear, the digital instrument cluster displays , indicating that power output is ready. After the shift, the digital instrument cluster will display the real-time gear position of the vehicle. If the shift fails, the digital instrument cluster will prompt you to confirm the current gear.

Go to the Settings page from the control bar at the bottom of the center display, and tap Sound > Shift Prompt Tones to enable or disable the tones.

For example, the vehicle can be switched to neutral gear (N gear) in specific conditions such as while pushing the vehicle and automatic washing.

Go to the Settings page from the control bar at the bottom of the center display, and tap Driving > Trailer/Wash Mode to enable or disable neutral gear (N gear).

Electrical Parking Brake (EPB)

When switching to the parking gear, the parking brake will be automatically activated, and the digital instrument cluster displays , indicating that the Electrical Parking Brake (EPB) has been enabled.

When locked from the outside of the vehicle, the vehicle's power will be automatically turned off, and the center display and digital instrument cluster will be shut down at the same time.

You can switch the vehicle to the parking gear in the following ways.

• Press the P shift button on the side of the gear selector in the center console.

• Go to the Settings page from the control bar at the bottom of the center display, tap Driving > Electrical Parking Brake (EPB), and slide the button to park.

When the digital instrument cluster displays , it indicates that the brake system is faulty. Please drive carefully and contact the NIO Service Center for maintenance.

Snow Mode

The vehicle has a full-time all-wheel-drive system that distributes power evenly to the front and rear wheels and features a relatively soft throttle pedal, so as to guarantee a smooth start and to avoid slipping on slippery surfaces such as ice. This makes driving through snowy terrain secure.

Go to the Settings page from the control bar at the bottom of the center display, and tap Driving > Snow Mode to turn this function on or off.

You can switch to any regular drive mode or tap the Snow Mode button again to exit the function.

Easy Pass Through

The Easy Pass Through function allows the vehicle to better handle complex conditions such as potholes, roadside shoulders, deep snow, etc.

Go to the Settings page from the control bar at the bottom of the center display, and tap Driving > Easy Pass Through to turn this function on or off.

After enabling the function, the vehicle's suspension height will rise to its maximum.

When the following situations occur, Easy Pass Through will automatically exit:

• The vehicle speed exceeds 30 km/h

• The drive mode changes

Super Eco Mode

The power consumption of the vehicle can be reduced to attain greater range by disabling features that are not required for driving to meet the driving needs at the minimum.

In Super Eco Mode, the vehicle's top speed is constrained, driver assistance and other features are momentarily inaccessible, and comfort features like air conditioning and ambient lighting are also restricted.

Go to the Settings page from the control bar at the bottom of the center display, and tap Driving > Super Eco Mode to turn this function on or off.

You can switch to any regular drive mode or exit the Super Eco Mode by tapping the button again.

Autohold

The function of Autohold is to keep the vehicle stationary for temporary parking when the brake pedal is released.

Go to the Settings page from the control bar at the bottom of the center display, tap Driving > How to Activate Autohold and select the corresponding method to activate Autohold.

• Flooring: Step on the brake pedal until the vehicle stops, then slightly release and step on the pedal again to activate Autohold

• Auto activation: Step on the brake pedal until the vehicle stops, and then Autohold will be automatically activated.

When Autohold is activated, the icon will be displayed on the digital instrument cluster. When active, you can step on the accelerator pedal or the brake pedal to deactivate Autohold.

You can also floor the brake pedal to activate Autohold in an emergency.

You can also activate Autohold when parking on an uphill road, where the braking system will provide sufficient braking force to keep the vehicle stationary in accordance with the degree of the slope.

Emergency Braking

In the event of a brake pedal failure, you can activate Emergency Braking by pressing the Park gear button, which will produce full braking deceleration under normal circumstances to stop the vehicle.

• Press and hold the Park gear button to activate Emergency Braking.

• Release the Park gear button, or step on the accelerator pedal to deactivate Emergency Braking. To re-activate Emergency Braking, you will need to press the button again.

Hill Start Assist

Hill Start Assist (HSA) prevents your vehicle from rolling backwards when starting uphill.

When your foot switches from the brake pedal to the accelerator pedal, the pressure on the brake pedal will be maintained in the brake system for a maximum of 2 seconds. The temporary braking effect will disappear after 2 seconds or when you accelerate.

Enhanced Head-Up Display System

The enhanced head-up display system (HUD) mirrors and projects relevant information such as the vehicle speed, navigation, traffic signs, cruise signs, and Autohold through the front window glass above the digital instrument cluster.

Go to the Settings page from the control bar at the bottom of the center display, and tap Display > Enhanced Head-Up Display (HUD) System to configure.

• Turn on HUD

• Active brightness adjustment

• Height

• Inclination

Once the height is set, the system will automatically memorize it.

Go to the Settings page from the control bar at the bottom of the center display, and tap Display > Switch Navigation Mode of HUD, and select different navigation display modes to meet different information acquisition requirements.

• Auto Mode: actively switches between Detailed Mode or Indirect Mode according to road conditions

• Detailed Mode: displays the driving route and current location in real time in the form of a small map

• Simple Mode: provides guidance information for road navigation only

Start Reminder

After the vehicle stops by following the vehicle ahead, if the vehicle ahead drives away, Start Reminder will send you an alert.

Go to the Settings page from the control bar at the bottom of the center display, and click Driver Assistance > Start Reminder to turn this function on or off.

While enabled, when you manually stop the vehicle as the vehicle ahead stops, and do not follow as the vehicle ahead drives away, Start Reminder will send you an alert.

Cyclic Video Recording

The Digital Video Recorder (DVR) includes the main view angle and the left and right surround view angles, supporting simultaneous recording and real-time previews. The video player supports the zooming function, which can play while zooming in. It also supports screenshots, which can be saved in the photo album, and the photos can be uploaded to the cloud and shared to the mobile phone.

• Main view angle: only records the main view angle of the camera, which supports a maximum resolution of 3840x1696 and has a picture fluency of 30 frames per second.

• Five view angles: records all view angles of the camera, with four surround view cameras that support a maximum resolution of 1280×1000 and have a picture fluency of 30 frames per second.

The longest continuous cyclic recording time for the main view angle of Digital Video Recorder (DVR) is about 10 hours, and 5.7 hours for the five view angles. When the corresponding time is exceeded, the original video file will be overwritten.

The contents of the cyclic video recording will be stored in the Photos > Cyclic Videofolder. If you want to save a specific video file, insert a storage device such as a USB flash drive, select the file, and transfer it to save it in the device.

Go to the Settings page from the control bar at the bottom of the center display, and tap Safety > Digital Video Recorder (DVR) to enable or disable this function.

• When the function is enabled, will be displayed at the top of the center display.

• When recording begins, will be displayed at the top of the center display.

• When the function is disabled, will be displayed at the top of the center display.

The Digital Video Recorder (DVR) supports sound recording and watermarking functions, which are disabled by default and need to be enabled manually.

In the Settings for the recording page of the Digital Video Recorder (DVR), Tap Sound Recordingto enable or disable the function.

In the Settings for the recording page of the Digital Video Recorder (DVR), Tap Traffic Data Watermarkingto enable or disable the function.

When the sound recording function is enabled, will be displayed at the top of the center display, and the Digital Video Recorder (DVR) can record sound.

When the Traffic Data Watermarking function is enabled, in addition to time watermarking, the video will add the watermarking of traffic data such as vehicle speeds, gears and turn lights to help judge the circumstances of an accident.

Emergency Video Recording

The emergency video recording function can record video images in the vehicle's memory. If the Autonomous Emergency Braking is triggered or the airbag is detonated, the emergency video will be recorded and saved.

The emergency videos include videos recorded 30 seconds before the emergency and 60 seconds after the emergency. The emergency video recordings will be stored in the Photos - Emergency Videofolder.

Quick Video Recording

The quick video recording function covers most manually triggered scenarios, such as a violation of regulations, deliberate provocations, fun, etc., which can be saved in time, recorded conveniently and found quickly.

Go to the Quick Settings page by swiping right on the home page of the center display, tap Quick Video Recording to start recording.

You can also press and hold the Middle button on the right side of the steering wheel to customize it as the "Quick Video Recording" function. After saving the Settings, press and hold the Middle button on the right side of the steering wheel to trigger Quick Video Recording.

The quick video recording saves videos recorded 30 seconds before and 60 seconds after it is triggered. The quick video recording recordings will be stored in the Photos - Emergency Videofolder.

Enable/disable the Parking Camera

You can enable the parking camera in the following ways:

• Swipe right from the main page of the central display to enter the shortcut settings page, and click 360 surround view to open the 360° panoramic camera.

• Enter the application centre from the central display and click Parking to open the memory view (360° panoramic camera or dual view camera).

• Engage the vehicle in R gear and open the memory view (360° panoramic camera or dual view camera).

• Press and hold the middle button on the right side of the steering wheel, set the custom function to 360 surround view, and then open the 360° panoramic camera.

• Wake up NOMI, enable Parkingwith your voice, and open the 360° panoramic camera.

You can click on the upper right side of the parking camera page and select to turn off the warning tone. At the same time, you should bear all the risks caused by turning off the warning tone.

Parking camera page

The parking camera consists of two pages: 360° panoramic camera and dual view camera. Click the button on the upper left side of the 360° panoramic camera to switch the pages.

Button	Function
	Switch to the dual view camera.
	Switch to the 360° panoramic camera.

Parking camera view

After opening the dual view camera page, you can switch to the front view and rear view by switching between the drive gear (D gear) and the reverse gear (R gear), or click the 3D view, front view, rear view, left and right hub view, front hub view and rear hub view in the lower left area of the central display page to switch between different views.

When using the 3D view, you can adjust the viewing angle by swiping with one finger, adjust the viewing distance by zooming in with two fingers and adjust the viewing height by swiping up and down with two fingers.

Adjusting the Brightness of the Parking Camera

Auto Adjustment

Click "Quick Control" in the parking camera interface to find "Brightness Adjustment", then select "Auto". The brightness of the central display can be automatically adjusted along with the brightness of the environment.

Manual Adjustment

Click "Quick Control" in the parking camera interface to find "Brightness Adjustment", then slide the brightness adjustment slider to manually adjust the brightness of the central display. Before manually adjusting the brightness of the central display, please ensure that the "Auto" switch is OFF.

Dynamic transparent chassis

Dynamic transparent chassis refers to a transparent effect that can be presented, via technical processing, on the road images collected by the camera in advance when the vehicle is moving, and transmitted to the central display of the vehicle so that the road conditions can be seen in the vehicle.

You can enable this function on the Settings page of the parking camera. After the dynamic transparent chassis is enabled, the transparency of the model during driving can be customized, which includes four options: "opaque", "low", "medium" and "high".

Blind area around the vehicle model

Due to the relative relationship between the camera installation position and the body, there is a blind area of about 30cm around the vehicle in the 360° panoramic camera page. Please pay attention to the actual situation around your vehicle when parking.

Seat Belt Instructions

Seat belts are the primary passenger safety protection system which can protect passengers from serious injury in the event of an accident especially when used with airbags.

There are pretensioning devices for both the front and rear seats of the vehicle (double pre-tensioners for the front seats). This kind of device provides a certain pretension force for the seat belt in the event of a serious collision. They retract part of the seat belt quickly to protect passengers reliably. At the same time, they prevent excessive restraint force of the seat belt that could cause injury to passengers.

Seat Belt Unfastened Warning Light

All seats in your vehicle are equipped with seat belts. When you, as a driver, are seated in the driver seat (and the driver's door is closed or the brake pedal is depressed) or your vehicle is driving, if the front passenger does not fasten his/her seat belt, the Seat Belt Unfastened Warning Light on the digital instrument cluster will illuminate to remind you and the passenger on the front passenger side to fasten his/her seat belt immediately. If your vehicle speed is higher than 22 km/h and his/her seat belt is still not fastened, the Seat Belt Unfastened Warning Light will flash and the warning chime will sound. After his/her seat belt is fastened, the warning light and warning chime will disappear. If the seat belt remains unfastened, the warning chime will stop after 100 seconds, but the warning light will always be on.

When you, as a driver, are seated in the driver seat (and the driver door is closed or the brake pedal is depressed), if a rear row passenger does not fasten his/her seat belt, the Seat Belt Unfastened Warning Light on the digital instrument will illuminate to remind the rear row passenger to fasten his/her seat belt immediately. The warning light will go out after the seat belt is fastened.

When a rear row seat belt is not fastened:

• If a rear row seat belt is not fastened when the vehicle is driving, the warning light will go out automatically after being on for 33 seconds.

• If your vehicle speed is higher than 22 km/h and a rear row passenger releases his/her seat belt, the warning chime will sound briefly at the same time when the Seat Belt Unfastened Warning Light illuminates. This warning light will go out after all seat belts are fastened.

• If the rear row passenger has not fastened his/her seat belt, the warning light will go out automatically after 33 seconds.

Use of Seat Belts

The correct use of seat belt is as follows:

1. Pull the seat belt tongue across the front of your body. The upper part of the seat belt should be across your shoulder, and the lower part of the seat belt shall be across your hip. Do not put the seat belt across your neck or abdomen. Insert the tongue into the buckle for the same seat until you hear a click. Pull the seat belt to confirm that the seat belt is locked.



2. Press and hold the seat belt height adjustment button and move the seat belt up and down to adjust the seat belt height. After the seat belt reaches a comfortable height, release the adjustment button. After the height is adjusted, pull the seat belt shoulder part to confirm that the seat belt is locked.

To release the seat belt, press the red button at the buckle, and the tongue will pop out. Now the seat belt can be retracted by hand. The tongue can be rolled back automatically into the upper fixing device of the seat belt.

Airbag Instructions

Airbags are a supplementary restraint system that works with the seat belts. Airbags quickly deploy in serious accidents to protect the head and chest of passengers and reduce the severity of injury. However, they do not prevent limb injuries or scrapes and bruises. Therefore, the airbags should be used together with the seat belt to provide maximum protection.

Your vehicle is equipped with collision sensors. In case of a frontal or side collision that meets the conditions (depending on the type, angle and object of collision) for the airbag system to deploy, the airbags will deploy from their position. The gas generator inside the airbag will ignite and release gas at high pressure to blow open the cover of the airbag. Gas will fill the airbag to form a buffer protection layer that protects passengers, thereby reducing the risk of injury or death.

The vehicle airbag system includes frontal airbags and side airbags. The word “AIRBAG” is marked on the places where the airbag is placed to remind you that there is an airbag herein.

• The front airbags include the front row head airbags, which are located in the trim cover of the steering wheel and at the ceiling of the front passenger side;

• The side airbags include the front row side airbags (located on both sides of the driver's seat and the outside of the front passenger seat) and the curtain airbags (located above the doors on both sides, in the ceiling area from the A pillar to the C pillar).

1. Driver's front airbag

2. Front passenger's front airbag

3. Front seat side airbag

4. Curtain airbag

5. Front row middle airbag

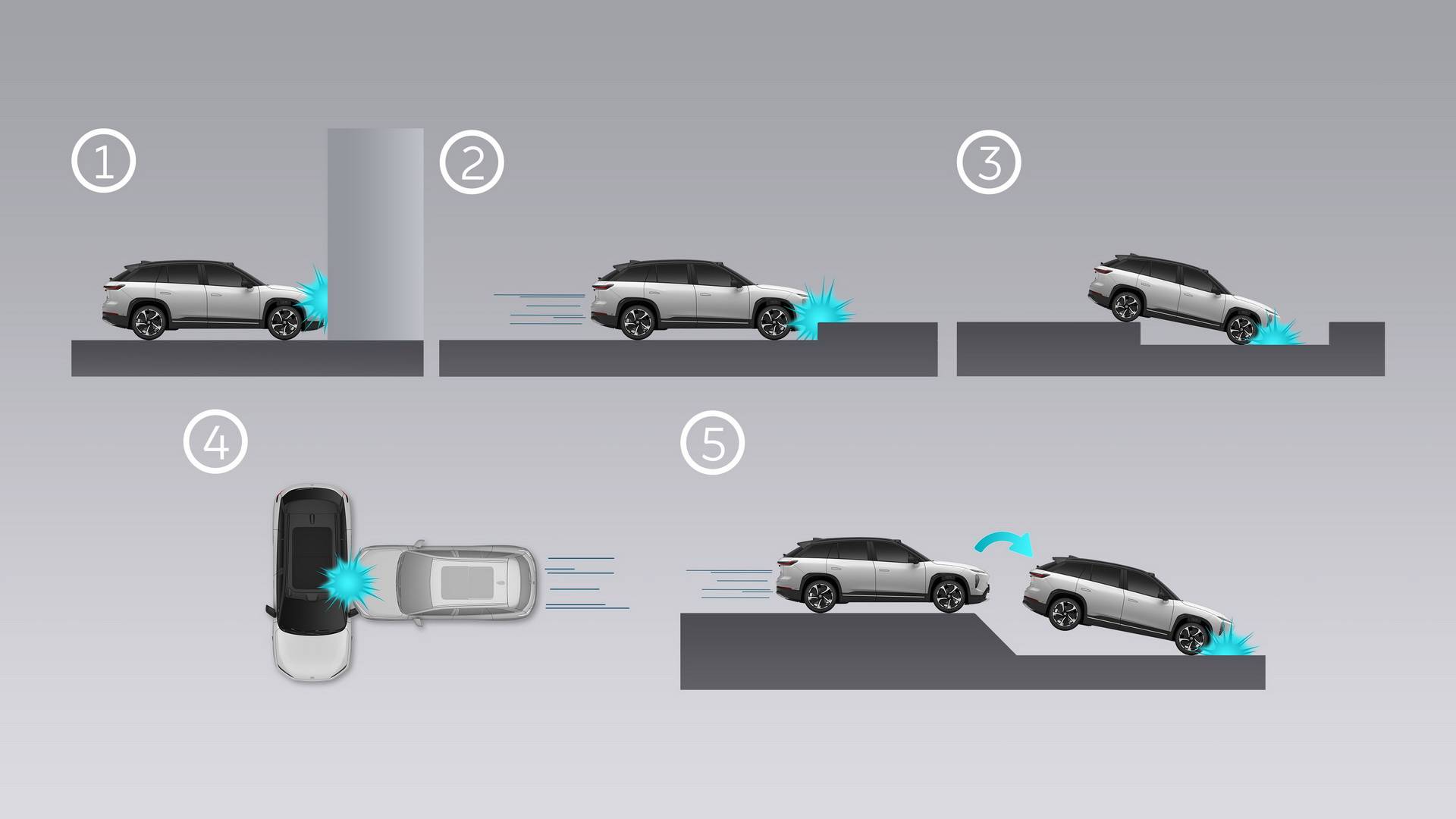

Airbag Deployment Conditions

The airbag may deploy in the following conditions:

1. High speed frontal impact with a wall or vehicle.

2. Impact with hard roadbed.

3. Falling into a deep ditch.

4. Side impact by a vehicle traveling at a high speed.

5. Leaving the road surface and then impacting it violently.

The airbag may not deploy in the following conditions. Please use the seat belt correctly to protect passengers:

1. Impact with a tree, column or other slender objects.

2. Rear collision from a vehicle behind.

3. Lateral roll.

4. Collision with or getting stuck under the rear of the truck in front.

5. A collision with a vehicle from the side at the nose of the vehicle.

6. A collision with a wall from the side at the nose of the vehicle.

7. Side collision with a post.

8. Side collision at the front of the vehicle at a certain angle.

9. Side collision on the body of the vehicle at a certain angle.

10. Partial side collision.

Airbag Warning Light

The airbag warning light indicating the airbag status is displayed on the digital instrument cluster. If this warning light is on after the digital instrument cluster is started, please stop using your vehicle and contact the NIO Service Center immediately.

Deactivation of Front Airbag

Because the airbag expands rapidly and has a large impact force when it deploys, it is safer for the front passenger to stay at least 25 cm away from the front airbag. However, if a child or a passenger with special medical needs must ride in the front row, go to the Settings page in the control bar at the bottom of the center display, tap Driving > Front Passenger Airbag, and select the option to turn off the front passenger airbag. At this time, the icon appears at the top of the center display to remind you that the front airbag has been disabled to prevent the front airbag from causing serious injury to the special front passenger.

Safety Measures after Airbag Deployment

Manually Turning On/Off Child Protection Locks

Tap Child Protection Locks - Rear Doors/Windows, which will be highlighted if the feature is on. Tap again to turn it off.

Failure to turn on or off the child protection lock of the corresponding door/window will result in a pop-up window appearing on the center display. Repeat the operation again until success.

Important Instructions for Using Child Safety Seats

Child Safety Seat Grouping

Only a child safety seat that is approved and suitable for the child is allowed to be used. Children taller than 1.5 meters can use the vehicle seat belts as would an adult. If a child safety seat needs to be used, it must comply with relevant regulations or standards.

Selection of Child Safety Seat

There is a warning label for the front row airbag on the sun visor on the front passenger side.

To place a child safety seat in the front row seat, you need to disable the front row airbag. Go to the Settings page in the control bar at the bottom of the center display, tap Driving > Front Passenger Airbag, and turn off the front passenger airbag. After doing so, the icon appears at the top of the center display to remind you that the front row airbag is disabled.

Children should use a child safety seat or seat belt in either outer rear seat according to the age, height and weight of the child:

• Reclining child safety seats should be used for infants whose weight less than 13 kg. They should be installed rearwards in rear seats whenever possible.



• Child safety seats with safety platforms or five-point seat belts should be used for children with a weight of 9-18 kg. It is recommended to install them rearwards in rear seats.



• Forward-facing child safety seats should be used for children with a weight of 15-25 kg. They should be installed in rear seats in coordination with seat belts.



• Child booster cushions should be used for children with a weight of 22-36 kg and a height less than 1.5 meters. They should be installed in rear seats in coordination with seat belts.



Installation of Child Safety Seat

Before installing a child safety seat, please read the instructions for the child safety seat carefully to confirm that it can be installed in your vehicle. If the vehicle seat belt or ISOFIX connection can be used to fix the child safety seat according to the installation method of the child safety seat, it is recommended to use the ISOFIX connection preferentially.

• Securing with Vehicle Seat Belt

  Install the child safety seat in the rear seat, put the vehicle seat belt through the child safety seat and insert the tongue into the buckle. Make sure that the seat belt is straight, not twisted. Pull the seat belt to confirm that it cannot be pulled out.

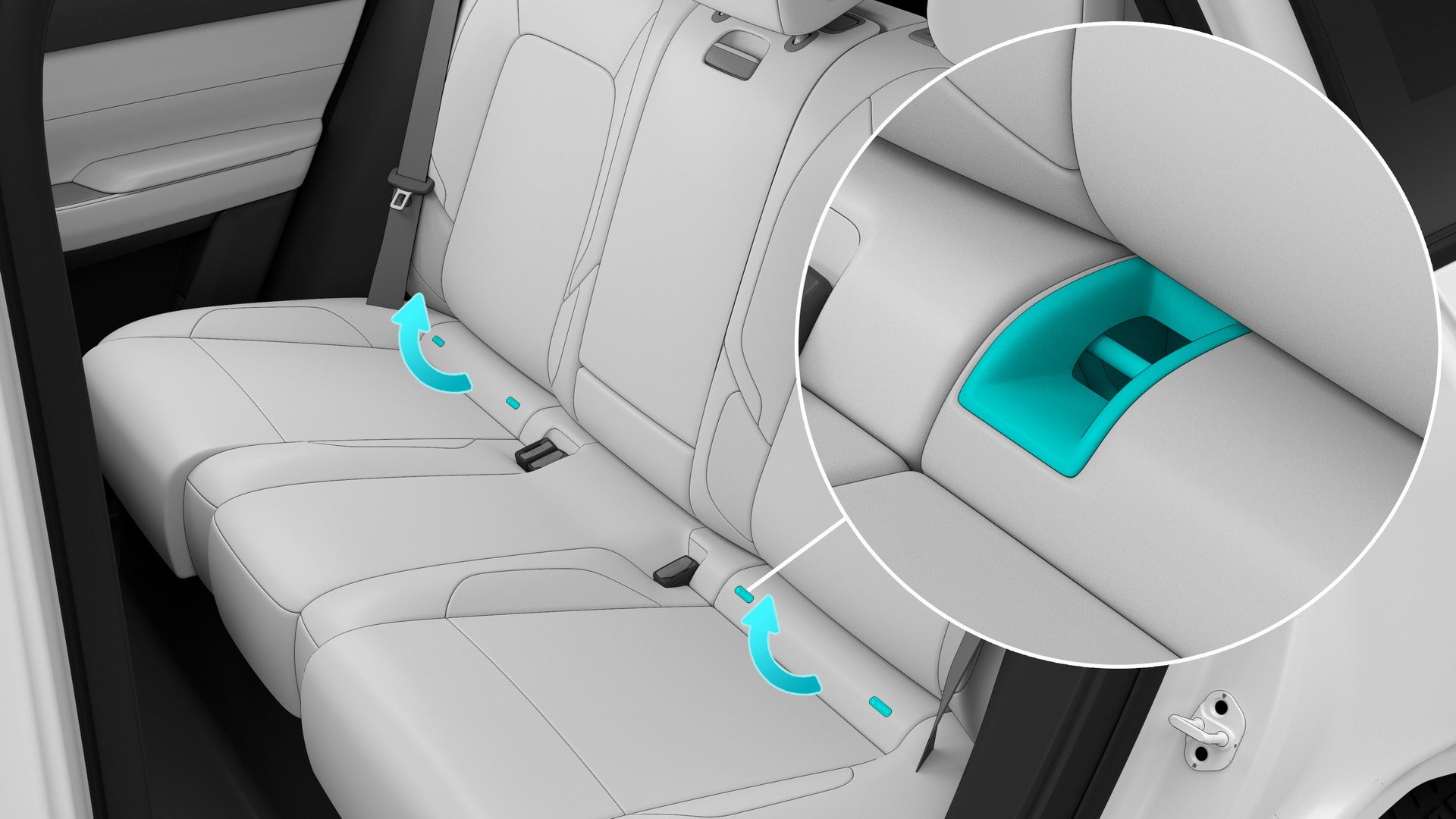

• Securing with ISOFIX Connection

  Both outer rear seats in your vehicle are equipped with ISOFIX connections suitable for installing child safety seats. The ISOFIX connection is hidden under the cover with markings. After opening the cover, insert it into the gap between the seat backrest and the cushion, and then use the ISOFIX connection to install the child safety seat.

  1. Lift the cover with ISOFIX sign, and insert the lower part of the child safety seat into the hook in the seat connection until you hear a click.



  2. Pass the upper fixing belt of the child safety seat under the seat headrest and connect it with the hook in the safety device at the back of the rear seat.



  3. Pull the child safety seat hard to check whether it is firmly installed.

Precautions and Restrictions

The following situations may lead to a camera recognition disorder and prevent the Forward Collision Warning from operating as expected, which include but are not limited to:

• Changed installation position of camera

• Blocked or dirty camera

• Reduced recognition capability due to dim surrounding environments, such as at dawn, dusk, night, or in a tunnel, etc.

• Sudden changes in ambient brightness, such as tunnel entrances or exits

• Large shadows cast by buildings, landscapes or large vehicles

• When the camera is slanted by the sun or exposed to direct sunlight

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera

• Wet roads

• The camera is out of focus or faulty

The following situations may lead to a LiDAR recognition disorder and prevent the Forward Collision Warning from operating as expected, which include but are not limited to:

• Changed installation position of LiDAR

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead

• Driving on wet or waterlogged roads

• Water, dust, transparent vehicle coverings, color-changing film, micro-scratches, oil sludge, dirt, ice, snowfall and other obstructions on the LiDAR window

• Overheating of the LiDAR caused by prolonged sun exposure

• Due to the limitations of LiDAR characteristics, in rare special cases, false alarms may occur for traffic signs and high-speed anti-collision barrels in high-speed and elevated sections of road

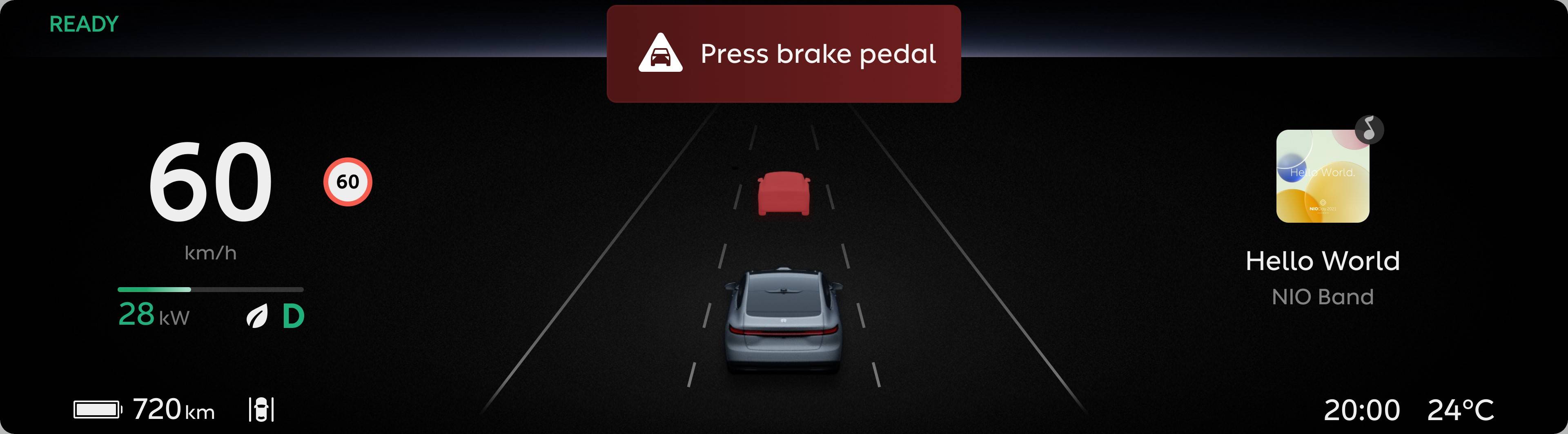

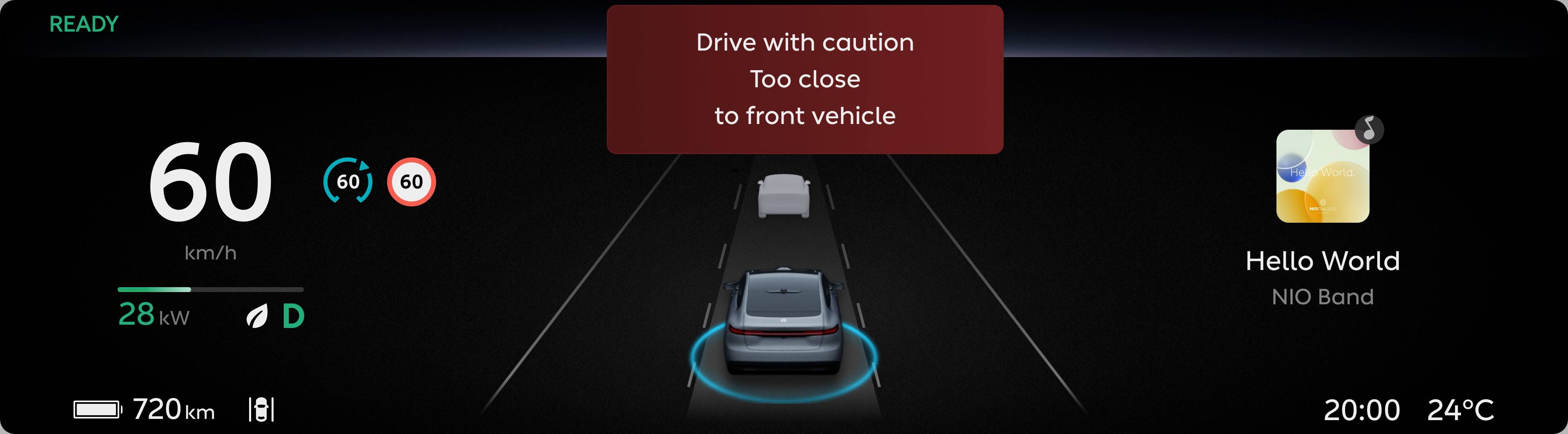

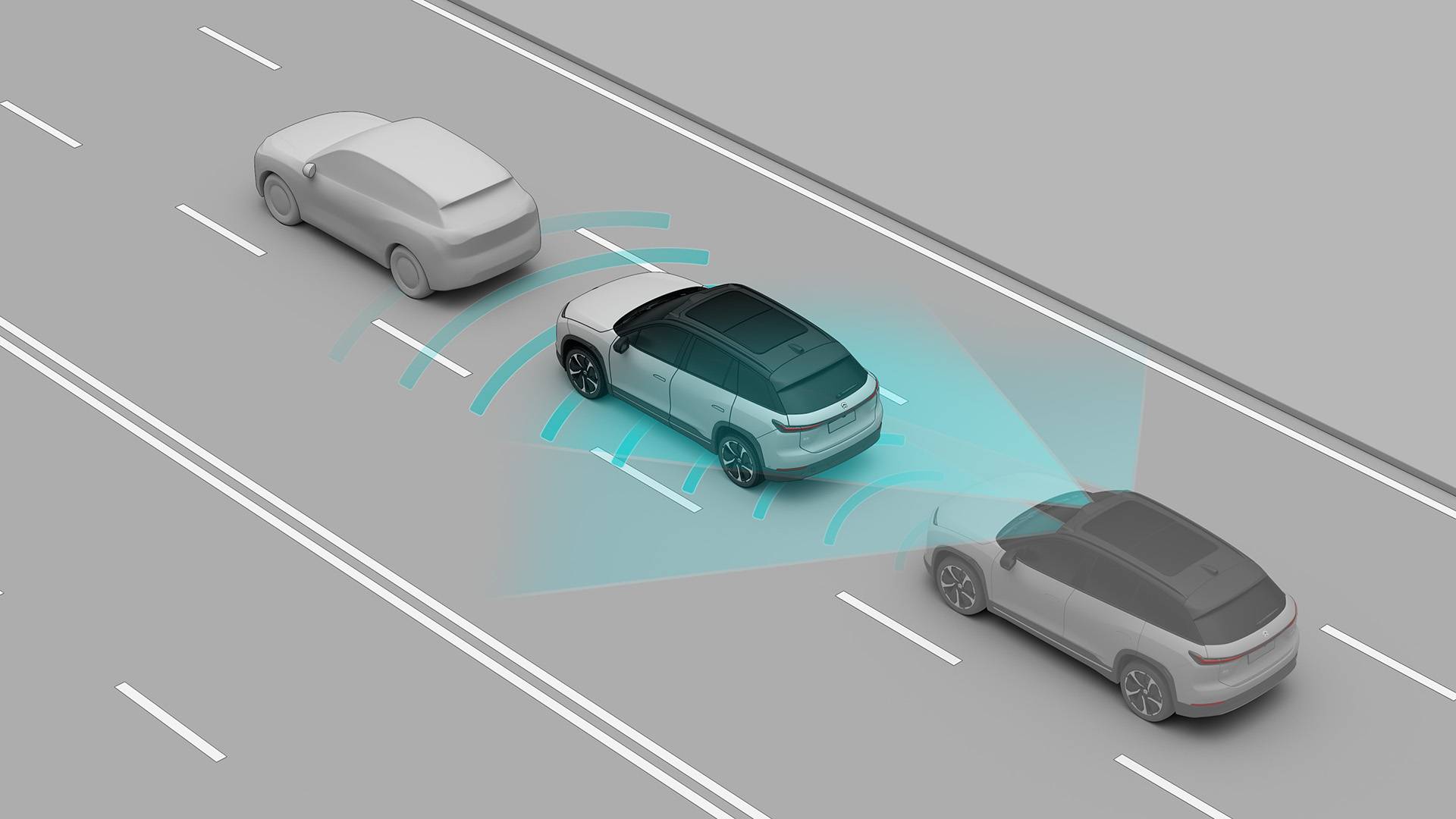

Forward Collision Warning will only respond to vehicles that satisfy the conditions in the same direction. Some targets below will not trigger a response, which include but are not limited to:

• Animals

• Traffic lights

• Walls

• Barricades (cone barrels, etc.)

• Other non-vehicle objects

To perform this function optimally, the system needs to recognize the outline and main features of the pedestrian's body as clear and complete as possible, which means that the head, shoulders, arms, legs, upper and lower body of the pedestrian can be recognized by integrating them into standard human movements. The following situations may cause pedestrians not to be recognized and prevent the Forward Collision Warning from operating as expected, which include but are not limited to:

• Pedestrians are taller than 200cm or shorter than 100cm.

• Pedestrians wear large clothing (such as raincoats, Hanfu, etc.), causing the main features (arms, legs, etc.) to be obscured and the outline to be unclear.

• The distance between pedestrians and the sensor is too close when pedestrians first appear in the sensor's visual field.

• Pedestrians are carrying a large backpack or luggage.

• The contrast between the colors of the pedestrians' clothes and the background scene is low.

• Pedestrians carry umbrellas, which cover the head, arms and other major features.

• Pedestrians bend or crouch.

• Pedestrians sit in a wheelchair.

• The distance between pedestrians is close.

• Pedestrians wear reflective clothing.

• Pedestrians walk in dark places such as roads at night, tunnels, etc.

• There are great changes in the speed of pedestrians crossing the road.

To perform this function optimally, the system needs to recognize the outline and main features of the cyclist's body as clear and complete as possible as well as the outline of the bicycle. Cyclists referred to in this function are adults, and shall ride bicycles designed for adults. The following situations may cause cyclists not to be recognized and prevent the Forward Collision Warning from operating as expected, which include but are not limited to:

• When features of the pedestrian or bicycle are obscured by clothing or other objects, resulting in an indistinct outline.

• When larger baggage and goods are carried on the bicycle.

• When the bicycle is going fast.

• The contrast between the colors of the cyclists and the background scene is low.

• There are great changes in the speed of cyclists.

• The distance between cyclists and the sensor is too close when cyclists first appear in the sensor's visual field.

• When riding in dark places such as roads at night, tunnels, etc.

• Balanced bikes, children's scooters, some scooters and electric bicycles of special forms, etc. are being used.

The following situations may prevent the Forward Collision Warning from operating as expected due to the fact that the target is not directly ahead, which include but are not limited to:

• It will not respond to targets in the blind spots of the sensor, such as targets in blind spots at corners, sides and back of the vehicle.

• It may wrongly select or miss targets when approaching or crossing a turn in the road.

• When going uphill, it may miss a target or misjudge the distance to the target.

• When only part of the body of a vehicle in the adjacent lane cuts in front of your vehicle (especially when it's a larger vehicle cutting in, like a bus, truck, etc.), it may not be able to recognize it in time.

• When your vehicle abruptly cuts into the rear of the vehicle ahead, or another vehicle abruptly cuts into or out of the front of your vehicle, it may not be able to recognize it in time.

The following situations may prevent the Forward Collision Warning from operating as expected due to special or complex road conditions, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles

• Traffic conditions with a lot of pedestrians, bicycles, electric bikes or animals

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads

• Winding and turning roads, rapid turning roads

• Uphill and downhill roads

• Rough roads

• Tunnel entrances and exits

The above warnings, precautions and restrictions have not fully covered all the conditions that may affect the normal operation of the Forward Collision Warning (FCW) system. There are many factors that may interfere with the Forward Collision Warning (FCW) system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enable/Disable the Lane Keeping Assist (LKA) system

Go to the Settings page from the control bar at the bottom of the center display, and tap Driver Assistance > Lane Departure Warning (LDW) and Assist to enable or disable this function.

When enabled, you can select the assisting levels, alerting methods and sensitivity:

• Assisting level

  • Alert Only: only provides an alert function

  • Alert and Lane Correction: provides an alert and a slight Steer Assist

• Alert methods:

  • When it is set to Alert Only, the alert modes include: image, image + sound, image + vibration, image + sound + vibration.

  • When it is set to "Alert and lane correction", the alert methods cannot be set and the default option is image + sound.

• Sensitivity:

  • Low: gives an alert later than normal sensitivity under the same conditions

  • Medium: normal sensitivity

  • High: gives an alert earlier than normal sensitivity under the same conditions

Operating conditions for the Lane Keeping Assist (LKA) system:

• Your vehicle speed is about 50-130 km/h

• Your vehicle drives normally without suddenly accelerating, decelerating or steering.

• Your vehicle is in the center of its lane and does not drive on the lane marking

• The lane markings on at least one side are clear.

• The high-definition camera functions normally and provides clear vision

• No components of the Lane Keeping Assist system are faulty.

• Your vehicle meets all safety conditions, such as:

  • Driver seating status

  • Your vehicle is in gear position D

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered

  • The traction control system and vehicle stability control system are not manually disabled.

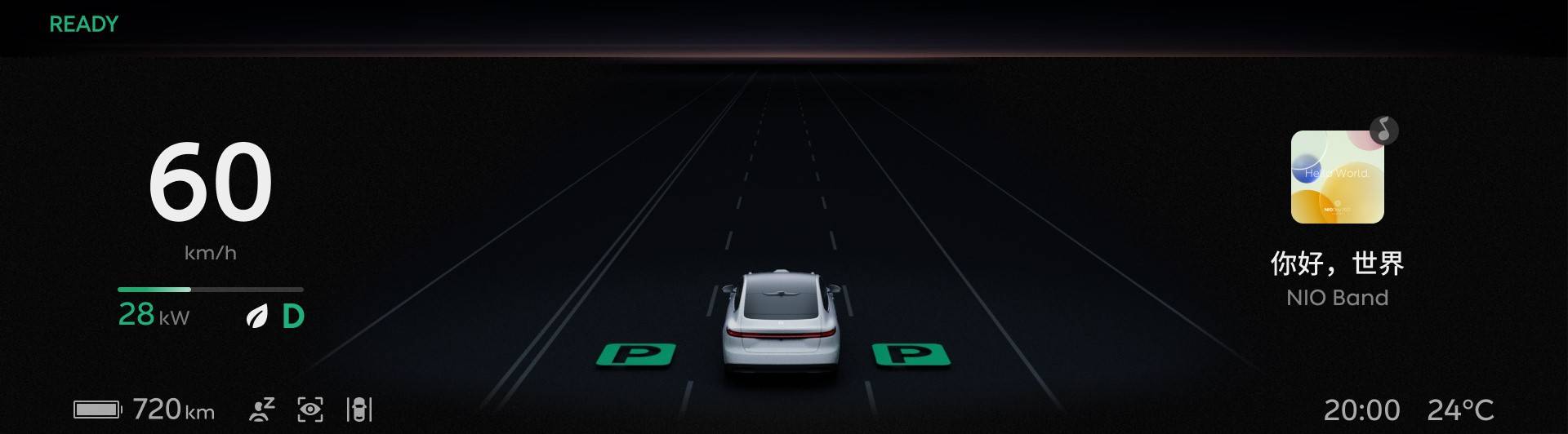

Dynamic Environment Simulation Display

1. Status icon of the Lane Keeping Assist (LKA) system

   • No icon: Not enabled

   • Grey icon: Standby status

   • White lane marking: The lane marking on the corresponding side has been detected.

   • Yellow lane marking: Level 1 Lane Departure Warning

   • Red lane marking: Level 2 Lane Departure Warning

2. Lane marking display

• No status icon: The Lane Keeping Assist (LKA) system is not enabled.

• The status icon is grey: The Lane Keeping Assist (LKA) system is enabled, in standby status, and not activated yet.



• The status icon and the central lane marking are white: The Lane Keeping Assist (LKA) system is active.



• The status icon and one side of the central lane marking is red:



  • When Alert Only is selected, it indicates that there is a risk of accidental departure from the lane on the corresponding side

  • When Alert and Lane Correction is selected, it indicates that the vehicle has deviated from the lane unexpectedly, and the Lane Keeping Assist (LKA) is no longer able to prevent the vehicle from deviating from the lane through a slight Steer Assist to correct lanes.

• The status icon and one side of the central lane marking are yellow: Only occurs when Alert and Lane Correction is selected. It indicates that the Lane Keeping Assist (LKA) is providing a certain Steer Assist to correct lanes at the corresponding side to reduce the possibility of the vehicle deviating from the lane.



Precautions and Restrictions

The following situations may prevent the Lane Keeping Assist (LKA) system from operating as expected or cause it to automatically exit, which include but are not limited to:

• Pass through bends with excessive curvature, such as high-speed ramps.

• The lane markings are not clear, worn, missing, interweaving, or shaded by other vehicles or buildings or scenery

• Passing through road sections without lane markings, such as non-standard roads, intersections and construction areas

• Passing through road sections with special lane markings, such as speed reduction markings and channelizing-line markings

• Passing through areas with unclear lane division, such as areas with merging or dividing lane markings, high-speed ramp crossings, urban intersection zones and left turn waiting zones

• There are edges or other high-contrast lines on roads instead of lane markings, such as pavement joints and curbs

• Lane markings cannot be recognized or are not recognized correctly due to height change, such as on the uphill and downhill

• Lane markings cannot be recognized or are not recognized correctly due to light, such as reflection of lane markings caused by strong light, poor visibility or insufficient light caused by bad weather and or at night

• The distance between lane markings on both sides is too wide or too narrow.

The following situations may prevent the Lane Keeping Assist (LKA) system from operating as expected or cause it to automatically exit due to a laser radar recognition disorder, which include but are not limited to:

• Changed installation position of camera

• Blocked or dirty camera

• Limited recognition at night

• Dark surroundings, such as at dawn, dusk, night, in tunnels

• Sudden changes in ambient brightness, such as tunnel entrances or exits

• Large shadows cast by buildings, landscapes or large vehicles

• Camera directly exposed to light

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera

• Wet roads

It is not recommended to use the Lane Keeping Assist (LKA) system in special or complex road conditions, as that may prevent the Lane Keeping Assist (LKA) system from operating as expected or cause it to automatically exit, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles

• Traffic conditions with a lot of pedestrians, bicycles or animals

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads

• Winding and turning roads, rapid turning roads

• Uphill and downhill roads

• Rough roads

• Narrow roads

• Tunnel entrances and exits

• Non-standard roads

• Roads without a median

The above warnings, precautions and restrictions have not fully described all the conditions that may affect the normal operation of the Lane Keeping Assist (LKA) system. There are many factors that may interfere with the Lane Keeping Assist (LKA) system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions.

Precautions and Restrictions

Cameras may fail to recognize obstacles and thus impairing the performance of Emergency Active Stop in some situations, including but not limited to:

• The positions of the cameras are changed.

• The cameras are obstructed or stained.

• Visibility is poor in dim environments, such as at dawn, dusk, night, or in a tunnel, resulting in impaired recognition.

• Sudden changes in brightness, such as when entering or exiting a tunnel.

• The view of the cameras is interfered by large shadows cast by buildings, landscape features, or large vehicles.

• When the camera is directly struck by light.

• In rain, snow, fog, haze, and other bad weather.

• When exhaust gas, splashes, snow, or dust is kicked up by vehicles in front of you.

• The cameras are obstructed by water, dust, small scratches, grease, dirt, wipers, frost, or snow on the windshield.

• The road is wet.

Radars may fail to recognize obstacles and thus impairing the performance of Emergency Active Stop in some situations, including but not limited to:

• Radars are misplaced, blocked, or covered with dirt, ice, snow, metal plates, tape, labels, leaves, or other obstructions.

• Radars or the surrounding areas are damaged by collisions or scratches.

• Heavy rain, snow, fog, and other extreme weather which may impair radar performance

• False warnings may be generated due to certain metal fences, median strips or concrete walls.

The LiDAR sensor may fail to recognize obstacles, affecting the performance of or even causing the unintended deactivation of Emergency Active Stop in some situations, including but not limited to:

• The position of the LiDAR sensor is changed.

• In rain, snow, fog, haze, and other bad weather.

• The sensing performance is poor due to exhaust gas, splashes, snow, or dust kicked up by vehicles in front.

• The vehicle is driving on wet roads or roads with water.

• The LiDAR sensor is obstructed by water, dust, small scratches, grease, dirt, frost, snow, or wrap film / paint protection film on its window.

• The LiDAR sensor is too hot due to prolonged exposure of the vehicle to the sun.

• False warnings may be generated due to traffic signs and anti-collision buckets on expressways and elevated roads.

Emergency Active Stop will only respond to vehicles that meet certain conditions. Some targets may not be recognized or responded to, including but not limited to:

• Vehicles crossing perpendicular to your vehicle.

• Motorcycles and tricycles.

Some targets are not responded to, including but not limited to:

• Pedestrians.

• Bicycles.

• Animals.

• Traffic lights.

• Traffic cones.

• Walls.

• Barriers

• Vehicles crossing perpendicular to your vehicle.

• Oncoming vehicles

• Other non-vehicle objects

Recognition and response may be delayed if the target is not right in the front in some situations, including but not limited to:

• Emergency Active Stop does not respond to targets that are in sensor blind spots. For example, Emergency Active Stop cannot detect targets in the blind spot at the corner or on the side of the vehicle.

• When the vehicle is approaching or navigating a curve, the target may be incorrectly selected or missed, resulting in unintended acceleration or deceleration.

• The target may be lost or the distance to the lead vehicle may be misjudged when the vehicle is on a slope. Driving downhill will increase the vehicle speed so as to exceed the cruise speed.

• When only a part of the vehicle in the adjacent lane cuts in front of you (especially large vehicles such as buses and trucks), the target may not be identified and trigger a response.

• When your vehicle suddenly cuts to the back of a vehicle in front, or when other vehicles abruptly cut into or out of the front of your vehicle, the target may not be identified in time.

Emergency Active Stop does not guarantee that the target can be accurately recognized in all situations, and its performance may be impaired in special or complex road conditions, including but not limited to:

• Water, mud, potholes, snow, ice, speed bumps, or obstacles on the road.

• Large numbers of pedestrians, bicycles, or animals on the road.

• Complex and changing traffic flows, such as busy intersections, freeway ramps, and congested roads.

• Winding roads and sharp turns.

• Uphill or downhill roads.

• Bumpy roads.

• Narrow roads.

• Tunnel entrances and exits.

• Non-standard roads.

• Roads without center medians.

Lateral grip may be insufficient in some situations, including but not limited to:

• The brakes do not fully function (such as when brake components are too cold, hot, or wet).

• Improper maintenance (such as excessive brake or tire wear, or abnormal tire pressure).

• Driving on special roads (such as sloping roads or roads with water, mud, potholes, snow, or ice).

The above warnings, precautions and restrictions do not exhaust all the situations that may affect the proper operation of Emergency Active Stop. Emergency Active Stop may be affected by many factors. To avoid safety accidents, be sure to always pay attention to traffic, road and vehicle conditions and drive with caution.

Enable/Disable Emergency Lane Keeping

Go to the Settings page from the control bar at the bottom of the center display, and click Driver Assistance > Emergency Lane Keeping to turn this function on or off.

It is not recommended to turn off this function. When this function is turned off, it will not be able to assist the driver by taking emergency control of the steering when there is a potential risk of a side collision.

Emergency Lane Keeping in Case of Deviation to Right Curb

When the operating conditions of ELK are met, ELK can provide a certain degree of steer assist if your vehicle deviates from its lane involuntarily to the right curb without having the turn light on. At this time, the right side of the central lane marking will be displayed in yellow.

Emergency Lane Keeping in Case of Deviation to Solid Lane Marking

When the operating conditions of ELK are met, ELK can provide a certain degree of steer assist if your vehicle deviates from its lane involuntarily to the solid lane marking without having the turn light on. At this time, the corresponding side of the central lane marking will be displayed in red.

Emergency Lane Keeping with Risk of Left Front Collision

When the operating conditions of ELK are met, ELK can provide a certain degree of steer assist if your vehicle deviates from its lane involuntarily to the left without having the turn light on when there is an oncoming vehicle in your left lane and the lane marking is clear. At this time, the left side of the central lane marking will be displayed in red.

Emergency Lane Keeping with Risk of Left Rear Collision

When the operating conditions of ELK are met, ELK can provide a certain degree of steer assist if your vehicle deviates from its lane involuntarily or actively changes lane to the left when there is a vehicle approaching rapidly from behind in your left lane and the lane marking is clear. At this time, the left side of the central lane marking will be displayed in red.

Precautions and Restrictions

The following situations may cause Emergency Lane Keeping to fail to operate as expected or exit automatically due to a camera recognition disorder. Please steer your vehicle in a timely manner. These situations include but are not limited to:

• Changed installation position of camera

• Blocked or dirty camera

• Reduced recognition capability due to dim surrounding environments, such as at dawn, dusk, night, or in a tunnel

• Sudden changes in ambient brightness, such as tunnel entrances or exits

• Large shadows cast by buildings, landscapes or large vehicles

• Camera directly exposed to light

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera

• Wet roads

The following situations may cause the emergency lane keeping to fail to operate as expected or exit automatically due to a radar recognition disorder. Please steer your vehicle in a timely manner. These situations include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The following situations may lead to a LiDAR recognition disorder, affect the function of Emergency Lane Keeping, and even cause the function to deactivate. These situations include but are not limited to:

• Changed installation position of LiDAR

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead

• Driving on wet or waterlogged roads

• Obstructions such as water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, tinted or transparent film on the LiDAR window

• Overheating of the LiDAR caused by prolonged sun exposure

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections

Special or complex road conditions may cause the lane keeping assist system to fail to operate as expected or exit automatically. Please steer your vehicle in a timely manner. These situations include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles

• Traffic conditions with a lot of pedestrians, bicycles or animals

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads

• Winding and turning roads, rapid turning roads

• Uphill and downhill roads

• Rough roads

• Narrow roads

• Tunnel entrances and exits

• Construction areas

The above warnings, precautions and restrictions have not fully described all the situations that may affect the normal operation of the Emergency Lane Keeping system. There are many factors that may interfere with the Emergency Lane Keeping system. In order to avoid accidents, you need to drive attentively and focus on the traffic, road, and vehicle conditions.

Enable/Disable the Fatigue Distraction Alert System

The Advanced Driver Monitoring System (ADMS) monitors the driver's fatigue and distraction state.

• Driver Fatigue Alert



• Driver Distraction Alert



Go to the Settings page from the control bar at the bottom of the center display, and tap Driving > Driver Fatigue and Distraction Alert to enable or disable this function.

After this function is enabled, when the vehicle speed is 20 km/h or above, the system will keep monitoring the status and provide voice alerts.

Dynamic Environment Simulation Display

• Not enabled



• Enabled



• When the following are displayed due to a system failure or malicious occlusion of the camera, it indicates that the function is limited. Please promptly contact the NIO Service Center.



Precautions and Restrictions

In some cases, driver fatigue and distracted driving behaviors may be affected or undetected, resulting in the system not providing corresponding warnings, being partially unavailable or providing false alarms, such as:

• At night and in low light

• Sunlight, opposite headlights and other direct light interference

• Adjust the seat

• Adjust or turn the steering wheel

• Under the condition of eye occlusion, which includes but is not limited to various types of dark glasses with low transmittance, polarizers, sunglasses, and eyeglass frame occlusion, etc

• Wearing accessories such as hats, scarves and bandanas that may alter the shape of the head

• Wearing a mask

The above warnings, precautions and restrictions have not fully covered all the conditions that may affect the normal operation of the Advanced Driver Monitoring System (ADMS). There are many factors that may interfere with the Advanced Driver Monitoring System (ADMS). In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enable/Disable the Front Cross Traffic Alert (FCTA)

Go to the Settings page from the control bar at the bottom of the central display, and tap NIO Pilot >Front Cross Traffic Alert (FCTA) to enable or disable this function.

When the operating conditions are satisfied, if a potential collision risk with the front crossing vehicle is detected, it will remind you through visual and auditory alerts on the dynamic environment simulation display, 360 Surround View page and Automatic Parking page.

Operating conditions for the Front Cross Traffic Alert (FCTA)

• The vehicle speed is less than 15 km/h and greater than 0 km/h.

• The speed of the front crossing vehicle is within a certain range of the normal vehicle speed.

• The front lateral millimeter wave radar operates normally and has a clear field of view.

• Driver seating status

• Your vehicle is in gear position D

Precautions and Restrictions

The targets below may not be identified, and may trigger a response, which include but are not limited to:

• Motorcycles

• Battery vehicles

• Tricycles

• Pedestrians

• Animals

• Bicycles

• Other non-vehicle objects

The targets below will not trigger a response, which include but are not limited to:

• Oncoming vehicles/vehicles driving in the same direction

• Stationary objects

The Front Cross Traffic Alert (FCTA) does not respond to targets in blind spots of the sensor. The Front Cross Traffic Alert (FCTA) cannot detect lateral vehicles in front of this vehicle through obstacles or parked vehicles.

For example, the Front Cross Traffic Alert (FCTA) cannot detect the front crossing vehicles in the following situations, which include but are not limited to:

• Stopping in the innermost position

• The parking space is at an angle.

The following situations may lead to a radar recognition disorder and affect the performance of the Front Cross Traffic Alert (FCTA), which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The above warnings, precautions and restrictions have not fully described all the conditions that may affect the normal operation of the Front Cross Traffic Alert (FCTA) system. There are many factors that may interfere with the Front Cross Traffic Assist (FCTA) system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions.

Enable/Disable the Rear Cross Traffic Alert with Braking (RCTA-B)

Go to the Settings page from the control bar at the bottom of the central display, and tap NIO Pilot >Rear Cross Traffic Alert with Braking (RCTA-B) to enable or disable this function.

When it is enabled, you can select the assisting level in the Rear Cross Traffic Alert with Braking (RCTA-B) Settings:

• Alert only: when the vehicle speed is less than about 15km/h and the operating conditions are satisfied, if a potential collision risk with rear crossing vehicles from behind is detected, it will remind the vehicle in the rear through visual and auditory alerts on the digital instrument panel, 360 Surround View page and Automatic Parking page.

• Alert and brake actively: when the vehicle speed is about 1-15km/h and the operating conditions are satisfied, besides visual and auditory alerts, the system will warn you by a brief instance of active braking if necessary, but cannot ensure that the vehicle will stop.

Operating conditions for the Rear Cross Traffic Alert with Braking (RCTA-B):

• The speed of the rear crossing vehicle is between about 5 and 60 km/h.

• The rear lateral millimeter wave radar operates normally and has a clear field of view.

• Driver seating status

• All doors are closed

• Your vehicle is in gear position R.

Precautions and Restrictions

The targets below may not be identified, and may trigger a response, which include but are not limited to:

• Motorcycles

• Battery vehicles

• Tricycles

• Pedestrians

• Animals

• Bicycles

• Other non-vehicle objects

The targets below will not trigger a response, which include but are not limited to:

• Oncoming vehicles/vehicles driving in the same direction

The Rear Cross Traffic Alert with Braking (RCTA-B) does not respond to targets in blind spots of the sensor. The Rear Cross Traffic Alert with Braking (RCTA-B) cannot detect vehicles behind this vehicle through obstacles or parked vehicles.

For example, the Rear Cross Traffic Alert with Braking (RCTA-B) cannot detect rear crossing vehicles in the following situations, which include but are not limited to:

• Stopping in the innermost position

• The parking space is at an angle.

The following situations may lead to a radar recognition disorder and affect the performance of the Rear Cross Traffic Alert with Braking (RCTA-B), which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The above warnings, precautions and restrictions have not fully described all the conditions that may affect the normal operation of the Rear Cross Traffic Alert with Braking (RCTA-B) system. There are many factors that may interfere with the Rear Cross Traffic Alert (RCTA) and Assist System. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions.

Enable/Disable the Active Lane Change (ALC)

Go to the Settings page from the control bar at the bottom of the center display, and tap Driver Assistance > Active Lane Change (ALC) to enable or disable this function.

Operating conditions for the Active Lane Change (ALC):

• The driver's hands on the steering wheel.

• The Lane Centering Control (LCC) is enabled and operating normally.

• The Active Lane Change (ALC) is enabled and operating normally.

• The sensor functions properly and the field of view is clear.

• The vehicle speed is about 60-130 km/h.

• The current and target lanes meet all the safety conditions to change lanes. For example:

  • The lane marking on the side of the lane change is a dotted line.

  • The curvatures of the current and target lanes are small.

  • The vehicle maintains a safe distance between itself and vehicles in front of and behind it in the current and target lanes.

  • There is no Blind Spot Detection (BSD) and Lane Change Alert (LCA) and other alarms in the target lane.

  • The lane markings on both sides of the target lane are clear.

• None of the components for the Active Lane Change (ALC) are faulty and the vehicle meets all safety conditions. For example:

  • No malfunction with the turn light

  • Driver seating status

  • The driver has fastened the seat belt

  • All doors are closed

  • Your vehicle is in gear position D

  • The driver does not step on the brake pedal

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered

Enabling the Active Lane Change (ALC) function in Settings does not mean that the function has been activated.

After meeting the operating conditions, you must perform a visual check to confirm the safety of the lane change environment, and then toggle the turn light lever on the corresponding side. The system will detect if your hands are on the steering wheel.

• The system will activate the Active Lane Change (ALC) function to assist the lane change if it detects that the conditions to change lanes have been met. At this time, the dynamic environment simulation will display the light band on the corresponding side turning blue and disappearing after a successful lane change. After the lane change is completed, please confirm that the turn light lever has been toggled back.

• The system will not perform the lane change if it detects that the conditions to change lanes has not been met and the dynamic environment simulation will display the light band on the corresponding side turning red.

Before or during a lane change, toggle the turn light lever in the opposite direction of the lane change to cancel the lane change. When the following situations occur, the lane change will be interrupted, and you will be reminded through the digital instrument cluster and sound alerts of the need to take control of your vehicle:

• The Active Lane Change (ALC) detects an unsafe lane change environment, such as when the activation alarms for Blind Spot Detection (BSD) and Lane Change Alert (LCA) go off.

• Steer Assist is exited for reasons such as taking over the steering wheel control, unclear lane markings, and passing through excessively curved bends.

• Adaptive Cruise Control and Steer Assist are exited at the same time for reasons such as pressing the button and depressing the brake pedal.

Dynamic Environment Simulation Display

• Active Lane Change (ALC) is making a lane change.



• Active Lane Change (ALC) suspends or cannot make a lane change.



• Active Lane Change (ALC) completes the lane change.



Precautions and Restrictions

The following situations may prevent the Active Lane Change (ALC) from completing the lane change or operating as expected, requiring the driver to take control of the steering wheel at any time, which include but are not limited to:

• Passing through bends with excessive curvature, such as high-speed ramps

• The lane markings of the current lane and target lane are not clear, worn, missing, crossed, or shaded by other vehicles or buildings or scenery

• Passing through road sections without lane markings, such as non-standard roads, intersections and construction areas

• Passing through areas with unclear lane division, such as areas with merging or dividing lane markings, high-speed ramp crossings, urban intersection zones and left turn waiting zones

• Passing through road sections with special lane markings, such as speed reduction markings and channelizing-line markings

• There are edges or other high-contrast lines on roads instead of lane markings, such as pavement joints and curbs

• Lane markings cannot be recognized or are not recognized correctly due to height change, such as on the uphill and downhill

• Lane markings cannot be recognized or are not recognized correctly due to light, such as reflection of lane markings caused by strong light, poor visibility or insufficient light caused by bad weather and or at night

• The distance between the lane markings on both sides of the current lane or the target lane is too wide or too narrow

The following situations may lead to a camera recognition disorder, thus making it impossible to complete the lane change assistance, which include but are not limited to:

• Changed installation position of camera

• Blocked or dirty camera

• Limited recognition at night

• Dark surroundings, such as at dawn, dusk, night, in tunnels

• Sudden changes in ambient brightness, such as tunnel entrances or exits

• Large shadows cast by buildings, landscapes or large vehicles

• Camera directly exposed to light

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera

• Wet roads

The following situations may lead to a radar recognition disorder, thus making it impossible to complete the lane change assistance, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as rain, snow, fog, haze, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The following situations may lead to a LiDAR recognition disorder, affect the function of lane change assistance, and even cause the function to deactivate, which include but are not limited to:

• Changed installation position of LiDAR

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead

• Driving on wet or waterlogged roads

• Obstructions such as water, dust, micro-scratches, oil sludge, dirt, ice, snow, tinted or transparent film on the LiDAR window

• Overheating of the LiDAR caused by prolonged sun exposure

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections

The Active Lane Change (ALC) may leak or misdetect obstacles in the target and current lanes. You must always confirm whether it is safe and appropriate to change lanes before and during the lane change. The targets below may not be identified, and may trigger a response, which include but are not limited to:

• Side-crossing vehicles

• Motorcycles, tricycles

The targets below will not trigger a response, which include but are not limited to:

• Pedestrians

• Bicycles

• Animals

• Traffic lights

• Walls

• Roadblocks

• Oncoming vehicles

• Other non-vehicle objects

It is not recommended to use Active Lane Change (ALC) in special or complex road conditions, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles

• Traffic conditions with a lot of pedestrians, bicycles or animals

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads

• Winding and turning roads, rapid turning roads

• Uphill and downhill roads

• Rough roads

• Narrow roads

• Tunnel entrances and exits

• Non-standard roads

• Roads without a median

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the Active Lane Change (ALC) system. There are many factors that may interfere with the Active Lane Change (ALC) system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Activating/Deactivating Lane Centering Control (LCC)

Go to the Settings page from the control bar at the bottom of the center display, click Driver Assistance > Driver Assistance Mode and choose Lane Centering to turn this function on or off.

Turning on Lane Centering in the Settings does not mean that LLC is activated.

• Middle button: activates or deactivates Lane Centering Control (LCC)

• Up button: increase or resume the cruising speed

• Down button: decrease the cruising speed

• Left button: decrease the following distance

• Right button: increase the following distance

1. Set cruising speed

2. Target vehicle ahead

3. Following time and distance

4. Status ring of Lane Centering Control (LCC)

   • When the ring does not appear: Lane Centering Control (LCC) is not activated, or the conditions for activation have not been met

   • When the ring is gray: Lane Centering Control (LCC) is in standby and can be reactivated

   • When the ring is gray and flashing: Lane Centering Control (LCC) is in Steer Assist standby, possesses the Adaptive Cruise Control functions and is now searching for lane markings

   • When the ring is blue with the lane highlighted in gray: Lane Centering Control (LCC) is fully active and possesses the Adaptive Cruise Control and Steer Assist functions

When the operating conditions are met, press the Middle button to activate Lane Centering Control (LCC).

• If the lane markings on both sides are clear and the vehicle is in the center of the current lane, activating Steer Assist will activate Adaptive Cruise Control as well.

• If the lane markings on both sides are unclear or the vehicle is not in the center of the current lane, it will first activate Adaptive Cruise Control and start searching for lane markings, and then activate Steer Assist when the conditions are met.

Lane Centering Control (LCC) is available at a vehicle speed of 0-180 km/h, or 0-110 mph.

• If the vehicle speed is less than 30 km/h (20 mph), 30 km/h (20 mph) will be set as the cruising speed

• If the vehicle speed is higher than 30 km/h (20 mph) but not higher than 180 km/h (110 mph), the current vehicle speed will be set as the cruising speed

When Lane Centering Control (LCC) activates Adaptive Cruise Control and starts searching for lane markings, you can release the accelerator pedal, and the system will maintain the set cruising speed.

• If there is a vehicle ahead, Lane Centering Control (LCC) will adjust the speed of your vehicle according to the speed and distance of the vehicle ahead, and the maximum speed will not exceed the cruising speed

• When there is no vehicle ahead, Lane Centering Control (LCC) will quickly adjust the speed of your vehicle to the cruising speed

When Lane Centering Control (LCC) activates Steer Assist, it will actively assist with steering control, however, please keep your hands lightly on the steering wheel. The pressure of your hands may have a slight effect on the steer assist control, please pay close attention to the driving situation, and be ready to take control of the steering wheel at any time to control the direction of the vehicle.

The steering wheel turns when Lane Centering Control (LCC) is controlling the steering. When Lane Centering Control (LCC) is actively accelerating, the accelerator pedal does not move; when it’s decelerating, the brake pedal may move.

Working condition for Lane Centering Control (LCC):

• The speed does not exceed 180 km/h or 110 mph

• High-definition cameras, radar and LiDAR functioning properly with a clear view

• No components of Lane Centering Control (LCC) are faulty

• The function cannot be activated when the steering angle of the steering wheel is too large

• Your vehicle meets all safety conditions, such as:

  • The driver's hands on the steering wheel

  • Driver seating status

  • The driver has fastened the seat belt

  • All doors are closed

  • Your vehicle is in D gear

  • The driver does not step on the brake pedal

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered

To adjust the speed under Lane Centering Control (LCC)

When Lane Centering Control (LCC) is active, go to the Settings page from the control bar at the bottom of the center display, tap Driver Assistance > Cruising Speed Adjustment, and select the appropriate way to adjust the cruising speed.

The cruising speed can be adjusted by:

• Short press to +1, long press to +5

  • Short press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed by 1 km/h

  • Long press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed to the closest 5 km/h increment, that is, if the speed is 82 km/h, long press the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h.

• Long press to +1, short press to +5

  • Long press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed by 1 km/h

  • Short press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed to the closest 5 km/h increment, that is, if the speed is 82 km/h, short press the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h

The maximum set speed for Lane Centering Control (LCC) is 180 km/h, or 110 mph.

The minimum set speed for Lane Centering Control (LCC) is 30 km/h, but it allows the vehicle to decelerate to 0 km/h when following the vehicle ahead.

To adjust the following time and speed under Lane Centering Control (LCC)

When the system is active or to be activated, the following time and distance can be adjusted in 5 settings.

• Press the Right button on the left side of the steering wheel to set the following time and distance to a farther setting

• Press the Left button on the left side of the steering wheel to set the following time and distance to a closer setting

Takeover and Resume

When driving with Lane Centering Control (LCC) active, you can actively take control of the vehicle by stepping on the accelerator pedal or turning the steering wheel. Lane Centering Control (LCC) will no longer respond to the target vehicle ahead when you actively take control by heavily stepping on the accelerator pedal.

Lane Centering Control (LCC) will re-activate Adaptive Cruise Control as soon as you release the pedal.

Lane Centering Control (LCC) and Steer Assist will retreat to the standby status for the time being when you actively take control by turning the steering wheel, but Adaptive Cruise Control will remain active and search for lane markings, during which time you will be controlling the direction of the vehicle.

When you stop turning the steering wheel, if the lane markings on both sides are clear and the vehicle is in the center of the current lane, Steer Assist will be automatically resumed.

After you exit Lane Centering Control (LCC) by pressing or depressing the brake pedal, you can activate it again by pressing the Up button on the left side of the steering wheel, and you can restore the vehicle's speed to the previously set cruising speed.

When Lane Centering Control (LCC) stops the vehicle as the vehicle ahead stops, you can press the Up button on the left side of the steering wheel, or step on the accelerator pedal to restore the previously set cruising speed.

Reactivate Lane Centering Control (LCC), activate Adaptive Cruise Control first which will start searching for lane markings and, if the lane markings on both sides are clear and the vehicle is in the center of the current lane, activate Steer Assist.

Deactivating Lane Centering Control (LCC)

Lane Centering Control (LCC) will be deactivated, and will no longer be in active control of speed and direction, and alert you when:

• The steering wheel button is pressed

• The brake pedal is depressed

In addition, when the working conditions are no longer met, Lane Centering Control (LCC) will be automatically deactivated, and you should take control of the brake pedal, accelerator pedal and steering wheel immediately after that to take control of the speed and direction of the vehicle.

Dynamic Environment Simulation Display

• Standby for Steer Assist has the Adaptive Cruise Control functions and will search for lane markings. You will be controlling the direction of the vehicle.



• Fully active, which has the Adaptive Cruise Control and Steer Assist functions.



• Deactivated and returned to the standby state, when you can re-activate Lane Centering Control (LCC) by pressing the button.



Keep your hands on the steering wheel and eyes on the road ahead when driving with Lane Centering Control (LCC) active.

• When the system detects that your hands have been off of the steering wheel and your eyes have been off of the road ahead for a period of time, dynamic environment simulation will display “Please keep your hands on the steering wheel” or “Please concentrate on driving”, and alert you audibly.

• When the system detects that your hands have been off of the steering wheel and your eyes have been off of the road ahead for a period of time, dynamic environment simulation will display “Pilot is about to be deactivated, please put your hands on the steering wheel immediately”, or “Pilot is about to be deactivated, please take control of the vehicle immediately”, and keep alerting you audibly.

• When the system detects that your hands have been off of the steering wheel and your eyes have been off of the road ahead for a period of time, dynamic environment simulation will display “Emergency Active Stop (EAS) is activated, the vehicle is about to stop” and alert you audibly, accompanied by a NOMI voice prompt of “The vehicle is stopping” and double flashing lights.

When the system detects that your hands are on the steering wheel and your eyes are on the road ahead, the warning will disappear.

Maintaining Safe Distance

When dynamic environment simulation displays the “Please drive with caution, the distance to the vehicle ahead is too close” warning, it means that there is a risk of collision because the maximum deceleration available to Lane Centering Control (LCC) can no longer maintain a safe distance, and you need to take control of the brake pedal and steering wheel immediately to take control of the speed and direction of the vehicle.

Following Start/Stop

When Lane Centering Control (LCC) stops the vehicle as the vehicle ahead stops

• If the vehicle ahead starts, Lane Centering Control (LCC) will follow it and actively start the vehicle as well. You need to pay attention to the surrounding environment at all times to prevent collision accidents from occurring;

• When the vehicle stops as the vehicle ahead stops for more than about 5 seconds, before it starts again to follow the vehicle ahead, it will alert you audibly;

• When the vehicle stops as the vehicle ahead stops for more than 5 seconds, and the system detects obstacles ahead that may affect driving, dynamic environment simulation will display “the vehicle ahead starts moving” prompt, and you need to re-activate Following Start by pressing the Up button on the left side of the steering wheel or stepping on the accelerator pedal after checking the surroundings;

• After approximately 5 minutes, Lane Centering Control (LCC) will be deactivated and Electronic Parking will be activated instead.

After Lane Centering Control (LCC) stops the vehicle as the vehicle ahead stops, it will start the vehicle again only when the distance to the vehicle ahead exceeds 4 meters.

Intelligent Speed Limit Control

Once activated, when the vehicle is driving on a highway or overpass under Lane Centering Control (LCC), it will alert you to change the speed limit when it detects a change in the road speed limit. You can manually confirm to keep the cruising speed consistent with the current road speed limit.

Go to the Settings page from the control bar at the bottom of the center display, and click Driver Assistance > Intelligent Speed Limit Control to turn this function on or off.

Precautions and Restrictions

The following situations may cause the camera to identify obstacles, affect the performance of Lane Centering Control (LCC), or even cause deactivation, which include but are not limited to:

• Changed installation position of camera

• Blocked or dirty camera

• Limited recognition at night

• Dark surroundings, such as at dawn, dusk, night, in tunnels

• Sudden changes in ambient brightness, such as tunnel entrances or exits

• Large shadows cast by buildings, landscapes or large vehicles

• Camera directly exposed to light

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera

• Wet roads

The following situations may cause the radar to identify obstacles, affect the performance of Lane Centering Control (LCC), or even cause deactivation, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as heavy rain, snow, fog, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The following situations may cause the LiDAR to identify obstacles, affect the performance of Lane Centering Control (LCC), or even cause deactivation, which include but are not limited to:

• Changed installation position of LiDAR

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead

• Driving on wet or waterlogged roads

• Obstructions such as water, dust, micro-scratches, oil sludge, dirt, ice, snow, tinted or transparent film on the LiDAR window

• Overheating of the LiDAR caused by prolonged sun exposure

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections

The vehicle will only respond to Lane Centering Control (LCC) when the conditions are met The targets below may not be identified, and may trigger a response, which include but are not limited to:

• Transverse vehicles

• Motorcycles, tricycles

The targets below will not trigger a response, which include but are not limited to:

• Pedestrians

• Bicycles

• Traffic cones

• Animals

• Traffic lights

• Walls

• Roadblocks

• Oncoming vehicles

• Other non-vehicle objects

The following situations may cause the late recognition and response of Lane Centering Control (LCC) because the target is not directly ahead, which include but are not limited to:

• Lane Centering Control (LCC) will not respond to targets in the sensor blind zone. For example, it cannot detect the blind spots at the corners of the vehicle and the blind spots on the sides of the vehicle.

• When approaching or turning along the road, some targets may be mis-selected or missed, resulting in the unexpected acceleration and deceleration of the vehicle.

• When going uphill, it may miss a target or misjudge the distance between itself and the vehicle ahead. When going downhill, it may accelerate the vehicle, causing it to exceed the cruising speed.

• When only part of the body of a vehicle in the adjacent lane cuts in front of your vehicle (especially when it’s a larger vehicle cutting in, like a bus, truck, etc.), it may not be able to recognize the target in a responsive manner and require you to take control in time.

• When your vehicle abruptly cuts into the rear of the vehicle ahead, or another vehicle abruptly cuts into or out of the front of your vehicle, it may not be able to recognize the target in a responsive manner and require you to take control in time.

When driving in special or complex road conditions, it is not recommended to activate Lane Centering Control (LCC) because it may affect the performance of Adaptive Cruise Control and Hold, or even cause deactivation, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles

• Traffic conditions with a lot of pedestrians, bicycles or animals

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads

• Winding and turning roads, rapid turning roads

• Uphill and downhill roads

• Rough roads

• Narrow roads

• Tunnel entrances and exits

• Non-standard roads

• Roads without a median

In the following situations, if the vehicle is driving too fast relative to the vehicle ahead, Lane Centering Control (LCC) may be subject to limited control, which will result in an inability to maintain a safe distance in a responsive manner, which include but are not limited to:

• Sudden maneuvers of the vehicle ahead (such as sudden turns, acceleration, deceleration, etc.)

• Another vehicle abruptly cutting in or out of the front of your vehicle

• Your vehicle abruptly cutting in behind the vehicle ahead

• Your vehicle driving towards a stationary or slow-moving target at a high speed

It may not be able to provide sufficient braking force in the following situations, which include but are not limited to:

• The brake function cannot fully work (such as when brake parts are too cold, too hot, wet, etc.)

• Improper vehicle maintenance (excessive wear of the brake or tires, abnormal tire pressure, etc.)

• The vehicle is driving on special roads (such as uphill and downhill, water, mud, potholes, ice and snow roads, etc.)

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the Lane Centering Control (LCC) system. There are many factors that may interfere with the Lane Centering Control (LCC) system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Activating Adaptive Cruise Control

• Middle button : activate or exit Adaptive Cruise Control

• Up button: increase or resume the cruising speed

• Down button: decrease the cruising speed

• Left button: decrease the following distance

• Right button: increase the following distance

When the operating conditions of Adaptive Cruise Control are met, press the Middle button on the left side of the steering wheel to activate Adaptive Cruise Control.

Adaptive Cruise Control can be activated at the vehicle speed of 0-180 km/h (0-110 mph).

• If the vehicle speed is less than 30 km/h (20 mph), 30 km/h (20 mph) will be set as the cruising speed

• If the vehicle speed is higher than 30 km/h (20 mph) but not higher than 180 km/h (110 mph), the current vehicle speed will be set as the cruising speed

When Adaptive Cruise Control is activated, you can release the accelerator pedal to maintain the set cruising speed.

• If there is a vehicle ahead, Adaptive Cruise Control will adjust the speed of your vehicle according to the speed and distance of the vehicle ahead, and the maximum speed will not exceed the cruising speed

• When there is no vehicle ahead, Adaptive Cruise Control will quickly adjust the speed of your vehicle to the cruising speed

When driving by using Adaptive Cruise Control, you can depress the accelerator pedal hard at any time to take over your vehicle in a short amount of time. At this time, Adaptive Cruise Control will no longer respond to the target vehicle ahead, and your vehicle will be completely under your control. When you release the accelerator pedal, your vehicle will return to the cruising speed.

When Adaptive Cruise Control actively accelerates your vehicle, the accelerator pedal will not move. When Adaptive Cruise Control decelerates your vehicle, the brake pedal may move.

After you exit Adaptive Cruise Control by pressing the Middle button on the left side of the steering wheel or depressing the brake pedal, you can activate it again by pressing the Up button on the left side of the steering wheel, and you can restore the vehicle's speed to the previously set cruising speed. If you press the Up button on the left side of the steering wheel while depressing the accelerator pedal, the current speed will be set as the cruising speed. The maximum set speed is 180 km/h (110 mph).

Operating Conditions of Adaptive Cruise Control:

• The high-definition camera, LiDAR and radar function normally, and the field of vision is clear

• No components of Adaptive Cruise Control are faulty

• Your vehicle meets all safety conditions, such as:

  • Driver seating status

  • The driver's hands on the steering wheel

  • The driver has fastened the seat belt

  • All doors are closed

  • Your vehicle is in gear position D

  • The driver does not step on the brake pedal

  • Anti-lock brake system, traction control system and vehicle stability control system are not triggered

• The function cannot be activated when the steering angle of the steering wheel is too large

• The speed does not exceed 180 km/h or 110 mph

Deactivating Adaptive Cruise Control

Adaptive Cruise Control is deactivated when:

• The steering wheel button is pressed

• The brake pedal is depressed

In addition, when the conditions for Adaptive Cruise Control are not met, it will be automatically deactivated. You can take control of the vehicle immediately after Adaptive Cruise Control is deactivated.

After Adaptive Cruise Control is deactivated, the vehicle may slow down due to regenerative braking, and will not be able to maintain the set distance between itself and the vehicle ahead.

Adjusting Vehicle Speed with Adaptive Cruise Control

When Adaptive Cruise Control is active, go to the Settings page from the control bar at the bottom of the center display, tap Driver Assistance > Cruising Speed Adjustment, and select the appropriate way to adjust the cruising speed.

The cruising speed can be adjusted by:

• Short press to +1, long press to +5

  • Short press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed by 1 km/h

  • Long press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed to the closest 5 km/h increment, that is, if the speed is 82 km/h, long press the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h.

• Long press to +1, short press to +5

  • Long press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed by 1 km/h

  • Short press the Up or Down button on the left side of the steering wheel to increase/decrease the cruising speed to the closest 5 km/h increment, that is, if the speed is 82 km/h, short press the Up button on the left side of the steering wheel, and the speed will be increased to 85 km/h

The maximum set speed for Adaptive Cruise Control is 180 km/h, or 110 mph.

The minimum set speed for Adaptive Cruise Control is 30 km/h, but it allows the vehicle to decelerate to 0 km/h when following the vehicle ahead.

Adjusting Following Time and Distance with Adaptive Cruise Control

When Adaptive Cruise Control is active or in standby, the following time and distance can be adjusted in 5 levels.

• Press the Right button on the left side of the steering wheel to set the following time and distance to a farther setting

• Press the Left button on the left side of the steering wheel to set the following time and distance to a closer setting

Dynamic Environment Simulation Display

1. Set cruising speed

2. Target vehicle ahead

3. Following time and distance

4. Status ring of Adaptive Cruise Control

   • When the ring does not appear: Adaptive Cruise Control is not activated, or the conditions for activation are not met

   • When the ring is gray: Adaptive Cruise Control is in standby and can be reactivated

   • When the ring is white: Adaptive Cruise Control is active

When the dynamic environment simulation displays the above warning, it means that there is a risk of collision because the maximum deceleration available to Adaptive Cruise Control can no longer maintain the safe distance, and you need to take control of the vehicle immediately.

Following Start/Stop

When the vehicle stops when following the vehicle ahead under Adaptive Cruise Control

• If the vehicle ahead starts, Adaptive Cruise Control will follow it and actively start the vehicle as well. You need to pay attention to the surrounding environment at all times to prevent collision accidents from occurring;

• When the vehicle is stopped when following the vehicle ahead for no more than 5 minutes, starting while following is available under Adaptive Cruise Control;

• When the vehicle is stopped when following the vehicle ahead for over 5 minutes, Electronic Parking Brake (EPB) will be activated and Adaptive Cruise Control will be deactivated;

• If the system detects obstacles ahead that may affect driving, making it impossible to follow the vehicle ahead, you may, after checking the surroundings, reactivate Adaptive Cruise Control by stepping on the accelerator pedal

Intelligent Speed Limit Control

Once activated, when the vehicle is driving on a highway or overpass under Adaptive Cruise Control, it will alert you to change the speed limit when a change is detected in the road speed limit. You can manually confirm to keep the cruising speed consistent with the current road speed limit.

Go to the Settings page from the control bar at the bottom of the center display, and click Driver Assistance > Intelligent Speed Limit Control to turn this function on or off.

Overtaking Assist Provided by Adaptive Cruise Control

When the vehicle is in following mode under Adaptive Cruise Control, if you turn on the left turn light and steer the steering wheel in an attempt to overtake another vehicle, it will activate acceleration assist to accelerate up to the set cruising speed.

Overtaking Assist can be activated when:

• Adaptive Cruise Control is active and has detected a vehicle traveling in the same direction ahead

• The current vehicle speed is higher than 50 km/h, but not over the set cruising speed

• There is no lane marking or the lane marking is a dashed line on the side of the lane change

• The vehicle is at a safe distance from the vehicle ahead

• The hazard warning light is not on

• No malfunction with the turn light

When the above conditions are met, you can activate Overtaking Assist by toggling the left turn light lever to the bottom. When you turn the steering wheel to the left, Adaptive Cruise Control will maintain the distance between itself and the vehicle ahead, but will allow you to drive slightly closer than the set following distance. During a lane change, Adaptive Cruise Control will accelerate up to the set cruising speed without you stepping on the accelerator pedal.

Overtaking Assist function will be deactivated, but Adaptive Cruise Control will remain active, when:

• A lane change is completed

• Overtaking Assist has been active for too long

• The turn light lever is toggled back before the lane change

Precautions and Restrictions

The following situations may cause the camera to identify obstacles, affect the performance of Adaptive Cruise Control, or even cause deactivation, which include but are not limited to:

• Changed installation position of camera

• Blocked or dirty camera

• Reduced recognition capability due to dim surrounding environments, such as at dawn, dusk, night, or in a tunnel

• Sudden changes in ambient brightness, such as tunnel entrances or exits

• Large shadows cast by buildings, landscapes or large vehicles

• Camera directly exposed to light

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead that falls onto your vehicle

• Water, dust, micro-scratches, oil sludge, dirt, wiper, ice, snow, etc. on the windshield in front of the camera

• Wet roads

The following situations may cause the LiDAR to identify obstacles, affect the performance of Adaptive Cruise Control, or even cause deactivation, which include but are not limited to:

• Changed installation position of LiDAR

• Severe weather such as rain, snow, fog, haze

• Exhaust gas, water spray, snow or dust lifted up by the vehicle ahead

• Driving on wet or waterlogged roads

• Water, dust, transparent vehicle coverings, color-changing film, micro-scratches, oil sludge, dirt, ice, snowfall and other obstructions on the LiDAR window

• Overheating of the LiDAR caused by prolonged sun exposure

• Due to the limitation of LiDAR characteristics, in rare special cases, false alarms may occur for the traffic signs/high-speed anti-collision barrels in high-speed/elevated sections

The following situations may cause the radar to identify obstacles, affect the performance of Adaptive Cruise Control, or even cause deactivation, which include but are not limited to:

• Misplaced or blocked radar, or covered with mud, ice and snow, metal plates, tapes, labels, leaves, etc.

• The radar or the area surrounding it is impacted due to a vehicle collision, scratch, etc.

• Extreme weather such as heavy rain, snow, fog, which may affect radar performance

• Due to the limitation of radar target recognition characteristics, in rare special circumstances, false alarms may occur for some metal barriers, green belts, cement walls, etc.

The vehicle will only respond to Adaptive Cruise Control when the conditions are met The targets below may not be identified, and may trigger a response, which include but are not limited to:

• Transverse vehicles

• Motorcycles, tricycles

The targets below will not trigger a response, which include but are not limited to:

• Pedestrians

• Animals

• Traffic lights

• Walls

• Roadblocks

• Oncoming vehicles

• Bicycles

• Other non-vehicle objects

The following situations may cause late recognition and response in Adaptive Cruise Control because the target is not directly ahead, which include but are not limited to:

• Adaptive Cruise Control will not respond to targets in the sensor blind zone. For example, Adaptive Cruise Control cannot detect the blind spots at the corners of the vehicle and the blind spots on the sides of the vehicle

• When approaching or turning along a road, some targets may be mis-selected or missed, resulting in unexpected acceleration and deceleration of the vehicle

• When going uphill, it may miss a target or misjudge the distance between itself and the vehicle ahead. When going downhill, it may accelerate the vehicle, causing it to exceed the cruising speed

• When only part of the body of a vehicle in the adjacent lane cuts in front of your vehicle (especially when it’s a larger vehicle cutting in, like a bus, truck, etc.), it may not be able to recognize the target in a responsive manner and require you to take control in time

• When your vehicle abruptly cuts into the rear of the vehicle ahead, or another vehicle abruptly cuts into or out of the front of your vehicle, it may not be able to recognize the target in a responsive manner and require you to take control in time

When driving in special or complex road conditions, it is not recommended to activate Adaptive Cruise Control because it may affect the performance of Adaptive Cruise Control, or even cause deactivation, which include but are not limited to:

• Waterlogged roads, muddy roads, potholes, ice- and snow-covered roads, roads with speed bumps, roads with obstacles

• Traffic conditions with a lot of pedestrians, bicycles or animals

• Complex and changeable traffic conditions, such as busy intersections, expressway ramps, congested roads

• Winding and turning roads, rapid turning roads

• Uphill and downhill roads

• Rough roads

• Narrow roads

• Tunnel entrances and exits

• Non-standard roads

• Roads without a median

In the following situations, if the vehicle is driving too fast relative to the vehicle ahead, Adaptive Cruise Control may be subject to limited control, which will result in an inability to maintain the safe distance in a responsive manner, which include but are not limited to:

• Sudden maneuvers of the vehicle ahead (such as sudden turns, acceleration, deceleration, etc.)

• Another vehicle abruptly cutting in or out of the front of your vehicle

• Your vehicle abruptly cutting in behind the vehicle ahead

• Your vehicle driving towards a stationary or slow-moving target at a high speed

It may not be able to provide sufficient braking force in the following situations, which include but are not limited to:

• The brake function cannot fully work (such as when brake parts are too cold, too hot, wet, etc.)

• Improper vehicle maintenance (excessive wear of the brake or tires, abnormal tire pressure, etc.)

• The vehicle is driving on special roads (such as uphill and downhill, water, mud, potholes, ice and snow roads, etc.)

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the Intelligent Adaptive Cruise Control system. There are many factors that may interfere with the Intelligent Adaptive Cruise Control system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Enable/Disable the Auto High Beams (AHB)

1. Go to the Settings page from the control bar at the bottom of the center display, and tap Light > Headlights. Select to turn on the Automatic Headlights.

2. Go to the Settings page from the control bar at the bottom of the center display, and tap Light > Auto High Beams (AHB) to enable or disable this function.

3. When the Auto High Beams (AHB) are enabled:

   Push the light control lever forward to activate the Auto High Beams (AHB) function.

   Push the light control lever forward or pull it backward again to enter the standby status of the function.

4. When the Auto High Beams (AHB) are disabled:

   Push the light control lever forward to turn on the high beam headlights.

   Push the light control lever forward or pull it backward again to turn off the high beam headlights.

Automatic control may not be performed under, but also not be limited to, the following situations:

• Turn on the turn light.

• Turn the steering wheel hard.

• Pass a sharp turn.

• The wiper is set to its maximum speed.

• The fog lights are on.

Only targets that satisfy the conditions will be responded to by the Auto High Beams (AHB). The targets below will not trigger a response, which include but are not limited to:

• Pedestrians

• Cyclists (including but not limited to bicycles, motorcycles, electric bikes, tricycles, etc.)

• Other non-vehicle objects

The above warnings do not cover all conditions that may affect the proper operation of the Auto High Beams (AHB) system. There are many factors that may interfere with the Auto High Beams (AHB) system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Activating Shiftless Automatic Parking Assist with Fusion (S-APA with Fusion)

S-APA with Fusion parks the vehicle as follows:

1. Parking space search: Enter the Dual-view Image interface and open Parking Space Search. Drive forward slowly at a speed of less than 16 km/h, and stop after the digital instrument cluster shows that a parking space has been found. Keep the brake on, check and choose a safe and suitable parking space;

   • Manual parking space search: Enter the Dual-view Image interface and open Parking Space Search. Drive forward slowly at a speed of less than 16 km/h, and stop after the digital instrument cluster shows that a parking space has been found. Keep the brake on, check and choose a safe and suitable parking space;

   • Auto parking space search: When the road conditions and system conditions are met, drive forward slowly at a speed of less than 16 km/h. When a parking space is found in the background, the Parking Assist button will appear on the Map page. Touch the button and stop the vehicle according to the text prompts on the page. Keep the brake on, check and choose a safe and suitable parking space;

2. Parking: Select a safe and suitable parking space, and park the vehicle according to the text prompts on the interface. Keep checking the surroundings to ensure that the vehicle is parked safely;

3. Parking completed. The Dual-view Image interface will prompt Parking Completed.

Details are as follows:

1. Parking Space Search

   Before searching for a parking space, the vehicle must meet the following conditions:

   • The vehicle speed is lower than 16 km/h

   • The vehicle is in the D or R gear position

   • All doors are closed

   • Driver seating status

   • ACC/LCC not enabled

   • Ultrasonic sensors and surround-view cameras functioning properly with a clear view

   • No system error

   • Anti-lock brake system, traction control system and vehicle stability control system are not triggered

   • Traction control system, vehicle stability control system are not disabled

   • Not available in ECO+ Mode

   When the above conditions are met, you can initiate Parking Space Search in any of the following ways:

   • Where the parking camera is off, say a command like “I want to park” or “Park the vehicle” to wake up NOMI, which will open the Dual-view Image interface directly and enter Parking Space Search

   • Swipe right on the main page of the center display to enter the Quick Settings page, tap Parking Assist, enter the Dual-view Image interface and open Parking Space Search

   • Put your vehicle in Reverse, enter the image interface, and tap the button in the upper left corner to open Parking Space Search

   • Tap the parking camera to enter the 360° image interface, tap the button in the upper left corner to open Parking Space Search

   After turning on Parking Space Search, keep the vehicle at a distance of 0.5m to 1.5m to the target parking space, and drive forward slowly at a speed of less than 16 km/h to search for a parking space.



   During the search for a parking space, when a white “P” appears on the left or right side of your vehicle on the screen, it means that the system has found a parking space on the corresponding side. If a “P” appears on both sides, it means that the system has found parking spaces on both sides.

   Stop the vehicle at this time, keep the brake on, and check whether the parking space is safe and suitable. If multiple parking spaces are found, you can manually select the appropriate parking space on the Dual-view Image interface.

   Note 开始搜索车位后，若爱车挂入 R 挡并后退，车位搜索将保持。

   After the vehicle starts searching a parking space, if you shift into REVERSE and reverse the vehicle, it will continue searching.

   Caution 若车速大于约16 公里/小时，车位搜索会退出。

   When the vehicle's speed is above 16 km/h, the parking space search will be canceled.

   Caution 若搜索车位时，车辆前进方向与道路方向偏角过大，会影响最终泊车的效果。

   When searching for parking spaces, parking may not be successful if the vehicle’s direction has significantly deviated from the direction of the road.

   Caution 狭窄通道上的泊车空位或者狭窄的泊车空位可能不会被选为停车位，因为不具备必要的操作空间。视觉融合泊车辅助功能不支持在车位内开启车位搜索，并且进行移库的操作。

   Parking spaces on narrow roads or spaces that are too narrow may not be selected due to a lack of space.

   Shiftless Advanced Parking Assist with Fusion does not support parking space search and lateral shift in a parking space.

   Caution Semi-Automatic Parking Assist can be used to identify the barrier-free parking space sign in the parking space. After successful identification, the barrier-free parking space will display the corresponding icon in the parking space page at the lower left. The identification of the barrier-free sign in the non-parking space, such as erected metal plates and text signs, is not supported now. In addition, this type of parking space may be misidentified. Please select a parking space as required according to the actual situation.

   Semi-Automatic Parking Assist can be used to identify the barrier-free parking space sign in the parking space. After successful identification, the barrier-free parking space will display the corresponding icon in the parking space page at the lower left. The identification of the barrier-free sign in the non-parking space, such as erected metal plates and text signs, is not supported now. In addition, this type of parking space may be misidentified. Please select a parking space as required according to the actual situation.

   Warning 您必须始终自行检查并确认系统搜索到的停车位安全且合适泊车，切勿依赖视觉融合泊车辅助搜索合适的停车位。不可在高速路段以及城市快速路段使用该功能。不可在拖挂模式下使用该功能。

   • You must always check and confirm if the detected parking space is safe and suitable for parking. Do not rely solely on Shiftless Advanced Parking Assist with Fusion to search for suitable parking spaces.

   • This feature is not available on high-speed roads and urban expressways.

   • Never use this feature in the Trailer Mode.

   • The system may misidentify parking spaces on roads, at entrances, in bushes, etc. You need to determine if the parking space is suitable.

   • Shiftless Advanced Parking Assist with Fusion cannot determine if the detected parking space is legitimate. You need to confirm the legitimacy before starting the parking procedure.

2. Parking

   Select a safe and suitable parking space, release the steering wheel and brake pedal according to the text prompts on the page, then initiate S-APA with Fusion. During the parking process, the interface will display the current gear and the remaining length of the route in this gear as a reference. Keep checking the surroundings to ensure the safety of the parking process.

   After selecting a parking space, you can de-select it by tapping the space again before releasing the brake pedal.



   When the vehicle is parked, the “P” on the left or right side of the vehicle in the digital instrument cluster will turn green.

   Caution 请在车辆提示“请松开刹车和方向盘”后，再释放制动踏板，以免泊车功能退出，车辆后退。

   Please only release the brake pedal when you receive the prompt “Release the brake pedal and the steering wheel” on the center display. Otherwise, Shiftless Automatic Parking Assist will cancel and the vehicle will move backwards.

   Warning 释放制动踏板前，请确保双手和手臂不在方向盘轮廓和运行范围内，以免方向盘快速转动导致受伤 。但请随时准备通过踩下制动踏板暂停功能或接管车辆。

   Before releasing the brake pedal, make sure that your hands and arms do not interfere with the steering wheel to avoid any injuries caused by its rapid movement. When parking, always be prepared to apply the brakes to pause the process or take over.

   Warning 在狭小场地使用视觉融合泊车辅助功能，限制了传感器准确检测障碍物位置的能力，可能导致车辆或周围物体损坏的风险上升。

   Initiating Shiftless Advanced Parking Assist with Fusion in a narrow parking space may affect the performance of the sensors, which can increase the risk of damaging the vehicle or surrounding objects.

   Warning 泊车过程中，您作为行车安全负责人，需实时关注车辆周边环境，确保泊车过程的安全，并做好随时接管车辆的准备。尤其需要重点关注周围是否有行人、儿童、动物，和其他细、尖、矮、悬空等超声波传感器检测受限的障碍物。

   You are responsible for driving safely. Always pay attention to your surroundings when parking, ensure that the parking process is safe, and be prepared to take over at any time. In particular, you should pay special attention to pedestrians, children, or animals near your vehicle, and other fine, pointed, low, or suspended obstacles the ultrasonic sensors may not be able to detect.

   Any retrofits or modifications made to the steering wheel, including but not limited to steering wheel cover, steering wheel modification, and counterweight ring, will increase the parking risk caused by failed or affected Shiftless Advanced Parking Assist with Fusion.

   The center display only shows available parking spaces that Shiftless Automatic Parking Assist is capable of parking in, which are subject to both the size of the parking space and its surroundings. If you spot any obstacles that suddenly appear around the car while parking, take over immediately as the system may not apply the brakes in time.

3. Parking Completed



   The vehicle is properly parked when the Dual-view Image interface prompts “Parking Completed”, and the “P” on the left or right side of the vehicle in the digital instrument cluster turns green.

   After parking, you may need to make further adjustments to the vehicle in order to ensure that the vehicle is in the best parking position.

   Before leaving, make sure that the electronic parking brake is activated and the vehicle is in Park.

   Caution 受周围环境影响，系统可能会提前完成泊车，需要您酌情调整车辆位置。

   Parking may be finished in advance due to the surroundings. In this case, you may need to adjust the vehicle’s position manually.

Pausing Parking

During the process of parking under S-APA with Fusion, you can lightly step on the brake pedal to slow the vehicle down without disengaging the feature; only when you keep stepping on the brake pedal until the speed is reduced to 0 km/h, will the feature be suspended. In addition, stepping on the accelerator pedal during parking will also suspend the parking.

If you actively intervene with the steering wheel, the parking feature will be suspended.

Intervention includes, but is not limited to, the process of perpendicularly backing into a parking space with S-APA with Fusion active, if the system detects that there may be a safety risk or the parking result cannot be guaranteed, the system will pause parking and ask you whether to continue parking.

After parking is paused, check the surroundings to ensure that it is safe to continue parking, then release the brake pedal, and tap the “Resume Parking” button on the center display to re-activate S-APA with Fusion.

Deactivating Shiftless Automatic Parking Assist with Fusion (S-APA with Fusion)

You can deactivate the parking operation process manually in the following ways. Take over control of the speed and direction of your vehicle after actively disengaging S-APA with Fusion:

• Step on the brake pedal and shift gears

• When S-APA with Fusion is suspended, tap the “Stop Parking” button on the Dual-view Image interface

• Actively exit the Dual-view Image interface

In addition, when S-APA with Fusion is active, the following situations will cause the ongoing parking to stop, requiring you to take control of the vehicle in time:

• Too close to an obstacle

• Front trunk, tailgate or any door is open

• Electronic parking brake is activated

• Anti-lock brake system, traction control system and vehicle stability control system triggered

• Driver leaves seat

• S-APA with Fusion has been suspended for more than about 30 seconds

• Too many front and rear adjustments

• The overall parking process has timed out

• System fault

When S-APA with Fusion is deactivated abnormally, the “P” on the left or right side of the vehicle in the digital instrument cluster will turn red.

Precautions and Restrictions

S-APA with Fusion may not be able to function as expected when the vehicle is driving under the following road conditions, which include but are not limited to:

• Do not activate S-APA with Fusion when the road surface is slanted or sloped. S-APA with Fusion is only designed for use on road surfaces with no gradients.

• Do not activate S-APA with Fusion if the road surface is uneven or there are steps on the road. S-APA with Fusion is designed for use on flat roads only.

• Do not activate S-APA with Fusion if there is water, mud, potholes, ice and snow, speed bumps, and obstacles on the road.

• Do not activate S-APA with Fusion if the curb material is special or cannot be detected. If parked improperly, the tires and rims of the vehicle are at risk of being damaged by the curb, and you need to promptly take control of the vehicle.

• When the road surface is slanted or the slope is beyond the supported range, the success rate of S-APA with Fusion cannot be guaranteed.

• If the angle of the slanted parking space exceeds the supported range, the parking space will not be released, and the success rate for parking cannot be guaranteed.

Ultrasonic sensors may have limited detection of the following obstacles, requiring you to be ready to take control of the vehicle at any time, so as to prevent property damage or personal injury, which includes but is not limited to:

• Pedestrians, children, animals, etc.

• Thin, pointed, short, and suspended obstacles, such as ground locks, low stone piers, low cylinders, thin rods, sharp objects, etc.

• Wall corners, parking lot columns, etc.

Ultrasonic sensors may have limited detection in the following situations, resulting in S-APA with Fusion being unable to function or not functioning as expected, which includes but is not limited to:

• One or more ultrasonic sensors are damaged, misplaced, or obscured (such as by mud or ice)

• Severe weather like rain, snow, fog, and haze affect the performance of ultrasonic sensors

• Sensors are affected by other electrical equipment or installations that can cause interference

The surround-view camera may have limited detection in the following situations, resulting in S-APA with Fusion being unable to function or not functioning as expected, which includes but is not limited to:

• The left and right exterior rearview mirrors or the front and rear of the vehicle are damaged, resulting in an abnormal position of the surround-view camera

• The surround-view camera is soiled (such as by mud or ice) or obscured

• Under strong sunlight or dappled tree shade

• Reflective ground or water on the ground

• Poor lighting conditions (dark), strong reflection from the ground, or poor visibility (heavy rain, heavy snow, dense fog)

• A parking space of an unconventional size (too narrow or too wide), or a tile-paved parking space

• Worn, unclear, covered, or overlapping parking space lines

• Cylindrical, square and other shaped pillars near the parking space

• Parking space at a corner

• The system may not be able to judge and exclude parking spaces with no-parking markings, cones, restricted-stop signs, ground locks, or other special parking spaces

• The system may not be able to exclude parking spaces with obstacles, such as pedestrians, bicycles, tricycles, low debris, bricks, etc.

S-APA with Fusion may not be able to function as expected when the vehicle is driving in the following situations, which include but are not limited to:

• Any addition or modification of the steering wheel, which will increase the risk of parking and may cause the S-APA with Fusion to not work, or not function as expected, which includes but is not limited to: installing a leather steering wheel cover, or modifying the steering wheel or weight ring, etc.

• Do not activate S-APA with Fusion if a trailer is attached to the rear of the vehicle.

• Do not activate S-APA with Fusion if the vehicle is fitted with snow chains or a spare wheel.

• Do not activate S-APA with Fusion if a loaded object protrudes into the area surrounding the vehicle.

• Non-original tires or low tire pressure will affect the driving trajectory of S-APA with Fusion. When S-APA with Fusion is active, make sure the tires are original and properly inflated.

• After changing the tire size and specifications, you need to update the relevant parameters at the After-sales Services. Currently only the tire models specified by us are supported; any modification of the vehicle's tire size and specifications may affect parking performance.

S-APA with Fusion may not be able to function as expected due to the following target parking space conditions, which include but are not limited to:

• The target parking space is adjacent to the roadside fence, high walls, street lights, trees, bushes, pillars, suspended obstacles such as railings, distribution boxes, chargers, etc., which will affect the final parking effect and may even cause vehicle damage.

• The target parking space is on a curve, which will affect the final parking effect.

• Do not activate S-APA with Fusion when the target parking space is at an angle.

• Do not activate S-APA with Fusion when there are obstacles such as unlocked ground locks, cones, shopping carts, and lampposts in the target parking space.

Do not activate S-APA with Fusion when the following conditions may lead to poor vision of the observed environment while driving, which include but are not limited to:

• Any one of the left and right exterior rearview mirrors is blurred, damaged or in an abnormal position.

• The surround-view camera is blurry, damaged, or in an unusual position.

• Inclement weather (rain, snow, fog, haze, etc.) results in poor visibility.

• Poor vision at night or due to insufficient light.

Do not activate S-APA with Fusion repeatedly in the following situations, which include but are not limited to:

• After vigorous driving or repeated parking operations, which may trigger overheating protection of the steering system. Do not activate S-APA with Fusion for prolonged periods of time or repeatedly.

The above warnings, precautions and restrictions have not fully covered all the situations that may affect the normal operation of the S-APA with Fusion system. There are many factors that may interfere with the S-APA with Fusion system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Park into the Power Swap Station

After tapping the "Activate Power Swap Process" button, please enter the starting area for the power swap in the specified direction at a speed lower than 18 km/h according to the vehicle's instructions.

After entering the starting area for the power swap, when the dynamic environment simulation displays and NOMI plays a voice prompt saying that the vehicle has been successfully located, please press the brake pedal to keep the vehicle stationary and wait for positioning detection.

Make sure your seat belt is fastened and the door is closed while you wait in the starting area.

Tap the "Assist in Parking Into the Power Swap Station" button. When you see "Please release the brake and steering wheel", follow the instructions to start parking in the Power Swap Station.

• Parking will be suspended if obstacles are detected during the process.

• If parking is suspended due to systemic reasons or active intervention during the process, please confirm that there are no obstacles in the surrounding area and manually resume the parking.

If you are unable to continue parking, you can select "Terminate Parking", and the on-site specialist will manually swap power for the vehicle after you quit. If the Power Swap Station is unattended, users can choose to park automatically or manually again, or contact the specialist.

After parking is completed, swap power for the vehicle as instructed on the page.

Start/End the Power Swap

After parking successfully in place, it will automatically enter the one-button Power Swap process. Please read the instructions on the vehicle's screen carefully and tap to start the power swap.

The vehicle will automatically adjust to the power swap status, and switch off the screen to start the power swap.

After the power swap is completed, the vehicle's screen will light up to indicate that the power swap has been completed. At this time, it can drive away from the Power Swap Station without any problems.

The above warnings and precautions have not fully covered all the conditions that may affect the normal operation of the Power Swap with Assisted Parking (PSAP) system. There are many factors that may interfere with the Power Swap with Assisted Parking (PSAP) system. In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions.

Enable/Disable Side Distance Indication System (SDIS) Function

The Side Distance Indication System (SDIS) function can be enabled or disabled by the settings button on the parking camera interface. When the Side Distance Indication System (SDIS) is enabled, different layout styles can be selected, such as dual-view, full-screen, and picture-in-picture.

When the following working conditions are simultaneously satisfied, the parking camera interface will be automatically activated:

• Vehicle in D gear

• The speed does not exceed 21 km/h

• There are obstacles in any of the areas ahead and they are close to the vehicle.

Area and Range of the Side Distance Indication System (SDIS)

You can click on the upper right side of the parking camera interface and select to turn off the warning tone. At the same time, you should bear all the risks caused by turning off the warning tone.

Automatic exit of the parking camera interface:

• When the obstacle is more than 4.5 seconds away from the vehicle, the parking camera interface will automatically exit.

• When the Side Distance Indication System (SDIS) is turned off by tapping the blank area of the parking camera or grabbing the screen with five fingers, it can be temporarily disabled for 3 minutes, and normal use can be resumed 3 minutes later.

• When the vehicle's speed exceeds 21 km/h, the Side Distance Indication System (SDIS) will return to normal use.

• When the working conditions for the Side Distance Indication System (SDIS) function are satisfied again, the parking camera interface will be automatically activated.

The above warnings do not cover all conditions that may affect the proper operation of the Side Distance Indication System (SDIS). There are many factors that may interfere with the Side Distance Indication System (SDIS). In order to prevent accidents from occurring, you need to drive attentively and focus on the traffic, road, and vehicle conditions to ensure safe driving.

Daily Inspection

Conducting daily vehicle inspections is very important to ensure driving safety and reduce vehicle failures. Please check the following items on a daily basis. If you identify any problems, contact NIO immediately to conduct relevant inspections.

• Check whether all exterior lights, speakers, turn signals, and hazard warning lights are working properly.

• Check whether the windshield wipers and washer system are working properly.

• Check whether the braking system is working properly.

• Check whether the seat belts are working properly.

• Check if there are any warning indicators or information on the instrument cluster and the center display.

• Check the tire pressure and tread wear of each tire.

• Check whether there are any abnormal fluids under the vehicle (water condensation from the air conditioning system is normal).

• When driving, check if there are any unusual noises such as bump or crash sound from the underbody.

• Check the vehicle body for contaminants that may damage the paint (such as bird droppings, resin, road tar, insects, or industrial dust), If any, please clean them as instructed in "Exterior Cleaning".

• Check the areas around the roof LiDAR sensor, HD cameras and surround view cameras for contaminants. If any, please clean them as instructed in "Exterior Cleaning".

• Replace the battery of the smart key fob as instructed on the center display.

Regular Maintenance

In normal driving conditions, please contact NIO to have your vehicle maintained according to the following service items and intervals:

• Gearbox oil: Replace it every 200,000 kilometers.

• Brake fluid: Replace it every 36 months.

• Coolant: Check the coolant at the 5th year or 100,000 kilometers (whichever comes first) at the latest, and replace it if necessary.

  If the coolant has not been replaced, check it every 24 months or 40,000 kilometers (whichever comes first), and replace it if necessary. If the coolant has been replaced, check the new coolant at the 5th year or 100,000 kilometers (whichever comes first), and replace it if necessary.

  If the vehicle is used in extremely cold weather (below -30℃), check the coolant and replace it if necessary.

• Brake pads: Check the brake pads for wear at the 5th year or 100,000 kilometers (whichever comes first) at the latest, and replace them if necessary.

  If the brake pads have not been replaced, check them every 24 months or 40,000 kilometers (whichever comes first), and replace them if necessary. If the brake pads have been replaced, check them for wear at the 5th year or 100,000 kilometers (whichever comes first), and replace them if necessary.

• Brake discs: Check the brake discs for wear at the 10th year or 200,000 kilometers (whichever comes first) at the latest, and replace them if necessary.

  If the brake discs have not been replaced, check them every 24 months or 40,000 kilometers (whichever comes first), and replace them if necessary. If the brake discs have been replaced, check the brake discs for wear at the 10th year or 200,000 kilometers (whichever comes first), and replace them if necessary.

Unscheduled Maintenance

It is recommended to contact NIO to have your vehicle maintained as needed, depending on the condition of your vehicle and the instructions on the central display:

It is recommended to contact NIO for a full vehicle health check as needed, depending on the operating environment and condition of your vehicle.

Special Maintenance

If you often drive your vehicle in the following harsh environments, additional maintenance or shorter service intervals may be required. For details, please contact NIO.

High Voltage Battery Maintenance
